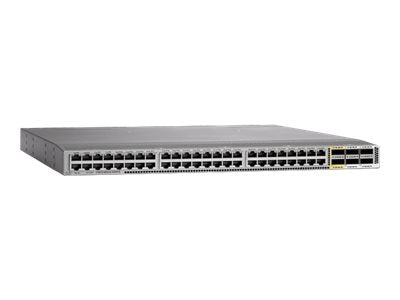

Cisco N2K-C2348TQ8F-E | Nexus 2300 48-Port 10GBASE-T FEX, 6x 40G, 8 BiDi/FET Bundle

SKU:N2K-C2348TQ8F-E

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 2348TQ-E is a 1RU 10GBASE-T fabric extender in the Nexus 2300 platform. It acts as a remote line card for a parent Nexus switch and suits top-of-rack or end-of-row server access in data centres. It is a cost-optimised option for migrating from 1G to 10GBASE-T over copper, and it supports FCoE.

There are 48 RJ-45 host ports running 100M, 1G or 10GBASE-T, with six 40G QSFP+ fabric uplinks (24 x 10G). Fabric bandwidth is up to 240 Gbps in each direction, hardware forwarding is 1440 Gbps or 2160 mpps, and oversubscription is up to 2:1. This SKU is the bundle with 8 BiDi or 4 FET-40G plus 16 FET-10G transceivers, with a choice of airflow and power supply at order time. Redundant 1+1 hot-swap power supplies and 2+1 hot-swap fans are fitted, in forward or reverse airflow.

The FEX is managed from its parent switch running NX-OS, so no separate licence is needed for the FEX itself. Supported parents are Nexus 5500/5600, 6000 Series and Nexus 9300/9500. Fabric uplinks work with QSFP-40G-SR-BD BiDi, QSFP-40G-SR4, QSFP-40G-LR4, QSFP-40G-CSR4 and FET-40G optics, plus QSFP+ active twinax, AOC and 4x10G breakout cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 48 host ports supporting 100 Mbps, 1G and 10GBASE-T
- Six 40G uplinks that support BiDi optics, so existing cabling can be reused with lower power and cost
- FCoE support
- Forward and reverse airflow options with colour-coded handles on fans and power supplies
- Hot-swappable 1+1 redundant power supplies and 2+1 redundant fans
- Managed centrally from the parent Nexus switch as a remote line card

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Host ports: 48 x 100M/1/10GBASE-T, RJ-45
- Fabric interfaces: 6 x 40G QSFP+ (24 x 10G)
- Fabric speed: up to 240 Gbps each direction (480 Gbps full duplex)
- Oversubscription: up to 2:1
- Performance: hardware forwarding at 1440 Gbps or 2160 mpps
- FCoE: supported up to 30 m with Cat 6a and 7 cabling
- Parent switches: Nexus 5500/5600, 6000 Series, 9300/9500
- Minimum software: NX-OS 7.3(0)N1(1) on 5500/5600/6000, NX-OS 9.2.1 on 9300/9500
- Fabric distance: up to 10 km to Nexus 5500, up to 3 km to Nexus 5600/6000
- Power supplies: N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, N2200-PDC-350W-B
- Fan modules: NXA-FAN-30CFM-F and NXA-FAN-30CFM-B, 2+1 redundancy
- Typical power draw: 280 W at 30 m, 350 W maximum
- Heat dissipation: 952 BTU/hour typical, 1190 BTU/hour maximum
- AC PSU input: 90 to 264 V AC, 50-60 Hz, 400 W max output
- DC PSU input: -40 to -72 V DC
- Dimensions (H x W x D): 4.37 x 43.94 x 43.36 cm (1RU)
- Weight: 8.0 kg
- Operating temperature: 0 to 55 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95 percent, non-condensing
- Altitude: 0 to 3000 m

FAQs

Q: Does the 2348TQ-E need a licence?
A: No separate licence is needed for the FEX itself. It is managed by the parent Nexus switch running NX-OS.

Q: Which parent switches does it work with?
A: Nexus 5500 and 5600 platforms, Nexus 6000 Series, and Nexus 9300 and 9500 Series. Minimum software is NX-OS 7.3(0)N1(1) on 5500/5600/6000 and NX-OS 9.2.1 on 9300/9500.

Q: What power supplies does it use?
A: It uses two 1+1 redundant hot-swap supplies: N2200-PAC-400W or N2200-PAC-400W-B for AC, N2200-PDC-400W or N2200-PDC-350W-B for DC. Typical draw is 280 W, with 350 W maximum.

Q: Which optics and cables work on the 40G uplinks?
A: QSFP-40G-SR-BD, QSFP-40G-SR4, QSFP-40G-LR4, QSFP-40G-CSR4 and FET-40G optics, QSFP-H40G-ACU7M/10M active twinax, QSFP-H40G-AOC1M to 15M, QSFP-4X10G-AOC breakouts and QSFP-4x10G-AC7M/10M.

Q: How does this SKU differ from other 2348TQ-E variants?
A: This SKU is the bundle with 8 BiDi or 4 FET-40G plus 16 FET-10G transceivers, with a choice of airflow and power supply at order time.
