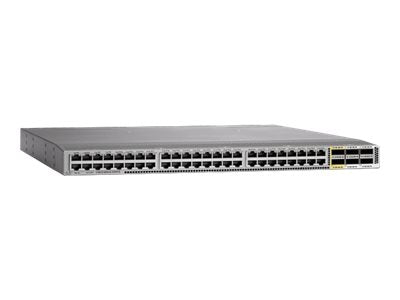

• Cisco N2K-C2348TQ8F silver switch with 48x 10G ports and 6x 40G uplinks
1 1

Cisco

Cisco N2K-C2348TQ8F | 48x 100M/1/10GBASE-T (RJ45), non-PoE | 6x 40G QSFP+ uplinks | license-free FEX

N2K-C2348TQ8F

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Nexus 2348TQ Fabric Extender delivers 48x 10GBASE-T server-facing ports with six QSFP+ fabric uplinks, extending your parent Nexus switch into the rack for simplified operations. This 1RU platform features dual hot-swap PSUs, three hot-swap fans, and selectable airflow, with QSFP+ ports supporting 40G or 4x10G breakout where supported. This bundle includes 8x Fabric Extender Transceivers (FET) for short-reach fabric connections to the parent.

Features

- High-density 48-port 10GBASE-T for rack-level server aggregation
- Six QSFP+ fabric uplinks for scalable bandwidth to the parent fabric
- Includes 8x FET optics for cost-effective, short-reach fabric links
- Managed entirely from the parent Nexus for operational simplicity
- Supports 40G or 4x10G breakout on QSFP+ (where supported)
- Redundant hot-swappable power and cooling with selectable airflow
- Optimized for data center top-of-rack FEX deployments
- License-free hardware; leverage capabilities licensed on the parent

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

FAQs

Technical Specifications

FAQs

Q: What parent switches are compatible?
A: Nexus 5K/6K/7K/9K models that support FEX with appropriate NX-OS versions. Verify release notes for specific compatibility.

Q: Does this unit provide PoE on the RJ45 ports?
A: No. The 10GBASE-T host ports are non-PoE.

Q: Can the QSFP+ uplinks be split into 4x10G?
A: Yes, on supported parents and optics, QSFP+ ports can be channelized into 4x10G using breakout cables or optics.

Q: Is any license required on the FEX itself?
A: No. The FEX is license-free; features and licenses apply on the parent Nexus.

Q: What airflow options are available?
A: Both port-side intake and port-side exhaust configurations are available. Ensure fans and PSUs match the desired airflow direction.

Q: What is included in this 8F bundle?
A: It includes 8 x Fabric Extender Transceivers (FET) for the fabric uplinks, along with 2 PSUs and 3 fan modules.

Q: Can I dual-home this FEX to two parent switches?
A: Yes. Use vPC to dual-home uplinks to two parents for active-active redundancy.

Technical Specifications

- Host ports: 48 x 100M/1/10GBASE-T (RJ45), auto-negotiation
- Fabric uplinks: 6 x 40G QSFP+ (supports 40G or 4x10G breakout where supported)
- Included optics: 8 x Fabric Extender Transceivers (FET) for short-reach fabric links
- Architecture: Fabric Extender (remote line card) managed by parent Nexus; no standalone switching
- Management: Single point via parent NX-OS; supports vPC dual-homing for redundancy
- Power: 2 x hot-swappable AC PSUs (redundant)
- Cooling: 3 x hot-swappable fans; selectable front-to-back or back-to-front airflow
- Form factor: 1RU rack-mount
- PoE: Not supported on 10GBASE-T host ports
- Licensing: No local feature licenses; features enforced on parent switch
- Optic options: QSFP+ SR4/LR4/BiDi and Cisco FET-40G for fabric; QSFP+ to 4x10G breakout supported where applicable
- Use case: Top-of-rack server aggregation extending Nexus 5K/6K/7K/9K fabrics
