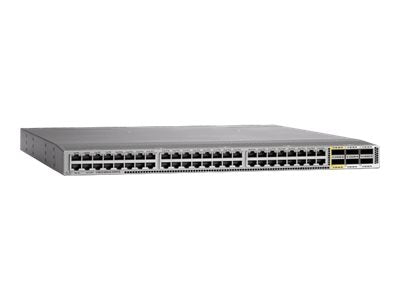

Cisco N2K-C2348TQ12F-E | Nexus 2348TQ-E 48-Port 10G-T Fabric Extender, 12x FET

SKU:N2K-C2348TQ12F-E

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 2348TQ-E is a cost-optimised 10GBASE-T fabric extender from the Nexus 2300 platform. It acts as a remote line card of a parent Nexus switch, extending top-of-rack or end-of-row server access in the data centre. It suits teams migrating server connectivity to 10GBASE-T copper while keeping management centralised on the parent switch.

Host connectivity is provided by 48 RJ-45 ports supporting 100M, 1G and 10GBASE-T. Six 40G QSFP+ fabric interfaces (24 x 10GE) link to the parent, giving up to 240 Gbps in each direction with up to 2:1 oversubscription and hardware forwarding at 1440 Gbps. This SKU is the bundle that includes 12 Fabric Extender Transceivers (FET) for the uplinks. It supports FCoE up to 30 m over Category 6a and 7 cabling. Redundancy comes from two hot-swappable 1+1 power supplies and three hot-swappable fans, with typical draw of 280 W.

Parent switches are Nexus 5500/5600, Nexus 6000 and Nexus 9300/9500 Series, running NX-OS 7.3(0)N1(1) or later on 5500/5600/6000 and 9.2.1 or later on 9300/9500. The fabric uplinks also accept QSFP-40G-SR-BD BiDi, SR4, LR4 and CSR4 optics, active Twinax and AOC cables, and the CVR-QSFP-SFP10G adapter.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cost-optimised platform suited to migration to 10GBASE-T
- Supports 100 Mbps, 1G and 10G Ethernet host environments
- 40G fabric uplinks support BiDi optics, allowing reuse of existing duplex fibre cabling
- FCoE support
- Forward (port-side exhaust) and reverse (port-side intake) airflow options
- Hot-swappable 1+1 power supplies and N+1 hot-swappable fans
- Managed centrally from the parent Nexus switch with no separate management plane

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Host interfaces: 48 x 100M/1/10GBASE-T, RJ-45
- Fabric interfaces: 6 x 40 Gigabit Ethernet QSFP+ (24 x 10GE)
- Fabric speed: up to 240 Gbps each direction (480 Gbps full duplex)
- Oversubscription: up to 2:1
- Performance: hardware forwarding at 1440 Gbps or 2160 mpps
- FCoE: supported up to 30 m with Category 6a and 7 cables
- Transceivers: 12 x Fabric Extender Transceivers (FET) included in this SKU
- Power supplies: 2 x 1+1 redundant, hot-swappable (N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, N2200-PDC-350W-B)
- Fan modules: 3 hot-swappable, N+1 (NXA-FAN-30CFM-F, NXA-FAN-30CFM-B)
- Typical power: 280 W at 30 m (maximum 350 W)
- Heat dissipation: 952 BTU/hour typical, 1190 BTU/hour maximum
- Dimensions (H x W x D): 1.72 x 17.3 x 17.07 in (4.37 x 43.94 x 43.36 cm), 1RU
- Weight: 17.7 lbs (8.0 kg)
- Operating temperature: 0 to 55 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95 percent, non-condensing
- Altitude: 0 to 3000 m
- Minimum software: NX-OS 7.3(0)N1(1) on Nexus 5500/5600/6000, NX-OS 9.2.1 on Nexus 9300/9500

FAQs

Q: Does the fabric extender need its own licence?
A: No separate licence is needed for the fabric extender itself. It is managed from the parent Nexus switch running NX-OS, so licensing is governed by the parent switch.

Q: Which parent switches does it work with?
A: Nexus 5500/5600, Nexus 6000 and Nexus 9300/9500 Series. The minimum software is NX-OS 7.3(0)N1(1) on 5500/5600/6000 and NX-OS 9.2.1 on 9300/9500. It is not supported with the Nexus 7000.

Q: What power supplies and airflow options are available?
A: Two hot-swappable 1+1 supplies are chosen from N2200-PAC-400W (AC, standard airflow), N2200-PAC-400W-B (AC, reversed airflow), N2200-PDC-400W (DC) and N2200-PDC-350W-B (DC, reversed airflow). Fans are NXA-FAN-30CFM-F for standard airflow and NXA-FAN-30CFM-B for reversed airflow.

Q: What can be used on the 40G fabric uplinks?
A: The uplinks accept FET-10G/FET-40G, QSFP-40G-SR-BD BiDi, SR4, LR4 and CSR4 optics. Active Twinax, AOC cables and the CVR-QSFP-SFP10G adapter are also supported.

Q: How does this SKU differ from other 2348TQ-E variants?
A: This SKU, N2K-C2348TQ12F-E, is the bundle that includes 12 Fabric Extender Transceivers (FET) for the 40G fabric uplinks.
