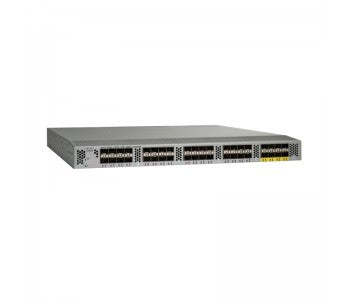

Cisco N2K-C2232PP-10GE | Nexus 2232PP 32-Port 1/10G SFP+ Fabric Extender, FCoE

SKU:N2K-C2232PP-10GE-USED

$90.00 inc. GST

$81.82 ex. GST

Sale Sold out

Shipping calculated at checkout.

7 in stock

Condition New Used

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 2232PP is a 1U fabric extender from the Cisco Nexus 2000 Series. It acts as a remote line card for a parent Nexus switch, so a top-of-rack or end-of-row data centre deployment is managed from a single point with policy enforced by the parent. It suits server access designs that need a path from 1 GbE to 10 GbE and unified fabric connectivity.

The unit provides 32 host-facing 1/10 Gigabit Ethernet and FCoE ports on SFP/SFP+ and 8 x 10 Gigabit Ethernet and FCoE SFP+ fabric uplinks. Fabric speed is 80 Gbps in each direction (160 Gbps full duplex) with 4:1 oversubscription, and hardware forwarding reaches 800 Gbps or 595 mpps. Typical power draw is 210 W, with a 270 W maximum. It has no separate licence listed, as features are inherited from the parent switch.

Parent switches are the Nexus 5000, 6000, 7000 and 9000 Series. Fabric uplinks accept FET-10G and SFP-10G-SR or LR optics, SFP-H10GB Twinax and SFP-10G-AOC cables, while host ports also take 1G SFPs such as GLC-T and GLC-SX-MM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Behaves as a remote line card of the parent Nexus switch, giving a single point of management and policy enforcement
- Zero-touch installation and automatic configuration of fabric extenders
- Supports FCoE and Data Center Bridging on host and fabric interfaces
- Front-to-back or back-to-front cooling options through fan tray and power supply selection, suited to hot-aisle and cold-aisle designs
- Server vPC scenario supported with Nexus 9000 parent switches
- Hot-swappable redundant power supplies and fan tray

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Host interfaces: 32 x 1/10 Gigabit Ethernet and FCoE, SFP/SFP+
- Fabric interfaces: 8 x 10 Gigabit Ethernet and FCoE, SFP+
- Fabric speed: 80 Gbps in each direction (160 Gbps full duplex)
- Oversubscription: 4:1
- Performance: hardware forwarding at 800 Gbps or 595 mpps
- FCoE: supported
- Distance to Nexus 5000/6000 parent: up to 10 km (300 m for FCoE traffic)
- Parent switches: Nexus 5000, 6000, 7000 and 9000 Series
- Power supplies: N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, N2200-PDC-350W-B
- Fan tray: N2K-C2232-FAN and N2K-C2232-FAN-B
- Typical power: 210 W, maximum 270 W
- Heat dissipation: 806 BTU/hour typical, 1330 BTU/hour maximum
- Dimensions (H x W x D): 1.72 x 17.3 x 17.7 in. (4.37 x 43.94 x 44.96 cm)
- Weight: 18.3 lb (8.3 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Nonoperating temperature: -20 to 70 C (-4 to 158 F)
- Humidity: 5 to 95 percent, noncondensing
- Altitude: 0 to 3000 m (0 to 10,000 ft)

FAQs

Q: Does the Nexus 2232PP need a licence?
A: No separate licence is listed for the fabric extender. Features are inherited from the parent Nexus switch and managed through it.

Q: Which parent switches does it work with?
A: It connects to Nexus 5000, 6000, 7000 and 9000 Series switches. Minimum software is NX-OS 4.2 on Nexus 5000, NX-OS 6.0 on Nexus 6000, NX-OS 5.2 on Nexus 7000 and NX-OS 6.1 on Nexus 9000.

Q: What optics and cables work on the fabric uplinks?
A: The fabric ports accept FET-10G and SFP-10G-SR or SFP-10G-LR optics, SFP-H10GB passive and active Twinax, and SFP-10G-AOC cables from 1 m to 10 m.

Q: Can the host ports run at 1G as well as 10G?
A: Yes. The 32 host ports are 1/10G SFP/SFP+ and accept 1G SFPs such as GLC-T, GLC-SX-MM, GLC-LH-SM and SFP-GE-T, as well as 10G SFP+ optics and Twinax.

Q: Which power supplies does it use?
A: It uses N2200-PAC-400W or N2200-PAC-400W-B AC supplies (90-264V AC), or N2200-PDC-400W or N2200-PDC-350W-B DC supplies (-40 to -72V DC). Typical draw is 210 W.
