Cisco

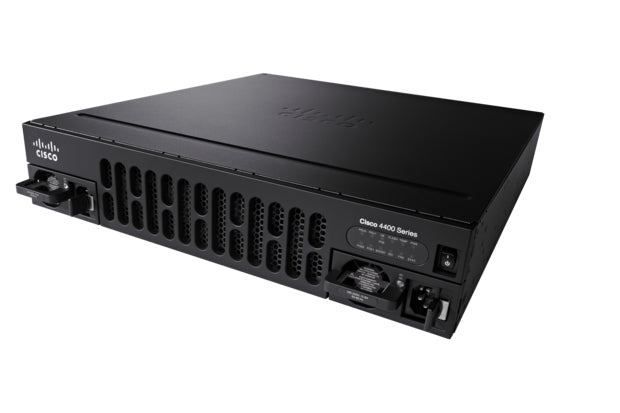

Cisco ISR4321-SEC-K9 | ISR 4321 Router, 2x GbE, 2x NIM, SEC Licence, 50 Mbps

SKU:ISR4321-SEC-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4321 is an entry-level branch-office WAN router from the Cisco 4000 Series Integrated Services Routers. It suits small branch sites that need secure VPN connectivity over MPLS, Internet and other links, and it can run Cisco Catalyst SD-WAN software.

This SKU is the security bundle that includes the Cisco IOS XE Security (SEC) licence for the IPsec VPN and security feature set. Default aggregate throughput is 50 Mbps, and the optional Performance licence raises it to 100 Mbps. Onboard connectivity is two 10/100/1000 RJ-45 ports and one SFP-based port, with two NIM slots and one onboard ISC slot for WAN, LAN, voice or compute expansion. It ships with 4 GB DRAM and 4 GB flash, upgradable to 8 GB of each.

It is a 1RU, 19-inch rack-mountable chassis with an external AC power supply (100-240 VAC). Typical power draw is 36 W with no modules. SD-WAN operation needs a separate Cisco Catalyst SD-WAN or DNA software subscription.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore processor architecture with separate control, services and data planes
- Embedded IPsec VPN hardware acceleration for WAN link security and VPN services
- Supports Cisco Catalyst SD-WAN software features
- Modular design with NIM slots for WAN, LAN, voice and compute expansion
- Online insertion and removal (OIR) of I/O modules
- Pay-as-you-grow throughput licensing, 50 Mbps default and 100 Mbps with the Performance licence
- Onboard SFP port for fibre uplinks alongside RJ-45 ports
- Snort IPS/IDS support via service containers, subject to available memory and flash

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Aggregate throughput (default): 50 Mbps
- Aggregate throughput (Performance licence): 100 Mbps
- Onboard 10/100/1000 WAN/LAN ports: 2 x RJ-45
- SFP-based ports: 1
- NIM slots: 2
- Onboard ISC slot: 1
- OIR (all I/O modules): Yes
- DDR3 ECC DRAM: 4 GB default, 8 GB maximum
- Flash memory: 4 GB default, 8 GB maximum
- External USB 2.0 slots (type A): 1
- USB console port (type B mini): 1
- Serial console port (RJ-45): 1
- Serial auxiliary port (RJ-45): 1
- Power supply: external AC, 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power (no modules): 36 W
- Maximum power with AC power supply: 125 W
- Dimensions (H x W x D): 44.55 x 369.57 x 294.64 mm
- Rack height: 1 RU, 19-inch rack-mountable
- Weight with AC PS (no modules): 3.5 kg plus 0.66 kg external PS
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5% to 85%
- MTBF: 593,270 hours

FAQs

Q: Which licence does the ISR4321-SEC-K9 include?
A: It is the security bundle with the Cisco IOS XE Security (SEC) licence, which enables the IPsec VPN and security feature set. Default throughput is 50 Mbps.

Q: Can the throughput be increased beyond 50 Mbps?
A: Yes. The optional Performance licence raises aggregate throughput from the default 50 Mbps to 100 Mbps.

Q: Does it need a separate licence to run SD-WAN?
A: Yes. The router can run Cisco Catalyst SD-WAN software, but SD-WAN operation needs a separate Cisco Catalyst SD-WAN or DNA software subscription.

Q: How can the ISR 4321 be expanded?
A: It has two NIM slots and one onboard ISC slot for WAN, LAN, voice or compute modules. Memory can be upgraded to a maximum of 8 GB DRAM and 8 GB flash.

Q: How is the router powered?
A: It uses an external AC power supply rated 100 to 240 VAC at 47 to 63 Hz. Typical draw is 36 W with no modules and maximum draw is 125 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
