Cisco

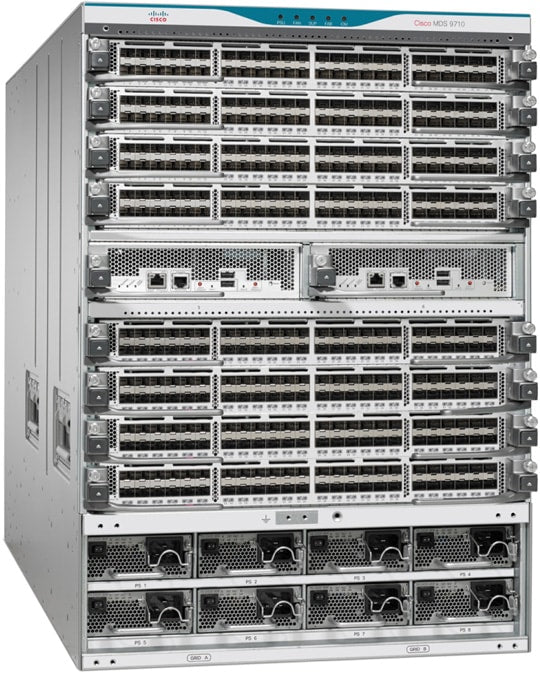

Cisco DS-C9710-1K9 | 10-slot Fibre Channel director | 2x supervisors | 3x fabric modules | 6x 3kW AC PS | fan trays | licensing: base bundle

SKU:DS-C9710-1K9

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Base-configured 10-slot Fibre Channel SAN director designed to anchor medium-to-large storage networks with room to grow. This bundle includes dual supervisors, three fabric modules, six 3kW AC power supplies, and fan trays—delivering resilient operation with a straightforward upgrade path to full fabric capacity. Add your preferred 4/8/16/32G FC line cards to scale out port density and bandwidth.

Features

- Balanced starter bundle with clear upgrade path
- Redundant supervisors for resilient control plane
- Expandable fabric bandwidth (3 to 6 modules)
- Hot-swappable fans and PSUs for serviceability
- Ready for mixed-speed 4/8/16/32G FC deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is included in the base configuration?
A: 2x supervisors, 3x fabric modules, 6x 3kW AC power supplies, and fan trays. Line cards and optics are not included.

Q: Can I upgrade the fabric modules later?
A: Yes. You can expand from 3 to 6 fabric modules to increase crossbar bandwidth and resiliency.

Q: Is 32G FC supported?
A: Yes, with the appropriate 32G-capable line cards and optics.

Q: How many power supplies can this platform support?
A: Up to eight hot-swappable 3kW AC PSUs for N+N redundancy.

Q: Are any licenses required for advanced SAN features?
A: Base features are included; some advanced capabilities may require additional licenses depending on your use case.

Technical Specifications

- Chassis type: 10-slot Fibre Channel director
- Included: 2x supervisors (redundant), 3x fabric modules, 6x 3kW AC power supplies, fan trays
- Slot architecture: 8 payload slots + 2 supervisor slots
- Fabric architecture: 3 crossbar modules installed; expandable to 6
- Power: 6x hot-swappable 3kW AC PSUs; supports up to 8 total
- Line-card support: 4/8/16/32-Gbps Fibre Channel (line cards sold separately)
- Maximum port density: up to 384 x 32G FC with 48-port modules
- Cooling: hot-swappable fan trays; front-to-back airflow
- Operating system: NX-OS (MDS)
- High availability: redundant supervisors, fabrics, fans, and PSUs (as populated)
