Cisco

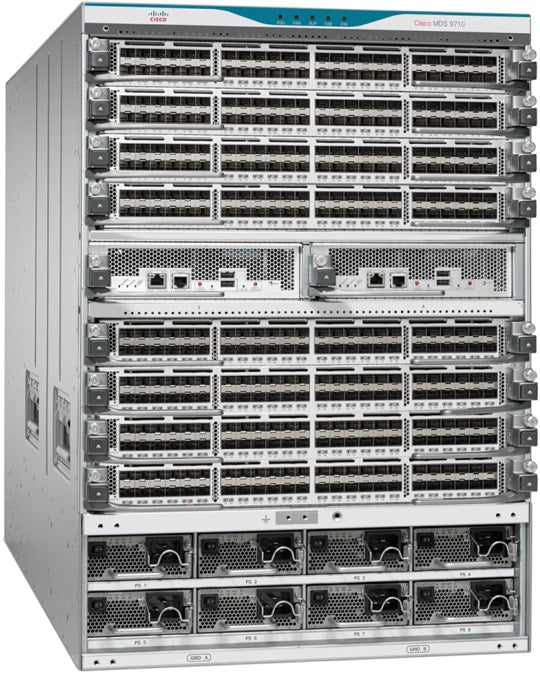

Cisco DS-C9710-1EK9 | 10-slot Fibre Channel director | 32G FC-ready | 2x supervisors | 6x fabric modules | 8x 3kW AC PS | fan trays | licensing: enhanced bundle

SKU:DS-C9710-1EK9

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Pre-configured 10-slot Fibre Channel SAN director bundle optimized for 32G FC environments. Includes dual redundant supervisors, six crossbar fabric modules for full fabric bandwidth, eight 3kW AC power supplies for robust N+N power redundancy, and fan trays. Populate with your choice of 4/8/16/32G FC line cards to reach very high port densities and throughput at the SAN core.

Features

- Turnkey high-availability director bundle for SAN cores
- Six fabric modules for maximum crossbar bandwidth and resiliency
- Dual supervisors for control-plane redundancy
- Eight 3kW AC PSUs for robust N+N power design
- 32G FC-ready platform with investment protection for prior FC speeds

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What components are included in this enhanced configuration?
A: It includes 2x supervisors, 6x fabric modules, 8x 3kW AC power supplies, and fan trays. Line cards and optics are not included.

Q: Is this configuration ready for 32G Fibre Channel?
A: Yes. With appropriate 32G FC line cards and optics, the chassis supports 32G operation.

Q: Can I reduce the number of power supplies?
A: Yes, the platform is modular; however, the included eight PSUs provide maximum redundancy and capacity.

Q: Are software licenses included?
A: Base functionality is included. Advanced features may require additional licenses depending on use case.

Q: Does it support mixed-speed environments?
A: Yes. You can mix 4/8/16/32G FC line cards to support phased migrations.

Technical Specifications

- Chassis type: 10-slot Fibre Channel director for SAN fabrics
- Included: 2x supervisors (redundant), 6x fabric modules, 8x 3kW AC power supplies, fan trays
- Slot architecture: 8 payload slots + 2 supervisor slots
- Fabric architecture: six crossbar modules for full fabric bandwidth and redundancy
- Power: 8x hot-swappable 3kW AC PSUs installed for high availability
- Line-card support: 4/8/16/32-Gbps Fibre Channel (line cards sold separately)
- Maximum port density: up to 384 x 32G FC using 48-port modules
- Cooling: hot-swappable fan trays; front-to-back airflow
- Operating system: NX-OS (MDS) with advanced SAN feature support
- High availability: redundant supervisors, fabrics, fans, and PSUs
