Cisco

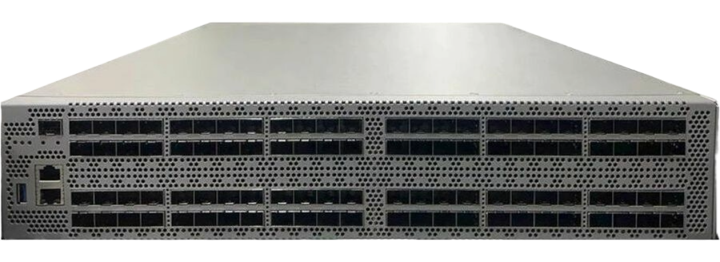

Cisco DS-C9396V-48EK9 | 96-port 64G FC switch | 48x 64G FC active | Airflow: port-side exhaust | PoE: N/A | Uplinks: any-port 64G/32G/16G FC | License: PSE Base

SKU:DS-C9396V-48EK9

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Next‑generation 64G Fibre Channel SAN switch (96-port chassis) with 48 ports active under the PSE Base license and port-side exhaust airflow. Offers 64G/32G/16G FC flexibility (with appropriate optics), advanced SAN services under NX‑OS, and high-availability hardware design for mission‑critical fabrics.

Features

- 48 active 64G FC ports for Gen7 performance with room to scale
- PSE Base license for cost-effective initial deployment
- Port-side exhaust airflow for hot-aisle port orientation
- Backward speed compatibility with 32G/16G optics
- Advanced SAN capabilities under NX-OS (VSANs, zoning, NPIV/NPV)
- Redundant, hot-swappable power and cooling
- Flexible topology via ISLs and port-channel aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How many ports are active with PSE Base?
A: 48 ports are active; you can license additional ports up to the full 96.

Q: Are optics included?
A: This PSE Base configuration typically ships without SFPs unless explicitly stated; add 64G/32G/16G FC SFPs as needed.

Q: What airflow direction is used?
A: Port-side exhaust—air moves from the port face toward the PSU side.

Q: Can I connect 32G or 16G FC devices?
A: Yes. Use the corresponding 32G or 16G FC optics to interoperate at those speeds.

Q: Is stacking supported?
A: No traditional stacking; scale using Fibre Channel ISLs with port-channeling.

Technical Specifications

- Port configuration: 96 x SFP-based Fibre Channel ports (48 active under PSE Base)
- Port speeds: 64G/32G/16G FC with appropriate SFPs
- Optics support (example): 64G FC SW SFP (SFP56) | 850 nm | OM4 up to ~100 m | LC duplex
- Airflow: Port-side exhaust (back-to-front)
- Licensing: PSE Base; additional licenses can enable more ports/features (model-dependent)
- Redundancy: Hot-swappable, redundant power supplies and fans
- Management: Cisco NX-OS (CLI, SSH, SNMP); role-based access
- SAN features: VSANs, zoning, NPIV/NPV, congestion detection, ISL port-channels
- Uplinks: Any front-panel port can be used for ISLs
- Compatibility: Interoperates with 32G/16G endpoints using matching optics
