Cisco

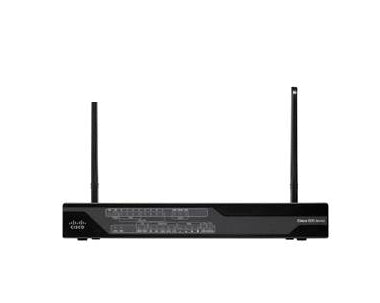

Cisco C899G-LTE-LA-K9 | 890G LTE 2.5 Router, Gigabit/SFP WAN, MC7430

SKU:C899G-LTE-LA-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 899G LTE-LA is a fixed-configuration branch Integrated Services Router from the 890G Series, built for small offices that need secure voice and data over broadband, Metro Ethernet or xDSL with 4G LTE as a primary or backup WAN. It is the variant with Sierra Wireless MC7430 bands for Australia, Asia and selected Latin America regions.

The WAN side offers one Gigabit Ethernet or one SFP port, alongside an embedded Sierra Wireless MC7430 (Qualcomm MDM9230) LTE 2.5 modem. LTE operates on FDD bands 1, 3, 5, 7, 8, 18, 19, 21 and 28 and TDD bands 38, 39, 40 and 41, with carrier aggregation, and falls back to UMTS/HSPA+. Dual mini (2FF) SIM sockets support cellular multihoming, and GPS and SMS are supported. The LAN side is an 8-port 10/100/1000 managed switch, with 1 GB DRAM and 1 GB flash.

The router runs a universal Cisco IOS image with Advanced IP Services and Full Security features, and needs IOS 15.6(2)T1 or later with modem firmware 2.14.3.x or later. Provisioning firmware options are FW-7430-LTE-AU (Telstra), FW-7430-LTE-GN (generic) and FW-7430-LTE-JN (NTT DoCoMo). It works with Cisco 4G LTE antennas and extension cables such as 4G-LTE-ANTM-D, 4G-AE010-R, 4G-ANTM-OM-CM, 3G-CAB-ULL-20 and 3G-CAB-ULL-50.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded multimode 4G LTE 2.5 modem with fallback to HSPA+/UMTS
- Dual SIM support for cellular multihoming and high reliability
- Automatic failover between primary and backup links, with WAN diversity across Gigabit Ethernet (copper or SFP), xDSL and LTE
- Cisco IOS with QoS for cellular, Multi-VRF, advanced VPN and unified communications
- Remote modem firmware upgrade over LTE and self-monitoring with automatic modem recovery
- Web-based Cisco Configuration Professional, plus Cisco Prime and HP OpenView management support
- Cisco IOx support for third-party applications
- Remote diagnostics using Qualcomm CAIT and Spirent UDM tools

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- WAN interface: 1 x Gigabit Ethernet or 1 x SFP
- LAN interface: 8-port 10/100/1000 Mbps managed switch, 4-port PoE option
- Embedded 4G LTE modem: Sierra Wireless MC7430 with Qualcomm MDM9230
- LTE FDD bands: 1, 3, 5, 7, 8, 18, 19, 21, 28
- LTE TDD bands: 38, 39, 40, 41
- Carrier aggregation: 1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21; 38+38; 39+39; 40+40; 41+41
- LTE speed: Category 4, 150 Mbps download / 50 Mbps upload
- HSPA+ speed: up to 42.2 Mbps download / 5.76 Mbps upload
- DC-HSPA+ speed: up to 62 Mbps download / 11.5 Mbps upload
- Fallback: UMTS/HSPA+ and TD-SCDMA band 39
- SIM: Dual mini (2FF) SIM sockets
- GPS: Standalone GPS with SMA connector
- SMS: Send and receive, up to 160 characters
- Antenna MIMO: Diversity supported 2x2 MIMO
- DRAM: 1 GB
- Flash memory: 1 GB
- Console/auxiliary port: RJ-45 dual-purpose
- Mini-USB port: Reserved for remote 4G LTE diagnostics
- Dimensions (H x W x D): 48 x 325 x 264 mm with feet and antenna connectors
- Weight: 2.59 kg
- Software requirement: Cisco IOS 15.6(2)T1 or later with modem firmware 2.14.3.x or later
- Safety certifications: UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, CB to IEC 60950-1

FAQs

Q: Does this router need a separate IOS licence tier?
A: It runs a universal Cisco IOS image. The default feature set is Advanced IP Services with the Full Security feature set.

Q: Which software and modem firmware does it require?
A: It needs Cisco IOS 15.6(2)T1 or later with modem firmware 2.14.3.x or later. Provisioning firmware options are FW-7430-LTE-AU for Telstra, FW-7430-LTE-GN for generic use and FW-7430-LTE-JN for NTT DoCoMo.

Q: Which antennas and cables does it work with?
A: It supports Cisco 4G LTE antennas and extension cables including 4G-LTE-ANTM-D, 4G-AE010-R, 4G-ANTM-OM-CM, 3G-CAB-ULL-20 and 3G-CAB-ULL-50.

Q: What WAN options does it offer?
A: It has one Gigabit Ethernet or one SFP WAN port, plus the embedded LTE 2.5 modem. The router can fail over automatically between these links.

Q: How does this model differ from other 890G LTE variants?
A: This SKU carries the Sierra Wireless MC7430 modem with bands for Australia, Asia and selected Latin America regions, and offers a Gigabit Ethernet or SFP WAN port.
