Cisco

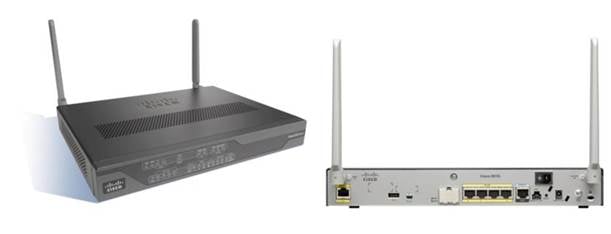

Cisco C887VAG-LTE-GA-K9 | 880G 4-Port Router, VDSL2/ADSL2+ Annex A, LTE Dual-SIM

SKU:C887VAG-LTE-GA-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 880G Series 4G LTE 2.0 Integrated Services Router is a fixed-configuration branch router for small businesses, remote offices, teleworkers and retail or point-of-sale sites that need a DSL connection with LTE as a primary or backup WAN. This SKU combines a multimode VDSL2/ADSL2/2+ Annex A WAN over basic telephone service (POTS) with an embedded dual-SIM 4G LTE Cat 3 modem for the -GA Australia and Europe bands. It has no wireless LAN radio.

The WAN side delivers LTE Cat 3 speeds of up to 100 Mbps down and 50 Mbps up on bands 1, 3, 7, 8 and 20, with UMTS/HSPA+ and quad-band EDGE/GPRS/GSM fallback. Two mini-SIM (2FF) sockets support carrier redundancy, and automatic failover moves traffic between the DSL and cellular links. On the LAN side, a 4-port 10/100 managed switch includes two PoE-capable ports when used with an optional external PoE adapter. Memory is 1 GB DRAM and 1 GB flash. It runs the universal IOS image with the Advanced IP Services feature set and Full Security License, so the integrated firewall, IPS and IPsec VPN are ready to configure. A mobile carrier data plan and SIM are required for LTE.

It works with the Cisco 4G LTE antenna range, including the 4G-LTE-ANTM-D dipole and 4G-AE010-R extender, plus optional GPS and outdoor antennas. IOS 15.4(3)M1 or later with matching modem firmware is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded 4G LTE 2.0 with automatic failover between primary and backup WAN links
- Dual SIM support for carrier redundancy and cellular multihoming
- Integrated firewall, IPS, IPsec VPN (3DES/AES) and content filtering
- Cisco Cloud Web Security connector for cloud-based web protection
- Multiple-PDN, LTE multiple-bearer QoS and Multi-VRF for cellular, subject to carrier support
- Mobile IP and mobile network features for networks in motion
- Management through Cisco Configuration Professional, SNMP, Telnet and HTTP
- Remote 4G LTE firmware upgrade and SIM lock/unlock
- IOx support for third-party applications on a second core

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- WAN interface: Multimode VDSL2/ADSL2/2+ over POTS, Annex A
- LAN interface: 4-port 10/100 Mbps managed switch, 2 ports PoE-capable with optional external PoE adapter
- Embedded cellular modem: 4G LTE 2.0 Cat 3, Sierra Wireless MC7304 (Qualcomm MDM9215), -GA Global/Australia
- LTE bands: 1, 3, 7, 8, 20 (2100/1800/2600/900/800 MHz)
- LTE theoretical speed: 100 Mbps download, 50 Mbps upload
- Fallback: UMTS/HSPA+ 850/900/1900/2100 MHz, quad-band EDGE/GPRS/GSM 800/900/1800/1900 MHz
- HSPA+ speed: Up to 42.2 Mbps download, 5.76 Mbps upload
- SIM support: Dual mini (2FF) SIM sockets
- Antenna diversity: MIMO 2x2
- GPS: SMA connector for optional active GPS antenna
- SMS: Send and receive, up to 160 characters
- 802.11a/g/n wireless LAN: Not present
- Integrated ISDN dial backup: Not present
- DRAM: 1 GB
- Flash: 1 GB
- Console/auxiliary port: Single dual-purpose RJ-45
- USB: Mini-USB port reserved for remote 4G LTE diagnostics
- Dimensions (H x W x D): 44 x 325 x 264 mm without feet
- Weight: 2.54 kg
- Power supply: External AC adapter, 100-240 VAC input, 60 W, 12 VDC output
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 10 to 85% non-condensing
- Recommended users: 20
- IPsec tunnels: 20

FAQs

Q: Does this router need a software licence?
A: It runs the universal Cisco IOS image with the Advanced IP Services feature set and Full Security License. Cisco Cloud Web Security is a separate subscription service. A mobile carrier data plan and SIM are needed for LTE.

Q: Which DSL standard does this model support?
A: It has a multimode VDSL2/ADSL2/2+ WAN port for Annex A, which runs over a basic telephone line (POTS). It is not intended for Annex B (ISDN) lines.

Q: How is the router powered, and can it supply PoE?
A: It uses an external AC adapter with 100-240 VAC input and 12 VDC, 60 W output. Two of the four LAN ports are PoE-capable when an optional external 48 VDC PoE adapter is fitted, up to 80 W.

Q: Which LTE bands does the -GA version cover?
A: It supports LTE bands 1, 3, 7, 8 and 20 (2100, 1800, 2600, 900 and 800 MHz), with UMTS/HSPA+ and quad-band EDGE/GPRS/GSM fallback.

Q: How does this model differ from other 887VA variants?
A: This SKU is the Annex A (POTS) model with LTE Cat 3 dual-SIM for the -GA Australia and Europe bands, and it has no WLAN radio.

Q: What IOS version does it need?
A: It requires IOS 15.4(3)M1 or later with matching modem firmware 5.5.26.x or later. Newer T train releases with later modem firmware add advanced LTE features.
