Cisco

Cisco C881G-7-A-K9 | 880 Series Router, 3.7G HSPA+, SMS/GPS, AT&T, FE WAN

SKU:C881G-7-A-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

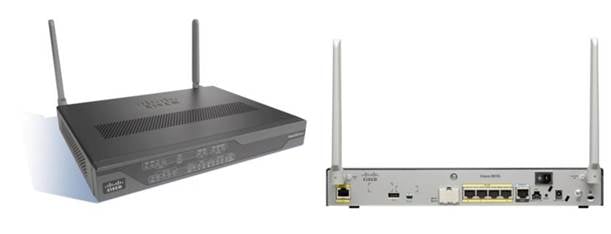

The Cisco 881G is a fixed-configuration branch router in the Cisco 880 Series Integrated Services Routers. It is built for small branch and small-office sites that need a Fast Ethernet WAN router with cellular 3G/HSPA+ for primary or backup WAN connectivity and out-of-band management.

This SKU combines a single 10/100 Fast Ethernet WAN port with a managed 4-port 10/100BASE-T LAN switch and an embedded 3.7G HSPA+ Release 7 modem with SMS and GPS support. The modem is designed for AT&T (GSM North America) networks. Local connectivity includes one USB 1.1 port for security tokens or flash memory and an RJ-45 console/auxiliary port. Default and maximum flash is 128 MB.

Power comes from an external supply with a 100 to 240 VAC input and 60 W, 12 VDC output, with optional internal PoE using an external 48 VDC adapter rated at 80 W maximum. The unit runs on Cisco IOS Software and can be set up and managed through web-based tools.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded 3G/HSPA+ cellular WAN for primary or backup connectivity
- Out-of-band management over the cellular link
- SMS and GPS support on the embedded modem
- Managed 4-port 10/100 LAN switch with autosensing MDI/MDX
- Cisco IOS Software with web-based setup and remote management
- Optional internal PoE using an external 48 VDC adapter

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- WAN port: 1 x 10/100 Fast Ethernet
- LAN switch: Managed 4-port 10/100BASE-T with auto-MDI/MDX
- Cellular modem: Embedded 3.7G HSPA+ Release 7 with SMS/GPS, for AT&T networks
- Flash memory: 128 MB default and maximum
- USB: 1 x USB 1.1 port for security tokens or flash memory
- Console/auxiliary port: RJ-45
- External power supply: 100 to 240 VAC input, 60 W, 12 VDC output
- Power frequency: 50 to 60 Hz
- Optional internal PoE: 80 W maximum, 48 VDC external adapter
- Dimensions (H x W x D): 44 x 325 x 249 mm without rubber feet
- Weight: 2.5 kg maximum
- Operating temperature: 0 to 40 C at sea level, 0 to 25 C up to 3000 m
- Operating humidity: 10 to 85% relative humidity, non-condensing
- Operating altitude: 0 to 3000 m
- Non-operating temperature: -20 to 65 C
- Non-operating humidity: 5 to 95% relative humidity, non-condensing
- Non-operating altitude: 0 to 4570 m

FAQs

Q: Which cellular network does this router support?
A: The embedded 3.7G HSPA+ Release 7 modem is designed for AT&T (GSM North America) networks.

Q: Can the cellular link be used as the main WAN connection?
A: Yes. The embedded modem can serve as primary or backup WAN connectivity, and it also supports out-of-band management.

Q: Does this router support PoE?
A: Optional internal PoE is available on 880 Series models using an external 48 VDC adapter, with an 80 W maximum.

Q: How does this SKU differ from other 880 Series models?
A: This SKU pairs a Fast Ethernet WAN port with the embedded 3.7G HSPA+ Release 7 modem with SMS/GPS for AT&T networks.

Q: What power supply does it use?
A: It uses an external supply with a universal 100 to 240 VAC input and a 60 W, 12 VDC output.
