Cisco

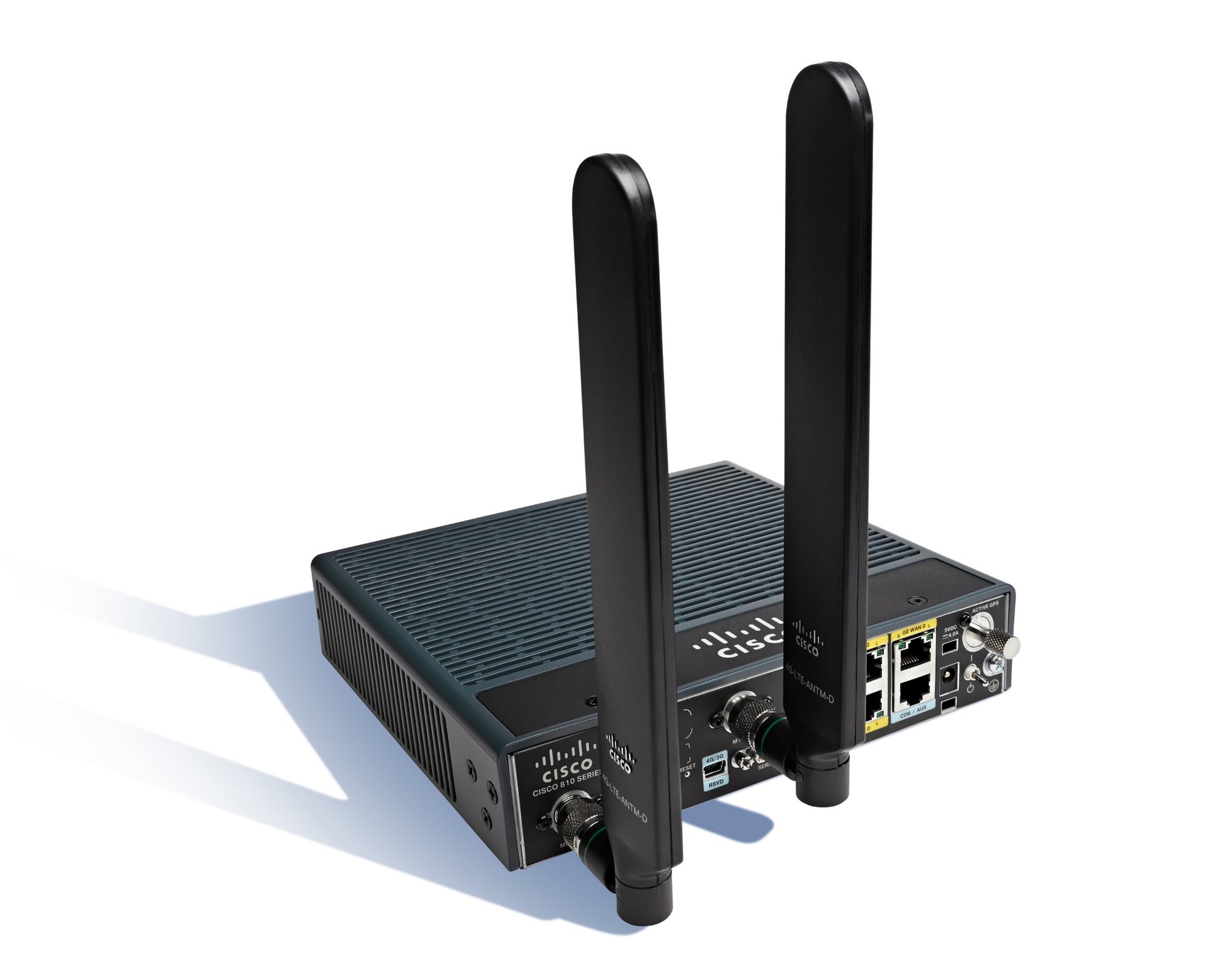

Cisco C819G-4G-GA-K9 | 819 M2M 4G LTE Router, 4x FE LAN, Global Bands

SKU:C819G-4G-GA-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 819 M2M Integrated Services Router is a compact desktop router with an embedded multimode 4G LTE 2.0 modem. It suits small branch offices and machine-to-machine or IoT deployments such as retail sites, kiosks, ATMs and remote locations, either as a primary cellular WAN or as a backup link.

This -GA variant uses a Sierra Wireless MC7304 modem covering LTE bands 1, 3, 7, 8 and 20 (2100, 1800, 2600, 900 and 800 MHz) for Australia, Europe and the Middle East, with fallback to HSPA+, UMTS and EDGE. LTE Category 3 delivers up to 100 Mbps down and 50 Mbps up, depending on the carrier. Wired connectivity includes four 10/100 Fast Ethernet LAN ports, one Gigabit Ethernet WAN port and a Cisco Smart Serial WAN interface, with dual mini-SIM sockets for carrier redundancy. The router has 1 GB of DRAM and 1 GB of flash and runs the Advanced IP Services feature set with the Full Security licence, including zone-based firewall and IPsec VPN with hardware-accelerated encryption.

The router requires Cisco IOS 15.4(3)M1 or later with a matching modem firmware release, and it works with the Cisco Smart Serial cable range for synchronous and asynchronous serial links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multimode LTE 2.0 with automatic fallback and transparent handoff to HSPA+, UMTS and EDGE
- Cellular multihoming with dual SIM and automatic failover between primary and backup links
- Remote 4G firmware upgrade over LTE, SIM lock and unlock, and SMS send and receive
- Integrated security: zone-based firewall, intrusion prevention, SSL VPN, IPsec, Easy VPN, DMVPN, GET VPN and PKI
- Routing and services: RIP, OSPF, EIGRP, BGP, VRF-Lite, GRE, NHRP, BFD, NAT, DHCP and IPv4/IPv6 multicast
- Remote management via SNMP, Telnet, HTTP and console, with 3G/4G LTE MIB extensions
- WAAS Express WAN optimisation support
- Compact desktop form factor for small branch and M2M deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Modem: Sierra Wireless MC7304 (Qualcomm MDM9215), LTE 2.0 Category 3
- LTE bands: 1, 3, 7, 8, 20 (2100/1800/2600/900/800 MHz)
- Fallback: UMTS/HSPA+ 850/900/1900/2100 MHz, quad-band EDGE/GPRS/GSM
- LTE speed: up to 100 Mbps download / 50 Mbps upload (carrier dependent)
- LAN: 4 x 10/100 Fast Ethernet
- WAN: 1 x 10/100/1000 Gigabit Ethernet, 1 x Cisco Smart Serial
- SIM: dual mini-SIM (2FF) sockets
- GPS: standalone GPS via SMA connector
- Memory: 1 GB DRAM, 1 GB flash
- Console/auxiliary: RJ-45 dual-purpose port
- Diagnostics: mini-USB port for remote 4G LTE diagnostics
- Serial: sync up to 8 Mbps, async up to 115.2 kbps
- Switch features: 16 802.1Q VLANs, MAC filtering, SPAN, storm control, IGMPv3 snooping, 802.1X
- IPsec: 20 tunnels, hardware-accelerated AES/3DES
- Power: external AC adapter, 100-264 VAC, 11 W maximum platform consumption
- Dimensions (H x W x D): 42 x 196 x 183 mm
- Weight: 1.0 kg
- Operating temperature: -20 to 50 C
- MTBF (Ground Benign): 508,000 hours
- Minimum software: Cisco IOS 15.4(3)M1 with modem firmware 5.5.26.x or later

FAQs

Q: Which licence and feature set does this router run?
A: It runs the Universal Cisco IOS image with the Advanced IP Services feature set and the Full Security licence by default. Optional Cisco ISR Web Security with ScanSafe and Trend Micro content filtering need separate subscriptions.

Q: Which regions and carriers does the -GA variant suit?
A: The -GA variant covers LTE bands 1, 3, 7, 8 and 20 for Australia, Europe and the Middle East, with HSPA+ fallback. It is not intended for US or Canadian carriers.

Q: How is the router powered?
A: It uses an external 20 W AC power adapter (100-264 VAC), and a DC adapter option with a 10-36 VDC input is also available. The router has no PoE.

Q: What IOS version does it require?
A: It needs Cisco IOS 15.4(3)M1 with modem firmware 5.5.26.x or later, or IOS 15.5(2)T1 or 15.5(3)M with modem firmware 5.5.58.x or later.

Q: Which serial cables does it work with?
A: The Smart Serial port works with the Cisco CAB-SS series cables, including V.35, EIA-232, EIA-449, X.21 and EIA-530 (CAB-SS-V35MT/FC, 232MT/FC, 449MT/FC, X21MT/FC, 530MT and 530AMT).
