Cisco C8130-G2 | 8100 Secure Router, 6x 1GE, 30W AC, SD-WAN Ready
SKU:C8130-G2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

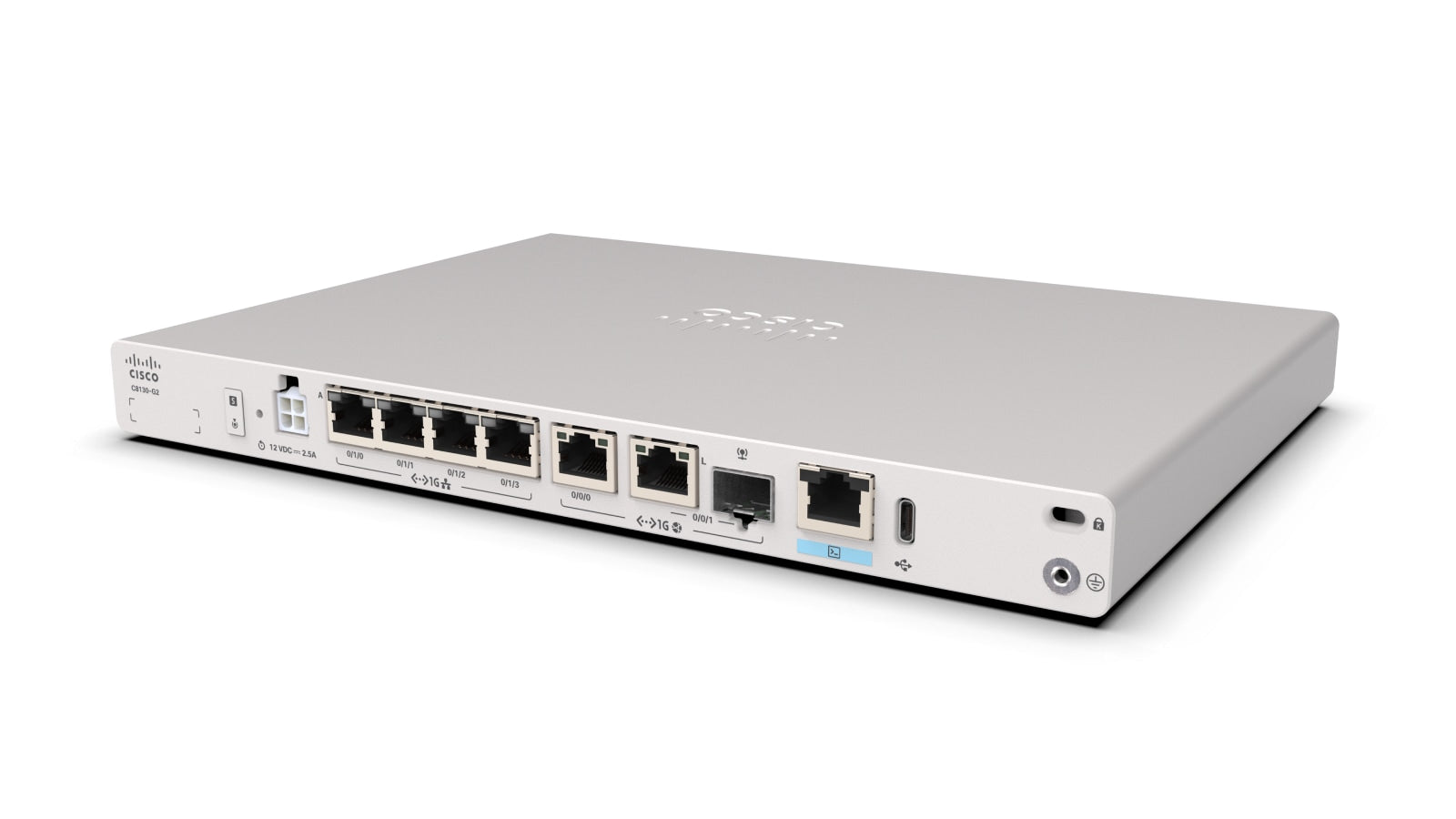

The Cisco 8100 Series C8130-G2 is a compact, fanless secure router built for small branches. It suits small branch routing or SD-WAN, point-of-sale connectivity, remote workers and IoT, and temporary or mobile sites that need quick deployment. A built-in next-generation firewall and hardware-accelerated security run on Cisco's secure networking processor.
There are six 1GE ports: one 1GE RJ-45 WAN, one 1GE RJ-45/SFP combo WAN, two 1GE flex ports and two 1GE LAN ports. Forwarding throughput is 1.9 Gbps, IPsec throughput is 1.5 Gbps and SD-WAN throughput is 900 Mbps, all measured at 512B. It supports 250 IPsec tunnels, 280K IPv4 routes and 100K NAT sessions. This model has no cellular support and no PoE output. Power comes from the 30W external AC adapter, with a typical draw of 16W.
It ships in autonomous routing mode and requires IOS XE 17.18.1 or later. It can be moved to Catalyst SD-WAN mode, supported from IOS XE 26.2.1 with SD-WAN Manager 26.2.1. Mounting options include rack mount, desktop, under desk and DIN-rail or wall mount.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware-accelerated routing and security on Cisco's secure networking processor
- Fanless design suited to small branch deployments
- Integrated next-generation firewall with Zero Trust capabilities
- SASE-ready architecture
- Post-quantum cryptography readiness
- On-premises, infrastructure-as-code or cloud management options
- Autonomous routing mode by default, switchable to Catalyst SD-WAN mode
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- WAN ports: 1x 1GE RJ-45, 1x 1GE RJ-45/SFP combo
- Flex ports: 2x 1GE RJ-45
- LAN ports: 2x 1GE RJ-45
- Cellular: Not supported
- Management: 1x RJ-45 console, 1x USB Type-C 3.0 (OOB management)
- Forwarding throughput (512B): 1.9 Gbps
- IPsec throughput (512B): 1.5 Gbps
- SD-WAN throughput (512B): 900 Mbps
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- IPsec tunnels: 250
- VRFs: 1K
- Power supply: 30W external AC (PWR-CC1-30WAC)
- Typical power: 16W
- Dimensions (H x D x W): 1.09 x 7.8 x 10.8 in
- Weight: 3.5 lb
- MTBF: over 100,000 hours
- Operating temperature: 0 to 40 C, derating of 1 C per 1000 ft above 40 C
- Operating humidity: 5% to 85% RH, non-condensing
- Mounting: rackmount, desktop, under desk, DIN-rail or wall
- Minimum IOS XE for routing: 17.18.1
- Minimum IOS XE for SD-WAN: 26.2.1
FAQs
Q: What licensing does the C8130-G2 use?
A: It ships preloaded with Cisco Routing OS Essentials (R-OS-S-E), a perpetual embedded OS. Upgrades include OS Advantage (R-OS-S-A) or the Cisco Routing Advantage subscription (LIC-ROS-S-A) for routing, and the Cisco WAN Essentials or Advantage subscription (LIC-CSWAN-S-E / LIC-CSWAN-S-A) for Catalyst SD-WAN.
Q: How is the C8130-G2 powered?
A: It uses the 30W external AC adapter PWR-CC1-30WAC through a 12 VDC input. Typical draw is 16W and the unit has no PoE output.
Q: Can it run in Catalyst SD-WAN mode?
A: Yes. It ships in autonomous routing mode, which needs IOS XE 17.18.1 or later. SD-WAN mode is supported from IOS XE 26.2.1 with Catalyst SD-WAN Manager 26.2.1.
Q: Does it support cellular connectivity?
A: No. The C8130-G2 has no PIM slot or embedded modem, so cellular modules are not supported.
Q: What mounting kits are available?
A: Rack mount kit C8130-G2-RM-19=, DIN rail kit ACS-1111-DRM= and under desk kit ACS-1100-UDM= are available. The unit also sits on a desktop.
Q: Can the combo port take SFP optics?
A: Yes. The 1GE RJ-45/SFP combo WAN port accepts SFP optics as an alternative to copper.
