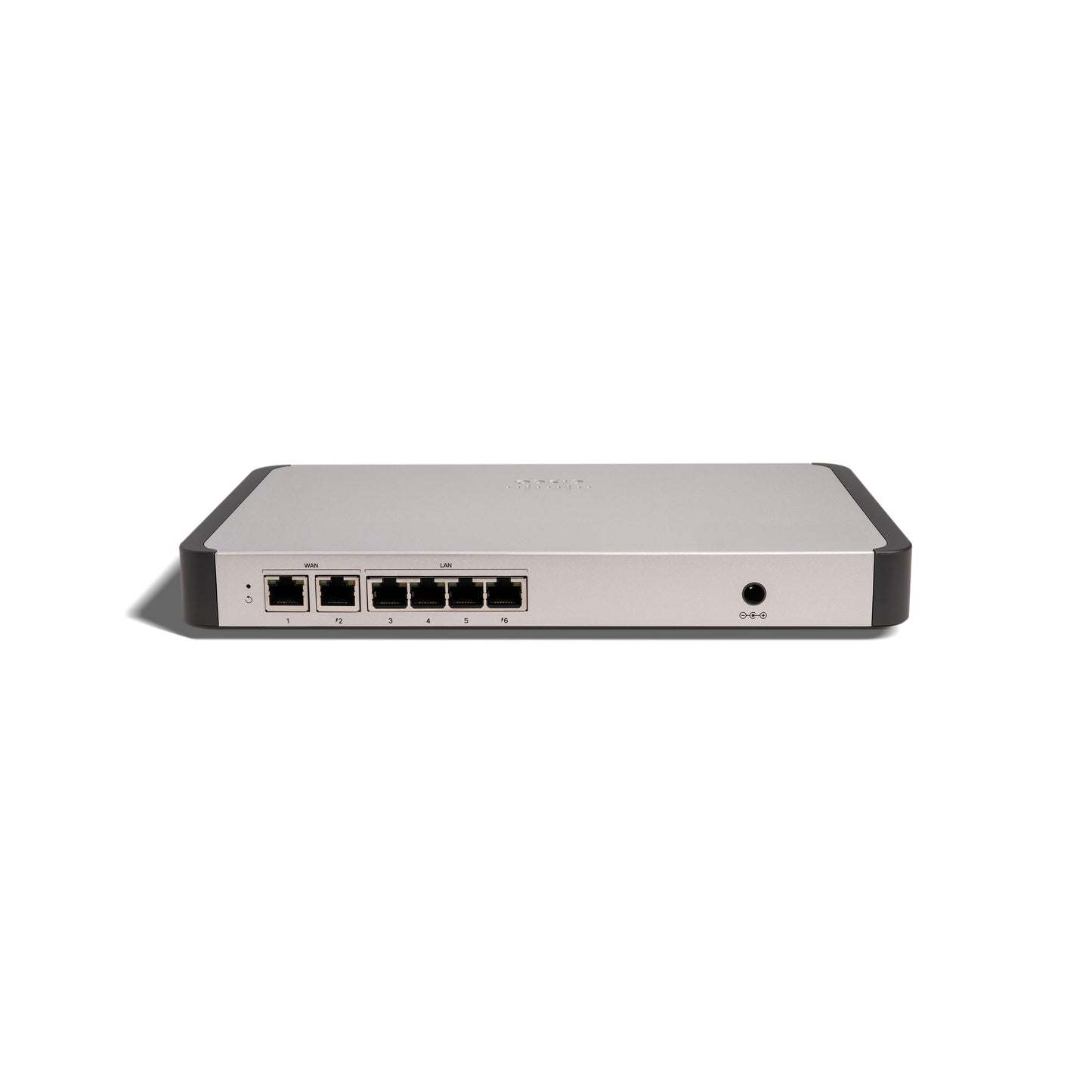

• Cisco C8111-G2-MX silver black 6-port network switch rear view
1 1

Cisco

Cisco C8111-G2-MX Cloud Managed Secure Router | 2 x 2.5GbE WAN | 2Gbps Firewall | 1200Mbps VPN

C8111-G2-MX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Cisco Meraki C8111-G2-MX is a cloud managed security and SD-WAN router designed for small to medium branch deployments that need secure connectivity with simple remote administration via the Meraki Dashboard. WAN: 2 x 2.5 mGig RJ45 dedicated WAN uplinks, with PoE support on one WAN port to power a cellular gateway LAN: Up to 10 LAN GbE ports on the platform, C8111-G2-MX includes 4 x dedicated 1GbE RJ45 LAN ports Performance: up to 2 Gbps stateful firewall throughput, up to 1200 Mbps VPN throughput, up to 1200 Mbps advanced security throughput Security and SD-WAN: L3/L7 firewall, AutoVPN, WAN failover and load balancing, content filtering, IDS/IPS, AMP malware protection Management: Cisco Meraki Dashboard with remote monitoring and configuration Note: Meraki devices require an active licence to operate and be managed in Dashboard.

Features

• Cloud managed secure router for branch SD-WAN and security, managed in Meraki Dashboard
• 2 x 2.5GbE WAN uplinks, one supports PoE to power a cellular gateway
• 2Gbps stateful firewall throughput, 1200Mbps VPN throughput, 1200Mbps advanced security throughput
• SD-WAN features including AutoVPN, WAN failover, and link balancing
• Security stack includes L3/L7 firewall, IDS/IPS, AMP, and content filtering
• Desktop or wall mount form factor with 150W DC power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Model SKU: C8111-G2-MX
Product Type: Cisco cloud managed secure router (MX OS)

WAN Interfaces:
- 2 x 2.5 mGig RJ45 Ethernet ports dedicated for WAN uplinks
- One WAN port supports PoE to power a cellular gateway

LAN Interfaces:
- 4 x 1GbE RJ45 Ethernet LAN ports (C8111-G2-MX)

Throughput and capabilities:
- Max stateful firewall throughput (NAT mode): 2 Gbps
- Max VPN throughput: 1200 Mbps
- Advanced security throughput: 1200 Mbps
- Recommended use case: up to 200 devices

Software features (high level):
- Managed via Cisco Meraki Dashboard
- Automatic WAN failover and WAN link balancing
- SD-WAN over Meraki AutoVPN
- L3/L7 stateful firewall, geo based rules, NAT, VLANs, DHCP, static routing
- Client VPN endpoint, IPSec VPN endpoint
- Content filtering, AMP, IDS/IPS
- NetFlow, syslog, remote packet capture
- IPv6 support, 802.1X support

Physical:
- Mount type: Desktop or wall mount
- Dimensions (H x D x W): 34 x 143 x 273 mm
- Weight: 0.87 kg
- Power supply: 150W DC
- System power (idle/max): 16W / 22W
- System + PoE power load (idle/max): 16W / 97W
- Operating temperature: 0°C to 45°C
- Humidity: 5% to 95%

FAQs

Q1: Do I need a Meraki licence for this to work?
A1: Yes. Meraki devices require an active licence to operate and to be managed in the Meraki Dashboard.

Q2: What WAN connections does the C8111-G2-MX have?
A2: It has 2 x 2.5 mGig RJ45 dedicated WAN uplink ports. One WAN port can provide PoE to power a cellular gateway.

Q3: What is the firewall and VPN throughput?
A3: The datasheet lists up to 2 Gbps stateful firewall throughput and up to 1200 Mbps VPN throughput.

Q4: How many LAN ports are on this model?
A4: The C8111-G2-MX includes 4 x 1GbE RJ45 LAN ports.
