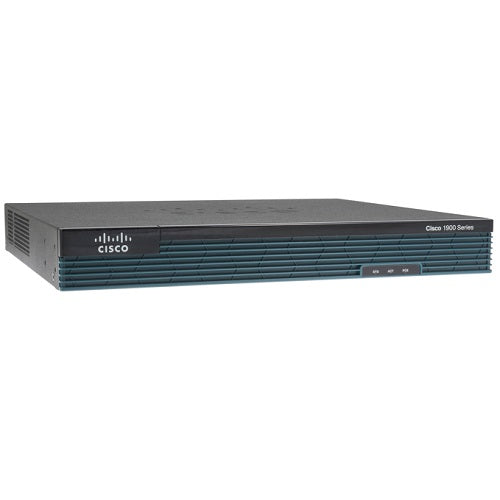

Cisco C1921-AX-K9 | 1921 Router, 2x GE, 2x EHWIC, AX Bundle
SKU:C1921-AX-K9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco 1921 is a modular branch-office Integrated Services Router from the Cisco 1900 Series (ISR G2). It suits small and branch sites that need WAN and LAN routing with integrated security, VPN and 3G wireless WAN backup, with concurrent-services throughput up to about 15 Mbps.
This AX bundle SKU provides two onboard 10/100/1000 RJ-45 Gigabit Ethernet ports and two EHWIC slots, with one doublewide HWIC-D slot usable in place of both. It ships with 512 MB DDR2 DRAM and 256 MB internal flash, plus embedded hardware IPsec and SSL encryption acceleration. The AX bundle combines the IP Base licence with the Security (SEC) and Application Experience (APP) licences on a single IOS Universal image, so security and application features are enabled without further licence purchases. The DATA licence is a separate option.
The 1921 is a 1RU unit that can be wall-mounted or fitted to a 19 inch rack with the optional kit. It uses an internal AC supply (100-240V) and supports an optional external PoE power adapter. It works with EHWIC, HWIC, HWIC-D, WIC and VWIC modules, including 3G WWAN cards and EtherSwitch HWIC modules.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single Cisco IOS Universal image with technology packages enabled by software licence activation
- Modular design reuses existing HWIC, WIC and VWIC modules from earlier ISRs
- Security features include IOS Firewall, Zone-Based Firewall, IOS IPS, DMVPN, GET VPN and Easy VPN
- Supports 3G wireless WAN modules for WAN backup or primary connectivity
- Intelligent power management with optional PoE for modules
- Routing and services support includes IPv4/IPv6, OSPF, EIGRP, BGP, QoS, MPLS, NetFlow, IP SLA and EEM
- Mini-Type B USB console port alongside RJ-45 console and auxiliary ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Onboard LAN/WAN ports: 2 x 10/100/1000 RJ-45
- EHWIC slots: 2 (1 doublewide slot can be used instead)
- Memory (DDR2 DRAM): 512 MB default and maximum
- Internal USB/CF flash: 256 MB default and maximum
- External USB flash slot (Type A): 1
- USB console port (mini-Type B): 1
- Serial console and auxiliary ports: 1 each, up to 115.2 kbps
- Encryption: embedded hardware acceleration for IPsec and SSL
- Concurrent services throughput: up to 15 Mbps
- Power supply: internal AC, 100-240V, 47-63 Hz
- Typical power with no modules: 25 W
- Maximum power capacity with AC supply: 60 W
- Maximum power with PoE adapter: 70 W platform, 80 W PoE device power
- Redundant power supply: not supported
- Dimensions (H x W x D): 4.45 x 34.29 x 29.21 cm
- Rack height: 1 RU, 19 in rack-mount kit optional, wall-mount supported
- Weight with AC supply (no modules): 6.75 lb
- Operating temperature: 0 to 40 C (up to 1800 m)
- Operating humidity: 10 to 85% RH
- Storage temperature: -40 to 70 C
FAQs
Q: Which licences does the AX bundle include?
A: The AX bundle includes the IP Base licence together with the SEC (Security) and APP (Application Experience) licences. The DATA licence is a separate option.
Q: What power supply does this model use?
A: This AX SKU is an AC model with an internal 100-240V supply, 47-63 Hz. An optional external PoE power adapter (PWR-1900-POE) is available for powering PoE modules. Redundant power supplies are not supported.
Q: Which modules does the 1921 support?
A: It supports EHWIC, HWIC, HWIC-D, WIC and VWIC modules, including 3G WWAN EHWIC cards and EtherSwitch HWIC modules. One doublewide HWIC-D module uses both EHWIC slots.
Q: How does this SKU differ from other 1921 models?
A: The C1921-AX/K9 is the AX bundle with IP Base, SEC and APP licences, 256 MB flash and 512 MB DRAM. DC-powered versions are sold as a separate SKU.
Q: What WAN speeds is the 1921 suited to?
A: It is designed for branch sites with concurrent-services throughput up to about 15 Mbps.
