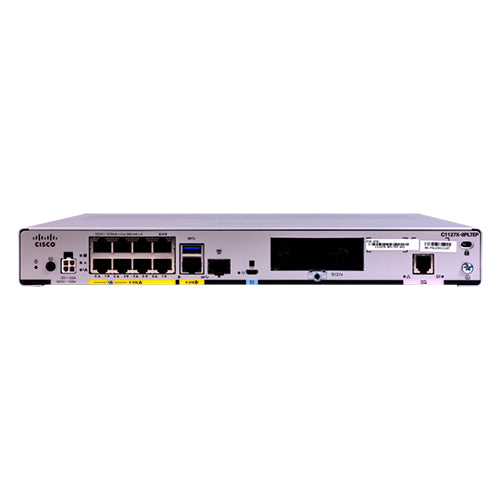

• Cisco C1127X-8PLTEP router with 8x 1G LAN PoE+ ports and LTE
1 1

Cisco

Cisco C1127X-8PLTEP | ISR 1100X 8-Port PoE+ Router, xDSL/SFP WAN, LTE Pro

C1127X-8PLTEP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1127X-8PLTEP is a compact ISR 1100X branch router delivering integrated connectivity, security, and SD-WAN capabilities for small to medium enterprise branches. It features 8 Gigabit LAN ports with PoE+ support, dual WAN options via xDSL and 1G SFP, and embedded LTE Advanced Pro cellular with GPS and SMS for primary or failover connectivity. With 8GB DRAM and flash, it supports application hosting and advanced security features for mission-critical branch deployments.

Features

Integrated 8-port Gigabit Ethernet switch with PoE/PoE+ for powering IP phones, cameras, and access points
- ADSL2/VDSL2+ (Annex A) WAN interface for broadband DSL connectivity
- Pluggable LTE Advanced Pro (CAT18) cellular module with GPS and SMS for primary or failover WAN
- 1G SFP combo WAN port for fiber or Ethernet uplink flexibility
- 8GB DRAM and 8GB flash memory for application hosting and advanced SD-WAN security
- SD-WAN support with application-aware routing, policy-based control, and zero-touch provisioning
- Zone-based firewall with advanced security features available via licensing
- Hardware-accelerated IPsec VPN, DMVPN, and GETVPN for secure site-to-site connectivity
- Comprehensive routing protocol support including OSPF, BGP, EIGRP, HSRP, and VRRP
- NETCONF/RESTCONF APIs and telemetry for programmable network automation
- Cisco IOS XE operating system for consistent enterprise features and manageability
- Plug-and-Play zero-touch deployment for simplified branch rollouts
- Integrated Micro USB console port for local management
- Cisco DNA Center integration for centralized orchestration and visibility
- Compact desktop/wall-mount form factor with optional rack-mount kit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

LAN Ports: 8x Gigabit Ethernet RJ45 with PoE+ (IEEE 802.3at) support - 4 PoE ports, 2 PoE+ ports
- WAN Interfaces: 1x ADSL2/VDSL2+ (Annex A), 1x GE/SFP combo port
- Cellular: Pluggable LTE Advanced Pro (CAT18) module with GPS and SMS capability
- Memory: 8GB DRAM, 8GB Flash (X model for app hosting and SD-WAN Advanced Security)
- Throughput: 250 Mbps IPsec encryption throughput (single tunnel, IMIX)
- Switching: Integrated 8-port Gigabit Ethernet switch
- Software: Cisco IOS XE (minimum version 16.11.1)
- Management: CLI, WebUI, NETCONF/RESTCONF, telemetry, Plug-and-Play zero-touch provisioning
- Routing Protocols: OSPF, IS-IS, RIP-1/2, BGP, EIGRP, HSRP, VRRP, DVMRP
- VPN: IPsec, L2TPv3, DMVPN, GETVPN with hardware acceleration
- Power: External AC adapter (PoE budget dependent on optional PSU module)
- Form Factor: Desktop/wall-mount with optional rack kit
- Console: Integrated Micro USB console port

FAQs

Q: What WAN connectivity options does the C1127X-8PLTEP support?
A: This router provides three WAN options: ADSL2/VDSL2+ for DSL broadband, a 1G SFP combo port for fiber or Ethernet WAN, and a pluggable LTE Advanced Pro cellular module for primary or backup connectivity, making it ideal for flexible branch deployment scenarios.

Q: Does this model support SD-WAN deployment?
A: Yes, the C1127X-8PLTEP features 8GB DRAM and flash specifically for SD-WAN Advanced Security support. It provides application-aware routing, zero-touch provisioning, policy-based WAN optimization, and integrates with Cisco DNA Center and SD-WAN controllers.

Q: How many devices can be powered via PoE on this router?
A: The 8-port model supports PoE/PoE+ on up to 6 ports: 4 ports provide PoE (IEEE 802.3af) and 2 ports provide PoE+ (IEEE 802.3at). The total PoE budget depends on the optional external power supply module selected (typically 150W or higher PSU required).

Q: What is the GPS and SMS functionality used for?
A: The pluggable cellular module includes GPS for location tracking and geo-fencing, plus SMS capability for out-of-band management and alerting. This is valuable for mobile deployments, remote site monitoring, fleet management, and scenarios requiring physical asset tracking or alternative management channels.

Q: Is the C1127X-8PLTEP suitable for industrial or outdoor environments?
A: This is a desktop/rack-mount branch router designed for indoor office environments. For harsh industrial, outdoor, or temperature-extreme deployments, consider Cisco's Industrial Ethernet or ruggedized router platforms which offer extended operating temperature ranges and industrial certifications.
