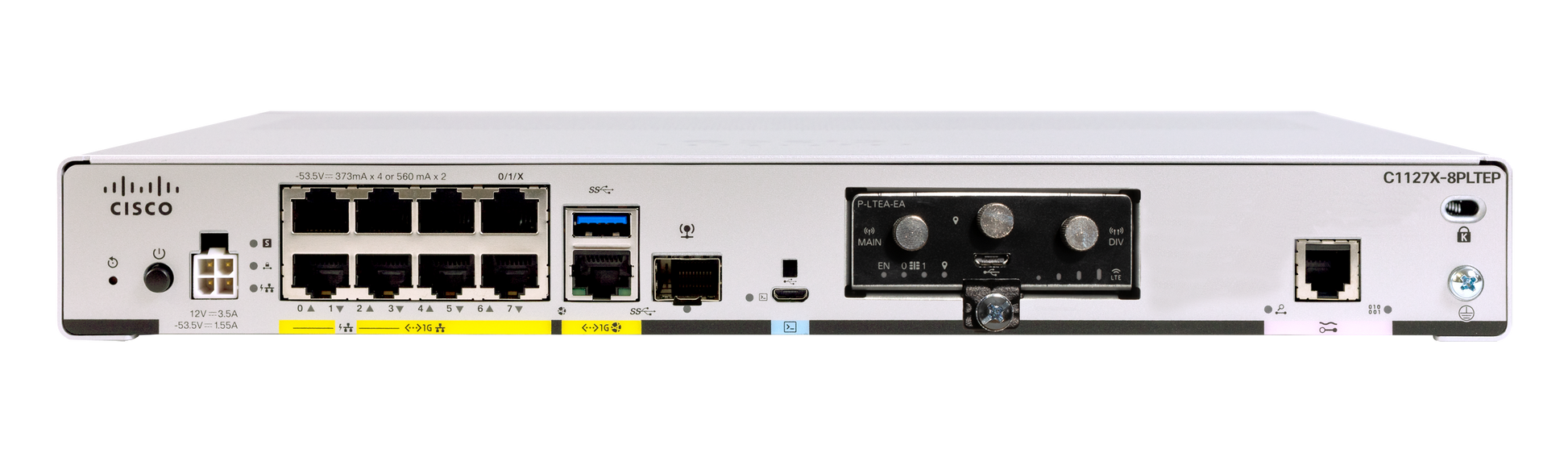

• Cisco C1127-8PMLTEP ISR 1100 router with 8x 1G PoE+ LAN ports
1 1

Cisco

Cisco C1127-8PMLTEP | ISR 1100 Router, 8-Port Gigabit PoE+, VDSL2+/LTE

C1127-8PMLTEP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1127-8PMLTEP is an ISR 1100 Series integrated services router designed for small to medium enterprise branch offices requiring multi-WAN connectivity. It combines 8 Gigabit Ethernet LAN ports with optional PoE/PoE+ support, ADSL2/VDSL2+ Annex M DSL connectivity, pluggable LTE Advanced cellular module, and a Gigabit Ethernet WAN/SFP combo port. With 8GB DRAM and 8GB flash, this platform supports SD-WAN Advanced Security features, app-hosting capabilities, and delivers encrypted throughput up to 650 Mbps for secure branch networking.

Features

Cisco IOS XE Software with universal image supporting multiple technology packages
- SD-WAN Advanced Security support with 8GB DRAM/flash configuration
- Multi-WAN connectivity: Gigabit Ethernet, VDSL2+ Annex M DSL, and LTE Advanced cellular
- App-hosting capabilities for running containerized network applications
- Integrated 8-port Gigabit Ethernet switch with optional PoE/PoE+ support
- Pluggable LTE Advanced (Category 6) cellular module with SMS/GPS capability
- VPN performance: 650 Mbps encrypted throughput (single tunnel, IMIX)
- Flexible deployment: traditional IOS XE routing or controller-managed SD-WAN mode
- Layer 2 and Layer 3 routing with advanced security features
- Integrated firewall, VPN, intrusion prevention (with appropriate licensing)
- Quality of Service (QoS) for traffic prioritization and bandwidth management
- High availability with cellular failover and dual WAN options
- Compact desktop form factor with optional rack-mount kit
- USB port for 4G LTE dongle or storage (additional connectivity options)
- Micro USB console for simplified management and initial configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

LAN Ports: 8x Gigabit Ethernet (4 PoE/2 PoE+ capable)
- WAN Interfaces: 1x Gigabit Ethernet/SFP combo port, 1x ADSL2/VDSL2+ Annex M, Pluggable LTE Advanced (CAT6) cellular module
- Memory: 8GB DRAM
- Flash Storage: 8GB
- Maximum Encrypted Throughput: 650 Mbps (single tunnel, IMIX)
- Management: Cisco IOS XE, micro USB console, CLI/web interface
- Software: Cisco IOS XE (minimum version 16.11.1)
- App Hosting: Supported with 8GB DRAM/flash configuration
- Mounting: Desktop or rack-mount (with optional kit)
- Power: External AC adapter
- Connectivity: USB port, micro USB console, SMS/GPS capable with cellular module

FAQs

Q: What WAN connectivity options does the C1127-8PMLTEP support?
A: This router offers three WAN connectivity options: a Gigabit Ethernet/SFP combo port for fiber or copper uplinks, an ADSL2/VDSL2+ port with Annex M support for DSL broadband, and a pluggable LTE Advanced (Category 6) cellular module for 4G wireless backup or primary connectivity. This multi-WAN design provides redundancy and failover capabilities for branch offices.

Q: How many PoE/PoE+ ports are available on this model?
A: The C1127-8PMLTEP has optional PoE/PoE+ capability on the 8 Gigabit Ethernet LAN ports, supporting up to 4 PoE ports or 2 PoE+ ports. This allows you to power IP phones, wireless access points, or IP cameras directly from the router, eliminating the need for separate power supplies at the edge.

Q: What is the difference between the base model and the 8GB version?
A: The C1127-8PMLTEP (also referenced as C1127X-8PMLTEP) comes with 8GB DRAM and 8GB flash, enabling SD-WAN Advanced Security support and app-hosting capabilities. Base models with 4GB DRAM/flash do not support these advanced features. The 8GB configuration is required for running containerized applications and advanced SD-WAN functions.

Q: Can this router be used for SD-WAN deployments?
A: Yes, the C1127-8PMLTEP is designed for SD-WAN deployments and supports both traditional Cisco IOS XE routing and controller-managed Cisco IOS XE SD-WAN software. The 8GB DRAM and flash configuration specifically enables SD-WAN Advanced Security features, including encrypted VPN tunnels, application-aware routing, and centralized policy management.

Q: What software licenses are needed for this router?
A: The Cisco ISR 1100 Series uses right-to-use licensing with technology packages including IP Base (default), Application Experience (APP), Unified Communications (UC), and Security (SEC). Advanced features are enabled by activating software licenses on the universal Cisco IOS XE image. The specific license requirements depend on your deployment needs, such as advanced security, VPN performance acceleration, or unified communications features.
