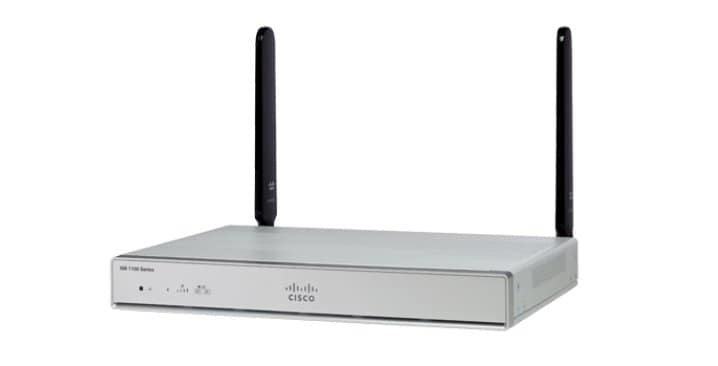

Cisco C1127-8PLTEP | ISR 1100 Router, 8-Port GE PoE, xDSL, SFP, LTE
SKU:C1127-8PLTEP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco ISR 1100 C1127-8PLTEP is a compact branch-office Integrated Services Router from the ISR 1000 family. It suits small to medium businesses, enterprise branch offices and managed-service deployments that need DSL plus LTE or SFP WAN resilience alongside an integrated 8-port Gigabit LAN.
The LAN side provides eight Gigabit Ethernet copper ports with optional PoE and PoE+ (4 PoE or 2 PoE+ ports). WAN connectivity comes from one Gigabit combo copper/SFP port, one ADSL2+/VDSL2+ port (Annex A, POTS) and a pluggable cellular module slot with dual micro SIM sockets on the cellular module. This variant has 4 GB DRAM and 4 GB flash. Maximum encrypted throughput is 650 Mbps for a single tunnel (IMIX), with SD-WAN IPsec throughput up to 700 Mbps at 512B packets.
It accepts Cisco pluggable cellular modules (LTE CAT4, CAT6, CAT7 and CAT18, with 5G NSA from IOS XE 17.9.2a and 5G SA from 17.12.1a) and a standard Gigabit SFP in the combo WAN port. It runs traditional Cisco IOS XE (minimum 16.11.1) or controller-managed IOS XE SD-WAN (minimum 17.2.1).
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs traditional Cisco IOS XE or controller-managed Cisco IOS XE SD-WAN
- Combines routing, switching, integrated security and DSL plus LTE uplink options in one compact device
- Management via Catalyst SD-WAN Manager, Cisco DNA Center, Cisco Security Cloud Control or the embedded WebUI
- Cellular failover between primary and backup link with dual SIM support
- Remote SMS-initiated callback, remote firmware upgrade and SIM lock/unlock on cellular modules
- Optional embedded NGFW managed through Cisco Security Cloud Control
- Pay-as-you-grow model for network capacity
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- LAN ports: 8 x Gigabit Ethernet copper
- WAN ports: 1 x Gigabit combo (copper/SFP) plus 1 x ADSL2/VDSL2+ (Annex A POTS)
- Cellular: 1 x pluggable module slot (LTE CAT4, CAT6, CAT7, CAT18)
- 5G support: NSA from IOS XE 17.9.2a, SA from 17.12.1a
- DRAM and flash: 4 GB / 4 GB
- Console: 1 x Micro-USB
- USB: 1 x Type A USB 3.0
- PoE: 4 PoE or 2 PoE+ ports with 150 W external power supply
- Max encrypted throughput (single tunnel, IMIX): 650 Mbps
- SD-WAN IPsec throughput (512B): up to 700 Mbps
- SD-WAN overlay tunnels: 200
- Autonomous mode IPv4 forwarding throughput (512B): up to 1600 Mbps
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K, IPv6 routes: 260K
- NAT sessions: 100K, VRFs: 1K
- Dimensions (H x W x D): 41.9 x 322.6 x 226.1 mm
- Weight: 2.05 kg
- Maximum power consumption: 24.6 W
- External power supply: 100-240 VAC, 12 VDC output, 66 W max
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 85% RH (non-condensing)
- Minimum software: Cisco IOS XE 16.11.1 (XE SD-WAN 17.2.1)
FAQs
Q: Does this router need a licence for the embedded WebUI?
A: No. The embedded WebUI can be used without a licence. Any SD-WAN or DNA subscription requirements depend on how you choose to manage and deploy the router.
Q: What power supply does it need for PoE?
A: Standard operation uses an external AC adapter (100-240 VAC, 12 VDC output, 66 W max). To use the optional PoE or PoE+ ports (4 PoE or 2 PoE+ across the 8 LAN ports), a 150 W external power supply is required.
Q: Which cellular modules and SFPs does it work with?
A: It accepts Cisco pluggable cellular modules in LTE CAT4, CAT6, CAT7 and CAT18, with 5G NSA from IOS XE 17.9.2a and 5G SA from 17.12.1a. The combo WAN port takes a standard Gigabit SFP.
Q: Which DSL standards are supported?
A: This model supports ADSL, ADSL2 and ADSL2+ Annex A (POTS), plus VDSL2 profiles including 8a, 12a and 17a with vectoring and dying gasp.
Q: Which software does it run?
A: It runs Cisco IOS XE in autonomous mode (minimum 16.11.1) or controller-managed IOS XE SD-WAN (minimum 17.2.1).
