Cisco C1121-4PLTEP | ISR 1100 Router, 4-Port PoE+, Dual SFP, LTE Slot
SKU:C1121-4PLTEP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

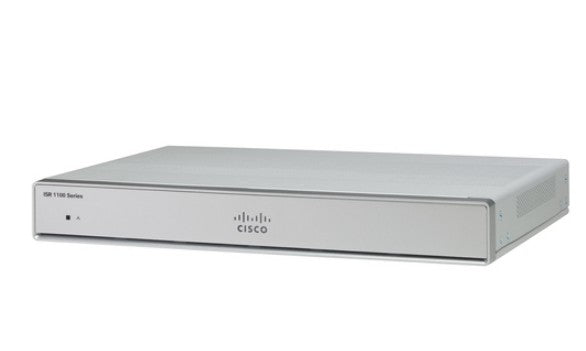

The Cisco ISR 1100 C1121-4PLTEP is a compact branch router in the Cisco 1000 Series Integrated Services Routers range. It suits small branch and remote offices, retail stores, clinics and SOHO sites that need routing, switching, integrated security and cellular WAN backup or primary connectivity, and it also works as an SD-WAN edge device or for voice survivability with CUBE and SRST.
The router provides four Gigabit Ethernet LAN ports and two Gigabit Ethernet WAN ports, one copper and one combo copper/SFP, plus a pluggable cellular module slot for LTE or 5G modules. It carries 4 GB DRAM and 4 GB flash, and has no Wi-Fi or DSL. PoE and PoE+ output is available on the LAN ports as an option with the 115 W power supply and the ISR-1100-POE2 adapter, giving 2 PoE ports or 1 PoE+ port. Maximum encrypted throughput is 650 Mbps (single tunnel, IMIX).
It ships with the IP Base technology package, and application, unified communications and security technology licences plus performance licences can be enabled through Smart Licensing. It can run traditional Cisco IOS XE or IOS XE SD-WAN, and supports genuine Cisco SFPs such as GLC-SX-MM(D), GLC-LH-SM(D) and GLC-T, along with the ACS-1100-RM2-19 rack-mount kit.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Combines routing, switching and integrated security in a compact small-office form factor
- Choice of traditional Cisco IOS XE or controller-managed IOS XE SD-WAN
- Pluggable cellular module for LTE or 5G WAN uplink or failover, with dual micro-SIM and automatic SIM failover
- Optional PoE and PoE+ on LAN ports
- Management through WebUI, Cisco DNA Center or Catalyst SD-WAN Manager
- On-box security including zone-based firewall, IPsec VPN, DMVPN, FlexVPN and Cisco Umbrella integration
- Supports Cisco Unified Border Element (CUBE) and SRST for voice
- Pay-as-you-grow performance and technology licensing
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- LAN ports: 4 x Gigabit Ethernet (copper)
- WAN ports: 2 x Gigabit Ethernet (1 copper + 1 combo copper/SFP)
- Cellular: pluggable module slot (LTE CAT4/CAT6/CAT7/CAT18, 5G options)
- Wi-Fi (802.11ac): No
- DSL: No
- DRAM / flash: 4 GB / 4 GB
- PoE option: 2 PoE or 1 PoE+ port on LAN, requires 115 W power supply
- USB: 1 x Type A USB 3.0
- Console: 1 x Micro-USB
- Maximum encrypted throughput (single tunnel, IMIX): 650 Mbps
- SD-WAN IPsec throughput (512B): up to 450 Mbps
- Autonomous mode IPv4 forwarding throughput (512B): up to 1600 Mbps
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- NAT sessions: 100K
- Maximum power consumption: 23.5 W (excluding external power supply loss)
- External power supply: 100-240 VAC input, 12 VDC output, 66 W maximum
- Dimensions (H x W x D): 1.65 x 10.80 x 7.85 in.
- Weight: 3.70 lb (1.68 kg)
- Operating temperature: 0 to 40 C at sea level
FAQs
Q: What licensing does the C1121-4PLTEP use?
A: It ships with the IP Base technology package. Optional application, unified communications and security technology licences and performance licences are enabled through Smart Licensing.
Q: What is needed to use PoE or PoE+ on the LAN ports?
A: PoE output requires the 115 W power supply and the ISR-1100-POE2 internal adapter. This provides 2 PoE ports or 1 PoE+ port across the four LAN ports.
Q: Which cellular modules work with this router?
A: The pluggable slot supports modules including P-LTE-VZ, P-LTE-US, P-LTE-GB, P-LTE-MNA, P-LTEA-EA/LA, P-LTEA7-NA/EAL/JP, P-LTEAP18-GL, P-5GS6-GL and P-5GS6-R16-SA.
Q: Which SFPs can be fitted to the combo WAN port?
A: Compatible Cisco SFPs include GLC-SX-MM(D), GLC-LH-SM(D), GLC-ZX-SM(D), GLC-T/TE and SFP-GE-S/T, as well as CWDM, DWDM and 100M SFPs.
Q: Can it run in SD-WAN mode?
A: Yes. It can run IOS XE SD-WAN from version 17.2.1 onward, managed through Catalyst SD-WAN Manager, or run traditional IOS XE managed through the WebUI or Cisco DNA Center.
