Cisco C1116-4P | ISR 1000 Router, 4x GE LAN, 1x GE WAN, VDSL2/ADSL2+
SKU:C1116-4P
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

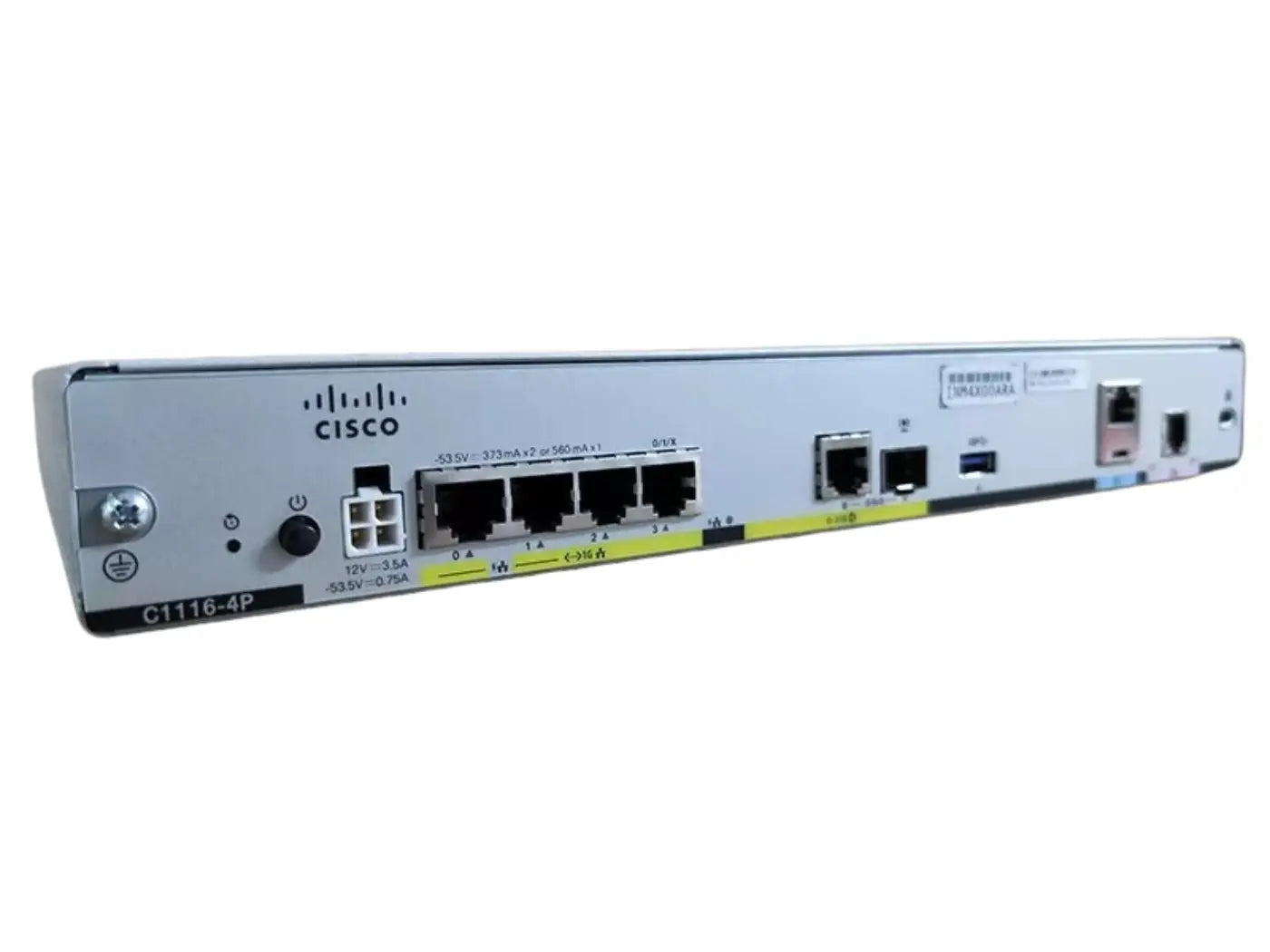

The Cisco 1000 Series Integrated Services Router C1116-4P is a compact, fanless branch and small-office router with an integrated VDSL2/ADSL2+ (Annex B/J) DSL WAN port. It suits small offices, retail stores, clinics and remote branches that terminate a DSL service and want routing and LAN switching in one unit, and it runs either traditional Cisco IOS XE or controller-managed IOS XE SD-WAN software.
This variant has four Gigabit Ethernet LAN ports and one Gigabit Ethernet WAN port alongside the DSL port. It has no integrated LTE and no Wi-Fi. It carries 4 GB DRAM and 4 GB flash. In SD-WAN mode, IPsec throughput (512B) reaches up to 450 Mbps. In autonomous mode, IPv4 forwarding (512B) reaches up to 1600 Mbps and IPsec (512B) up to 500 Mbps. The LAN ports can be upgraded to provide PoE on two ports and PoE+ on one with the larger 115 W external power supply.
The router is managed through the local WebUI, Cisco Catalyst SD-WAN Manager or Cisco DNA Center in autonomous mode. It is SD-WAN ready, with Essentials and Advantage licence tiers.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Choice of traditional Cisco IOS XE or controller-managed IOS XE SD-WAN software
- Routing, switching and DSL WAN uplink in a compact fanless form factor
- VDSL2 vectoring and dying gasp support on the DSL port
- Optional PoE and PoE+ on the LAN ports with a higher-rated external power supply
- On-box security options including NGFW, IPS/IDS, AMP, URL filtering and Cisco Umbrella SIG
- Management through local WebUI, Catalyst SD-WAN Manager or Cisco DNA Center
- USB 3.0 Type A port for external storage
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- LAN ports: 4 x Gigabit Ethernet (copper)
- WAN ports: 1 x Gigabit Ethernet (copper, or GE combo copper/SFP)
- DSL port: 1 x integrated VDSL2/ADSL2+ (Annex B/J ISDN)
- LTE: None
- Wi-Fi: None
- Memory: 4 GB DRAM / 4 GB flash
- SD-WAN IPsec throughput (512B): up to 450 Mbps
- SD-WAN profile throughput (IPsec, QoS, DPI, NetFlow, 512B): up to 200 Mbps
- Autonomous mode IPv4 forwarding (512B): up to 1600 Mbps
- Autonomous mode IPsec throughput (512B): up to 500 Mbps
- SD-WAN overlay tunnels: 200
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- USB: 1 x USB 3.0 Type A
- Console: Micro-USB/RJ-45
- Dimensions (H x W x D): 4.45 x 32.26 x 22.94 cm
- Weight: 1.98 kg
- Maximum power consumption: 22 W (excluding external power supply loss)
- External power supply: 100 to 240 VAC, 50 to 60 Hz input, 12 VDC output, 66 W maximum
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 10% to 85% non-condensing
FAQs
Q: Does this router need a licence for SD-WAN?
A: It is SD-WAN ready and uses the Cisco DNA or Catalyst SD-WAN subscription model with Essentials and Advantage tiers. The local WebUI can be used without a licence.
Q: Which DSL standards does it support?
A: The DSL port supports VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b and 17a with vectoring, plus ADSL Annex A, B and M. It is the Annex B/J ISDN variant.
Q: Can it provide PoE to connected devices?
A: PoE is an optional upgrade, with two PoE ports and one PoE+ port on the four LAN ports. It requires the larger 115 W external power supply.
Q: Which software does it run?
A: It runs Cisco IOS XE (minimum 16.6.1 for the remaining 111x models) or IOS XE SD-WAN. Check the Cisco SD-WAN Device Compatibility Matrix for the minimum SD-WAN version.
Q: Does this model include LTE or Wi-Fi?
A: No. This base model has no integrated LTE and no Wi-Fi, so WAN connectivity is through the DSL port and the Gigabit Ethernet WAN port.
