Cisco

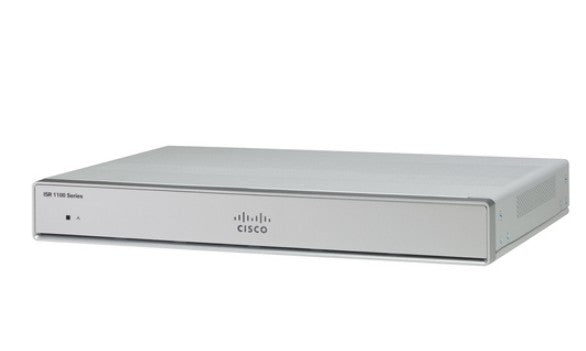

Cisco C1112-8P | ISR 1100 Router, 8x GE LAN, G.fast DSL, GE SFP Combo WAN

SKU:C1112-8P

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 1100 C1112-8P is a compact, fanless Integrated Services Router built for small branch offices, retail stores, clinics and remote sites that need DSL termination alongside integrated switching. It combines routing, an 8-port Gigabit Ethernet LAN switch and a G.fast DSL WAN interface in one unit, and runs either traditional Cisco IOS XE or controller-managed IOS XE SD-WAN.

The C1112-8P provides 8 x GE LAN ports, one GE copper/SFP combo WAN port and one G.fast DSL WAN port, with no LTE and no Wi-Fi. Autonomous mode IPv4 forwarding reaches up to 1800 Mbps at 512B, with IPsec throughput up to 600 Mbps, and SD-WAN IPsec throughput up to 650 Mbps. PoE/PoE+ is available on the LAN ports through the optional ISR-1100-POE4 adapter and a 150W power supply, supporting 4 PoE or 2 PoE+ ports. It ships with an IP Base licence, with Application Experience, Unified Communications, Security and HSEC technology licences available as upgrades.

The combo WAN port accepts Cisco SFPs including GLC-SX-MM, GLC-LH-SM, GLC-ZX-SM and GLC-T. A rack-mount kit is available as ACS-1100-RM-19.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Combined router, 8-port switch and DSL WAN termination in one compact fanless device
- Runs traditional Cisco IOS XE or controller-managed IOS XE SD-WAN
- Manageable via WebUI, Cisco DNA Center or Catalyst SD-WAN Manager
- On-box security including zone-based firewall, IPS/IDS, Advanced Malware Protection, URL filtering and Cisco Umbrella
- Voice support with CUBE and SRST through the Unified Communications licence
- Optional PoE/PoE+ on LAN ports via the ISR-1100-POE4 adapter
- Smart Licensing with pay-as-you-grow performance upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- LAN ports: 8 x Gigabit Ethernet (copper)
- WAN ports: 1 x GE copper/SFP combo, 1 x G.fast DSL
- DSL: G.fast up to 106 MHz, Annex A/B/M, compatible with ADSL2/2+ and VDSL2
- LTE: No
- Wi-Fi 802.11ac: No
- USB: 1 x Type A USB 3.0
- Console: Micro-USB/RJ-45
- Memory: 4 GB DRAM, 4 GB flash
- Autonomous mode IPv4 forwarding throughput (512B): up to 1800 Mbps
- Autonomous mode IPsec throughput (512B): up to 600 Mbps
- SD-WAN IPsec throughput (512B): up to 650 Mbps
- SD-WAN overlay tunnels: 200
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- PoE standards: 802.3af PoE, 802.3at PoE+
- Optional PoE capacity: 4 PoE or 2 PoE+ ports with ISR-1100-POE4 and 150W PSU
- External power supply: 100-240 VAC, 50-60 Hz input, 12 VDC output, 66 W maximum
- Maximum power consumption: 35.3 W
- Dimensions (H x W x D): 1.75 x 12.70 x 9.015 in.
- Weight: 1.98 kg (4.37 lb)
- Operating temperature: 0 to 40 C
- Minimum IOS XE version: 16.8.1

FAQs

Q: What licence does the C1112-8P ship with?
A: It ships with the IP Base licence. Optional technology licences include Application Experience, Unified Communications, Security and HSEC, and SD-WAN uses Cisco DNA subscription tiers. Smart Licensing requires a Smart Account.

Q: How do I get PoE on the LAN ports?
A: PoE needs the optional ISR-1100-POE4 internal adapter together with a 150W power supply. This provides 4 PoE or 2 PoE+ ports on the 8 LAN ports.

Q: Which SFPs work in the combo WAN port?
A: The GE SFP/copper combo WAN port supports Cisco SFPs such as GLC-SX-MM, GLC-LH-SM, GLC-ZX-SM, GLC-TE and GLC-T, as well as BX, CWDM and DWDM SFPs.

Q: How does this model differ from other ISR 1100 SKUs?
A: The C1112-8P has 8 x GE LAN ports, a G.fast DSL WAN port plus a GE SFP/copper combo WAN port, and has no LTE and no Wi-Fi.

Q: Can it run SD-WAN?
A: Yes. It can run controller-managed IOS XE SD-WAN, managed through Catalyst SD-WAN Manager, with up to 200 overlay tunnels and up to 650 Mbps of SD-WAN IPsec throughput at 512B.
