Cisco

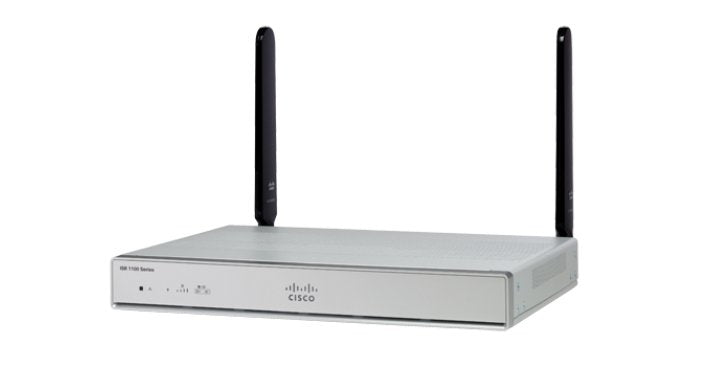

Cisco C1111-8PLTELAWZ | ISR 1100 8-Port PoE+ Router, LTE Advanced, Wi-Fi 5

SKU:C1111-8PLTELAWZ

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 1100 is a compact, fanless branch router that combines routing, an 8-port Gigabit switch, an embedded LTE Advanced CAT6 modem and an 802.11ac Wave 2 access point in one unit. It suits small branch offices, retail stores, clinics and remote sites that need cellular failover alongside a wired WAN, and it runs Cisco IOS XE in either autonomous or SD-WAN controller mode.

This variant provides 8 Gigabit LAN ports with optional PoE/PoE+ and 2 Gigabit WAN ports, one of which is a copper/SFP combo. The cellular modem is the LTELA variant for LATAM and APAC bands, and the Wi-Fi radio is 2x2:2 MIMO up to 867 Mbps in regulatory domain Z (Australia, Brazil, New Zealand). Autonomous mode IPsec throughput reaches up to 600 Mbps and SD-WAN IPsec throughput up to 650 Mbps (512B). The default IP Base technology licence covers routing protocols, ACL, NAT, QoS, BFD, VRF Lite and IPSLA.

The combo WAN port accepts SFPs such as GLC-SX-MM, GLC-LH-SM and GLC-T, along with CWDM and DWDM modules. A 19-inch rack-mount kit, ACS-1100-RM-19, is available for the 1100 series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single Cisco IOS XE universal image, run as traditional IOS XE or controller-managed IOS XE SD-WAN
- Management through WebUI, Cisco DNA Center (autonomous mode) or Catalyst SD-WAN Manager
- Automatic failover from the primary WAN link to the LTE backup link
- LTE support for multiple profiles, remote firmware upgrade over LTE, SIM lock/unlock and dual SIM
- Embedded 802.11ac Wave 2 access point with Mobility Express support
- Licensed security options include zone-based firewall, IPsec VPN, DMVPN, FlexVPN, IPS/IDS and Cisco Umbrella
- Voice support with Cisco Unified Border Element and SRST under a UC licence
- Smart Licensing supported, with DNA subscriptions for SD-WAN mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- LAN ports: 8 x GE (copper)
- WAN ports: 2 x GE (1 copper/SFP combo + 1 copper)
- PoE option: 4 PoE or 2 PoE+ ports via ISR-1100-POE4 upgrade
- PoE standards: 802.3af, 802.3at
- Cellular: embedded LTE Advanced CAT6, LTELA (LATAM and APAC bands)
- Wireless LAN: 802.11ac Wave 2, 2x2:2 MIMO, up to 867 Mbps
- Wi-Fi regulatory domain: Z (Australia, Brazil, New Zealand)
- Autonomous mode IPv4 forwarding throughput (512B): up to 1800 Mbps
- Autonomous mode IPsec throughput (512B): up to 600 Mbps
- SD-WAN IPsec throughput (512B): up to 650 Mbps
- SD-WAN overlay tunnels: 200
- DRAM / Flash: 4 GB / 4 GB
- IPv4 routes: 280K
- NAT sessions: 100K
- Power supply: external AC adapter, 100 to 240 VAC, 12 VDC output, 66 W maximum
- PoE power requirement: 150 W power supply (ISR-1100-POE4)
- Dimensions (H x W x D): 4.45 x 32.26 x 24.38 cm
- Weight: 2.22 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 85% RH non-condensing
- Other ports: Type A USB 3.0, micro-USB/RJ-45 console

FAQs

Q: Which licence does this router run?
A: It runs the IP Base technology package by default, covering routing protocols, ACL, NAT, QoS, BFD, VRF Lite and IPSLA. Optional APP, UC and SEC licences add further capabilities, and SD-WAN mode uses Cisco DNA subscriptions.

Q: How are the LAN ports powered for PoE?
A: PoE/PoE+ on the LAN ports needs the optional ISR-1100-POE4 upgrade with a 150 W power supply. That provides 4 PoE ports or 2 PoE+ ports. The standard external adapter is 12 VDC at 66 W.

Q: Which SFPs work in the combo WAN port?
A: Supported genuine Cisco SFPs include GLC-SX-MM, GLC-LH-SM, GLC-EX-SMD, GLC-ZX-SM, GLC-T and GLC-TE, as well as SFP-GE-S, SFP-GE-T and CWDM or DWDM modules.

Q: Can it run in SD-WAN mode?
A: Yes. It supports controller-managed IOS XE SD-WAN with up to 200 overlay tunnels, managed through Catalyst SD-WAN Manager, using Cisco DNA subscriptions.

Q: How does this variant differ from other ISR 1100 8-port models?
A: This is the LTELA model with an embedded LTE Advanced CAT6 modem for LATAM and APAC bands, 802.11ac Wi-Fi in domain Z, 8 LAN ports and dual Gigabit WAN.
