Cisco

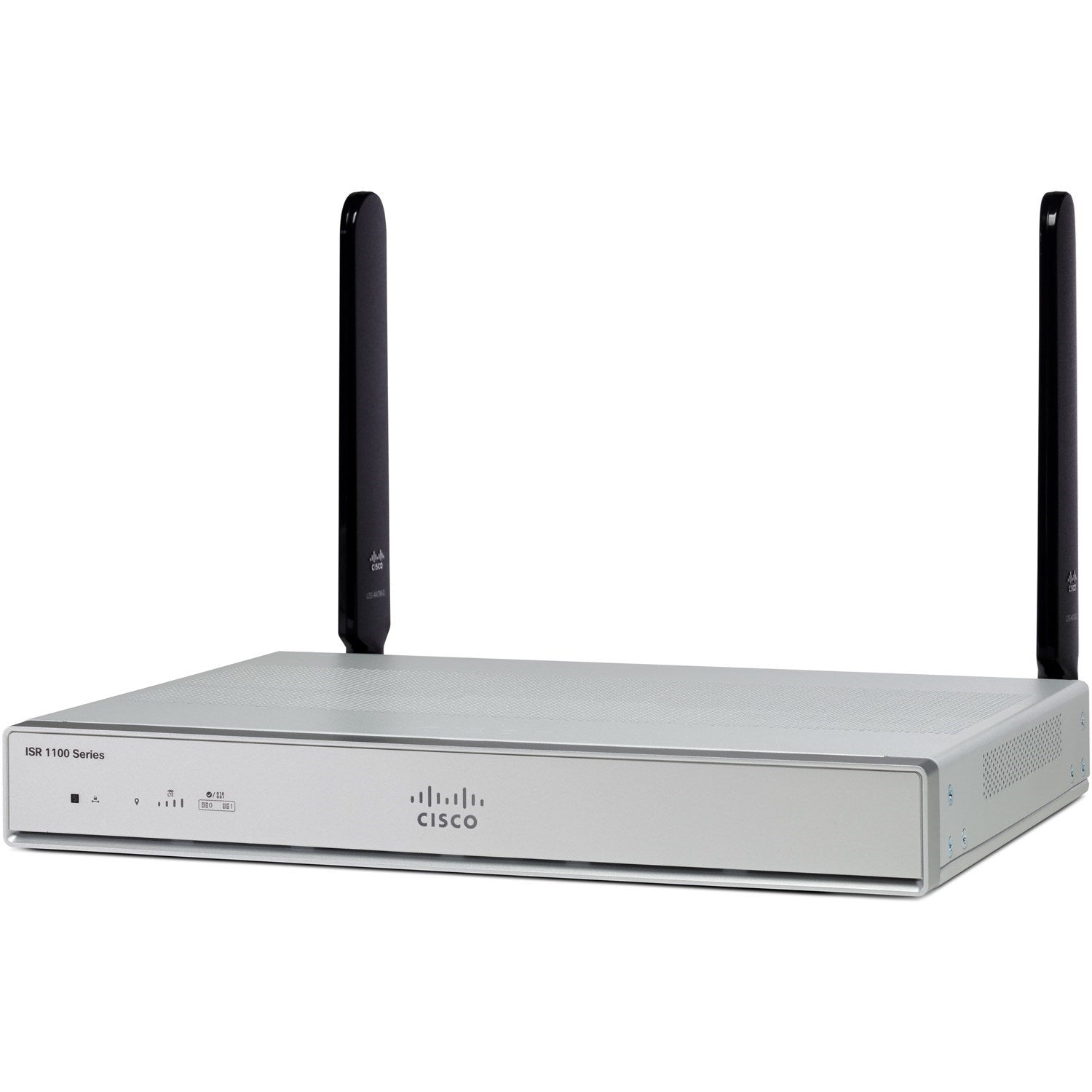

Cisco C1111-8PLTELA | ISR 1100 Router, 8-Port GE, LTE-A CAT6 (LATAM/APAC)

SKU:C1111-8PLTELA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 1100 8P LTE Advanced router is a compact, fanless integrated services router from the ISR 1000 Series, built for small branch and remote offices, retail stores, clinics and SOHO deployments. This LTELA variant carries an embedded CAT6 LTE Advanced modem for the LATAM and APAC regions, giving the site a cellular link as primary WAN or automatic backup. It runs either traditional Cisco IOS XE or controller-managed IOS XE SD-WAN.

The router provides 8 Gigabit Ethernet LAN ports and 2 Gigabit Ethernet WAN ports, one copper and one combo copper/SFP. An optional internal PoE adapter (ISR-1100-POE4) enables 4 PoE or 2 PoE+ ports for phones and access points. This model has no embedded Wi-Fi and uses 4 GB DRAM and 4 GB flash. SD-WAN IPsec throughput reaches up to 650 Mbps at 512B, and autonomous mode IPv4 forwarding reaches up to 1800 Mbps. It ships with IP Base, with Application Experience, Unified Communications and Security technology licences available, plus Cisco DNA subscription tiers for SD-WAN.

The WAN SFP port accepts GLC-series 1000BASE SX, LX, EX, ZX and BX modules, GLC-T and GLC-TE copper SFPs, 100BASE FX/LX/EX/ZX/BX, CWDM and DWDM SFPs. A rack-mount kit (ACS-1100-RM-19) and console adapter (CAB-CON-USBRJ45) are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs traditional Cisco IOS XE or controller-managed Cisco IOS XE SD-WAN
- Integrated routing, switching and LTE-A uplink in one fanless device
- Embedded CAT6 LTE with automatic failover between primary WAN and LTE backup
- On-box security including zone-based firewall, IPsec VPN, DMVPN, FlexVPN and GETVPN (SEC licence)
- Application Experience features including PfRv3, NBAR2 and AVC (APP licence)
- Unified Communications support for CME, SRST and CUBE (UC licence)
- Managed via WebUI, Cisco DNA Center, Catalyst SD-WAN Manager and Security Cloud Control
- Smart Licensing and Cisco DNA subscription tiers: Essentials, Advantage and Premier

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- LAN ports: 8 x Gigabit Ethernet
- WAN ports: 2 x Gigabit Ethernet (1 copper, 1 combo copper/SFP)
- Cellular: embedded LTE CAT6 (LTE-A), LA variant for LATAM and APAC
- Wi-Fi: not embedded
- DRAM / flash: 4 GB / 4 GB
- USB: 1 x Type A USB 3.0
- Optional PoE: 4 PoE or 2 PoE+ ports (ISR-1100-POE4)
- Inline PoE standards: 802.3af and 802.3at
- SD-WAN IPsec throughput (512B): up to 650 Mbps
- SD-WAN IPsec + QoS + DPI + Flexible NetFlow (512B): up to 250 Mbps
- SD-WAN overlay tunnels: 200
- Autonomous IPv4 forwarding (512B): up to 1800 Mbps
- Autonomous IPsec throughput (512B): up to 600 Mbps
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- Power input: 100-240 VAC, 50-60 Hz, 12 VDC output
- Maximum power consumption: 23.9 W
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 85% RH non-condensing
- Dimensions (H x W x D): 1.75 x 12.70 x 9.6 in
- Weight: 4.50 lb (2.04 kg)
- Minimum IOS XE (traditional): 16.6.1

FAQs

Q: Which licence does this router ship with?
A: It ships with IP Base by default. Optional technology licences include Application Experience (SL-1100-8P-APP), Unified Communications (SL-118-UC) and Security (SL-1100-8P-SEC). SD-WAN uses Cisco DNA subscriptions.

Q: How is PoE enabled on this router?
A: PoE and PoE+ require the optional internal adapter (ISR-1100-POE4) together with the 150 W power supply. This provides 4 PoE or 2 PoE+ ports on the LAN side.

Q: Which SFP modules work in the WAN SFP port?
A: The combo WAN port accepts GLC-series 1000BASE SX, LX, EX, ZX and BX SFPs, GLC-T and GLC-TE copper SFPs, 100BASE FX/LX/EX/ZX/BX, CWDM and DWDM SFPs.

Q: How does this model differ from other C1111-8P variants?
A: This is the LTELA variant with an embedded CAT6 LTE Advanced modem for LATAM and APAC. It has 8 LAN ports, no Wi-Fi and 4 GB DRAM and flash.

Q: Can it run in SD-WAN mode?
A: Yes. It runs either traditional Cisco IOS XE or controller-managed IOS XE SD-WAN, managed through Catalyst SD-WAN Manager.
