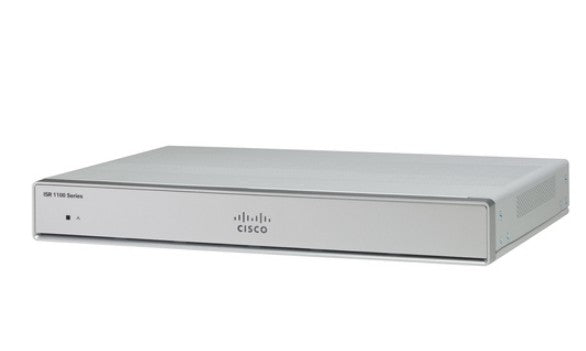

Cisco C1111-4PLTELA-DNA | ISR 1100 4-Port GE Router, LTE Advanced, DNA Bundle

SKU:C1111-4PLTELA-DNA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 1100 C1111-4PLTELA-DNA is a compact, fanless branch router from the Cisco 1000 Series Integrated Services Routers. It combines routing, a 4-port Gigabit Ethernet LAN switch and an embedded CAT6 LTE Advanced modem in one device, making it suited to small branches, remote offices, retail sites and clinics. The cellular modem is the LATAM and APAC variant and can serve as a primary or backup WAN where wired links are unavailable or need resilience.

On the WAN side it provides two Gigabit Ethernet ports, one copper and one combo copper/SFP. It has 4 GB DRAM and 4 GB flash, and delivers up to 1600 Mbps IPv4 forwarding in autonomous mode, up to 500 Mbps autonomous IPsec throughput and up to 450 Mbps SD-WAN IPsec throughput, all measured with 512-byte packets. The LAN ports are PoE-capable for powering edge devices. The -DNA suffix identifies a bundle with a Cisco DNA software subscription, and the router runs Cisco IOS XE or IOS XE SD-WAN.

Supported SFPs include GLC-SX-MM(D), GLC-LH-SM(D), GLC-EX-SMD and GLC-ZX-SM(D). The ACS-1100-RM-19 kit provides rack mounting and the ISR-1100-POE2 adapter provides PoE output. Management is available through the WebUI, Cisco DNA Center or Catalyst SD-WAN Manager.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Router, switch and cellular WAN combined in one compact fanless device
- Runs traditional Cisco IOS XE or controller-managed IOS XE SD-WAN
- Embedded LTE CAT6 for cellular primary or backup WAN with automatic failover
- On-box security including zone-based firewall, IPsec VPN, DMVPN, FlexVPN and GETVPN with the SEC licence
- Application visibility and control (NBAR2, AVC, PfRv3) with the APP licence
- Unified Communications support (CME, SRST, CUBE) with the UC licence
- Managed via WebUI, Cisco DNA Center or Catalyst SD-WAN Manager
- Smart Licensing support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- LAN ports: 4 x Gigabit Ethernet (copper)
- WAN ports: 2 x Gigabit Ethernet (1 copper, 1 combo copper/SFP)
- Cellular: Embedded LTE Advanced CAT6 (LATAM and APAC variant)
- Wi-Fi (802.11ac): None
- DRAM and flash: 4 GB / 4 GB
- USB: Type A USB 3.0 port
- Console: Micro-USB/RJ-45 console port
- PoE options: 2 PoE or 1 PoE+ (ISR-1100-POE2 with 115W power supply)
- SD-WAN IPsec throughput (512B): up to 450 Mbps
- SD-WAN overlay tunnels: 200
- Autonomous IPv4 forwarding throughput (512B): up to 1600 Mbps
- Autonomous IPsec throughput (512B): up to 500 Mbps
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- Power input: 100 to 240 VAC, 50 to 60 Hz
- Power supply output: 12 VDC, 66 W maximum
- PoE output voltage: -53.5 VDC
- Dimensions (H x W x D): 4.45 x 32.26 x 24.38 cm
- Weight: 2.04 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 85% RH (non-condensing)
- Minimum software: Cisco IOS XE 16.6.1

FAQs

Q: What does the -DNA suffix mean on this router?
A: It denotes a bundle that includes a Cisco DNA software subscription, which applies to SD-WAN and Smart Licensing. The router ships with IP Base as standard.

Q: Which licences can be added to this router?
A: Optional technology licences include APP (SL-1100-4P-APP), UC (SL-114-UC), SEC and SEC-NPE (SL-1100-4P-SEC and SL-1100-4P-SECNPE), VPERF and HSEC for IPsec performance.

Q: What is needed to use PoE on the LAN ports?
A: PoE output requires the ISR-1100-POE2 adapter and a 115W power supply. On this 4-port model that provides either 2 PoE ports or 1 PoE+ port.

Q: Which SFP modules work in the combo WAN port?
A: Supported SFPs include GLC-SX-MM(D), GLC-LH-SM(D), GLC-EX-SMD, GLC-ZX-SM(D), GLC-T and GLC-TE, as well as 100BASE and 1000BASE-BX variants and CWDM or DWDM SFPs.

Q: Can it be rack mounted?
A: Yes. It is a fanless unit that can sit on a desktop or be rack mounted using the ACS-1100-RM-19 rack-mount kit.
