Cisco

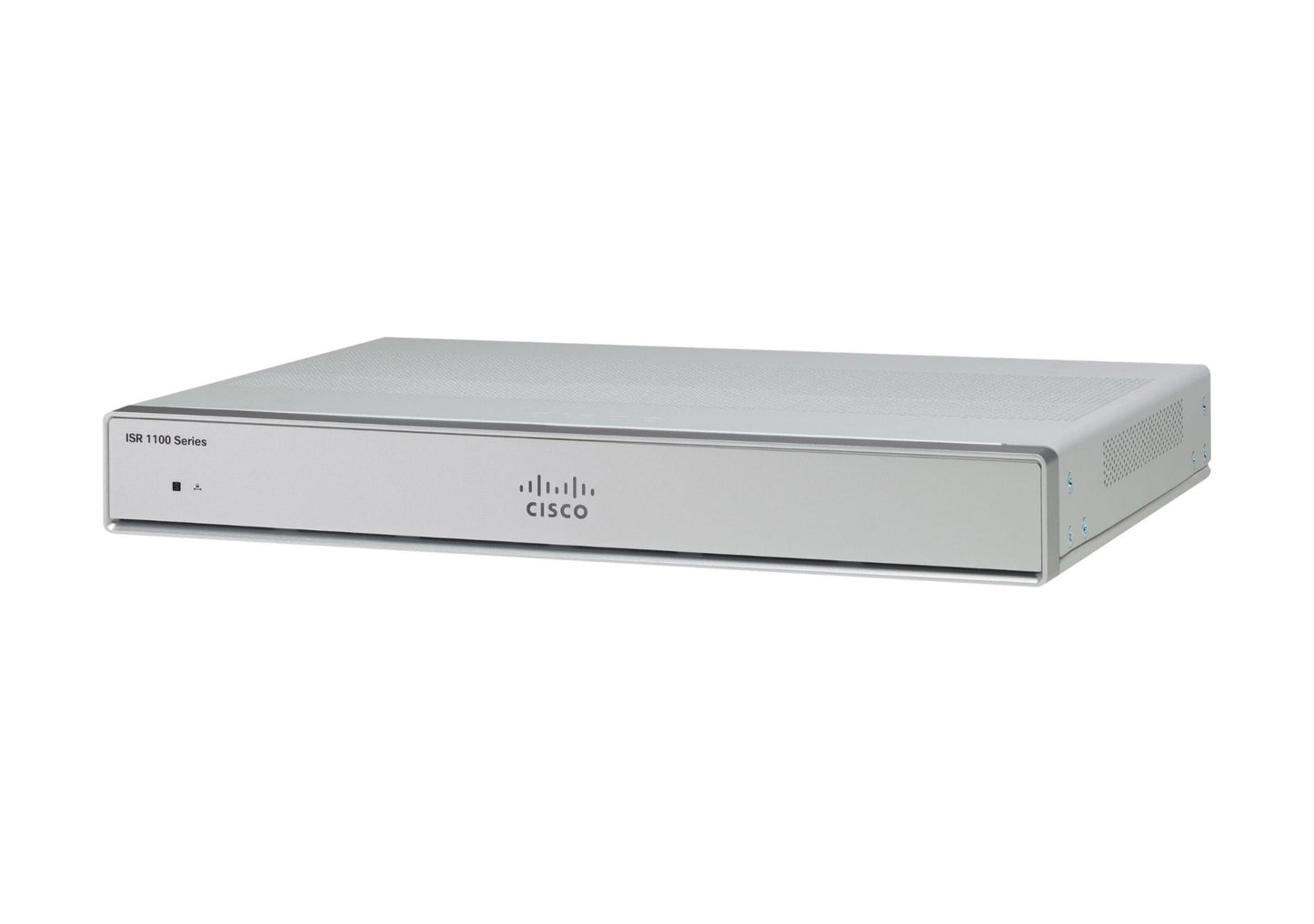

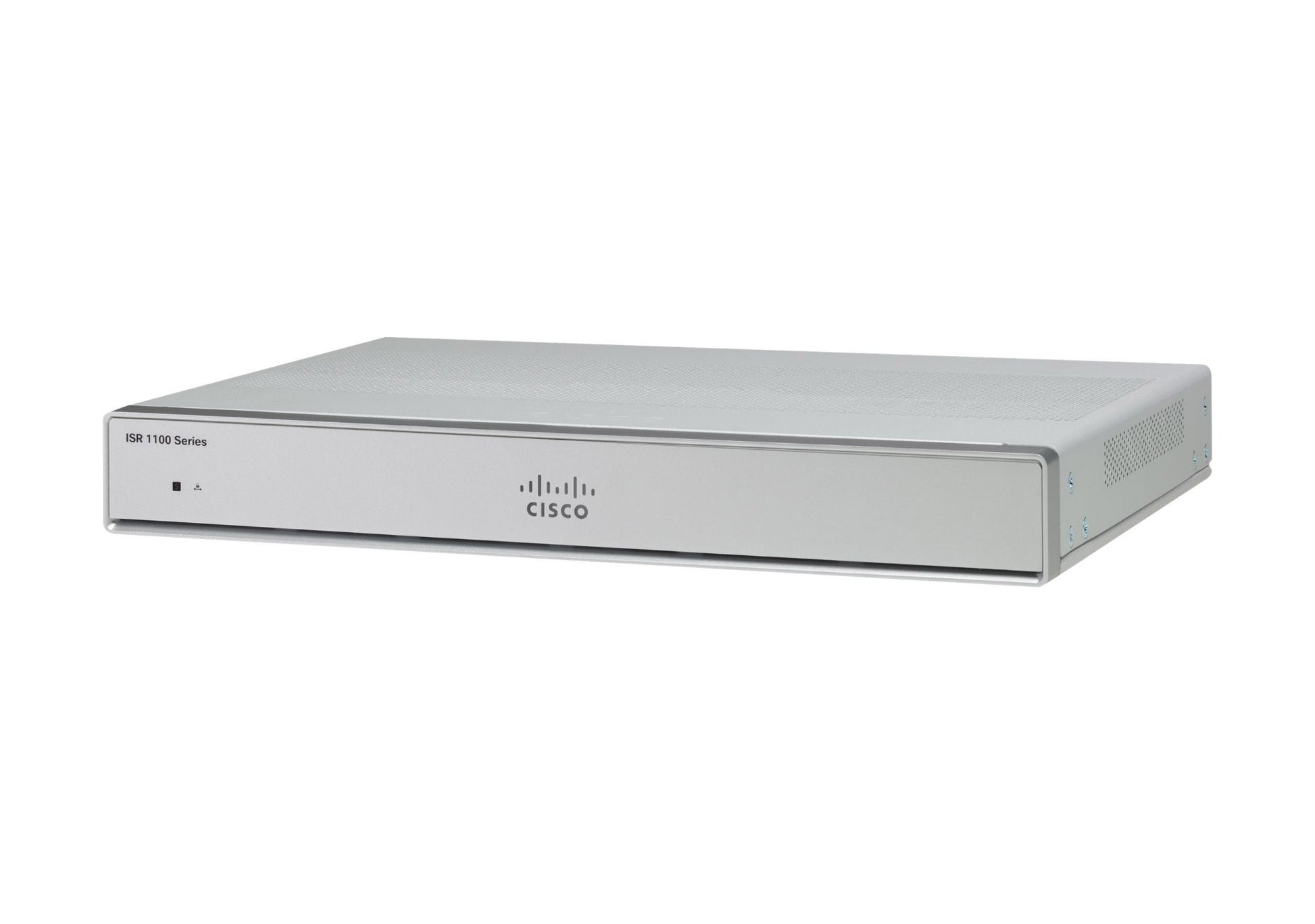

Cisco C1111-4P-DNA | ISR 1100 Router, 4x GE LAN, Dual GE WAN, DNA

SKU:C1111-4P-DNA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 1100 is a compact, fanless Integrated Services Router from the Cisco 1000 Series, built for small branch and remote offices, SOHO sites and multi-site deployments that need enterprise routing features. This C1111-4P variant is supplied with DNA subscription licensing and supports both traditional Cisco IOS XE and controller-managed IOS XE SD-WAN.

It provides four Gigabit Ethernet LAN ports and two Gigabit Ethernet WAN ports, one copper/SFP combo and one copper, plus a USB 3.0 port and an integrated Micro-USB/RJ-45 console port. It carries 4 GB DRAM and 4 GB flash. Throughput reaches up to 1600 Mbps IPv4 forwarding and 500 Mbps IPsec in autonomous mode, or up to 450 Mbps SD-WAN IPsec, measured at 512B packets. Maximum power consumption is 18 W, with an optional PoE/PoE+ upgrade on the LAN ports.

The combo WAN port accepts a broad range of Gigabit and Fast Ethernet SFP modules, including CWDM and DWDM SFPs, for direct internet access over fibre or copper. The router can be managed through Cisco DNA Center, Catalyst SD-WAN Manager or the embedded WebUI, and supports secure branch connectivity with VPN and optional on-box security.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Combines routing, switching, security and WAN connectivity in a compact fanless device
- Choice of traditional Cisco IOS XE or controller-managed IOS XE SD-WAN software
- Optional on-box security including NGFW with application awareness, IPS/IDS, Advanced Malware Protection, URL filtering and Cisco Umbrella SIG
- Flexible management through the embedded WebUI, Cisco DNA Center and Catalyst SD-WAN Manager
- Pay-as-you-grow licensing for performance upgrades (VPERF and HSEC)
- Voice support with CUBE and SRST using a UC licence
- Optional field-replaceable PoE/PoE+ adapter for the LAN ports
- Cisco Smart Licensing supported

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- LAN ports: 4 x Gigabit Ethernet (copper)
- WAN ports: 2 x Gigabit Ethernet (1 copper/SFP combo + 1 copper)
- USB: 1 x Type A USB 3.0
- Console: 1 x integrated Micro-USB/RJ-45
- Memory: 4 GB DRAM / 4 GB flash
- SD-WAN IPsec throughput (512B): up to 450 Mbps
- SD-WAN profile throughput (IPsec + QoS + DPI + Flexible NetFlow, 512B): up to 200 Mbps
- Autonomous mode IPv4 forwarding throughput (512B): up to 1600 Mbps
- Autonomous mode IPsec throughput (512B): up to 500 Mbps
- SD-WAN overlay tunnels: 200
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- Maximum power consumption: 18 W
- External power supply: 100 to 240 VAC, 50 to 60 Hz input, 12 VDC output
- Optional PoE/PoE+: 2 PoE or 1 PoE+ on the LAN ports, requires 115 W power supply
- Dimensions (H x W x D): 4.45 x 32.26 x 22.94 cm
- Weight: 1.98 kg
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 10% to 85% non-condensing
- DSL: No
- LTE: No
- Integrated Wi-Fi: No

FAQs

Q: Does this router need a licence or subscription?
A: This SKU is supplied with DNA subscription licensing. It runs a single universal Cisco IOS XE image with IP Base as the default technology package. Optional licences cover Application Experience, Unified Communications, Security, VPERF and HSEC, and Cisco Smart Licensing is supported with a Smart Account.

Q: Can it supply PoE to connected devices?
A: PoE is an optional upgrade. The ISR-1100-POE2 adapter with a 115 W power supply provides 2 PoE ports or 1 PoE+ port across the four LAN ports. The standard power supply is a 12 VDC, 66 W external adapter.

Q: Which SFP modules work in the combo WAN port?
A: The combo port supports Cisco GLC-SX-MM(D), GLC-LH-SM(D), GLC-EX-SMD, GLC-ZX-SM(D), GLC-T, GLC-TE, GLC-BX-D/U, GLC-FE and GLC-GE-100FX modules, SFP-GE-S and SFP-GE-T, plus CWDM and DWDM SFPs.

Q: Can it be rack mounted?
A: Yes. The ACS-1100-RM-19 rack-mount kit is available for the 111x models.

Q: How is this router managed?
A: It can be managed through the embedded WebUI, Cisco DNA Center or Catalyst SD-WAN Manager when running SD-WAN software, and also through Cisco Security Cloud Control.
