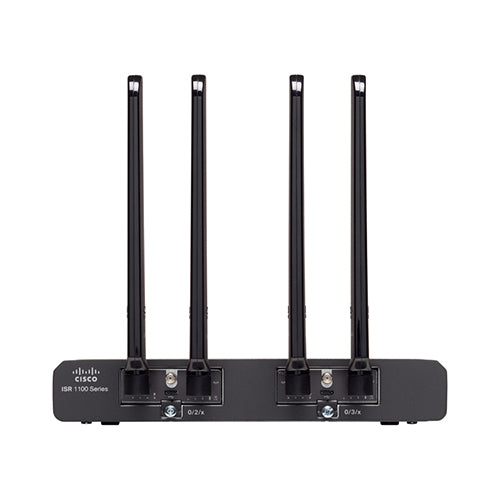

Cisco C1109-4PLTE2PWZ | ISR 1100 Router, 4x GE, Dual PIM, 802.11ac, Z Domain
SKU:C1109-4PLTE2PWZ
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ISR 1100 is a Cisco 1000 Series integrated services router for small branches, retail and remote sites, including harsh environments. It combines four Gigabit Ethernet LAN ports and one Gigabit Ethernet WAN port with two pluggable interface module (PIM) slots for dual-active cellular WAN, plus an embedded 802.11ac access point. It runs Cisco IOS XE and can also be deployed under SD-WAN controller management.
The two PIM slots take Cisco pluggable LTE modules (CAT4, CAT6, CAT7 and CAT18) as well as 5G NSA and 5G SA modules, which are ordered separately. A P-1T serial module is an option for high-speed serial WAN. The Wi-Fi radio is configured for the Z regulatory domain, covering Australia, New Zealand and Brazil. Onboard 4 GB fixed flash, a Type A USB 3.0 port and a Micro-USB console port are provided, and the hardened platform operates from -20 to +55 C. In autonomous mode it forwards up to 1300 Mbps of IPv4 traffic and up to 400 Mbps of IPsec.
It ships with the IP Base technology package. Application Experience, Security and Unified Communications licences are optional, and SD-WAN deployments use Cisco DNA subscriptions. Power comes from an external 12 VDC adapter, with maximum consumption of 38 W and no PoE on this model.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-active pluggable cellular for WAN redundancy and multihoming, with LTE CAT4/6/7/18 and 5G NSA/SA module support
- Embedded 802.11ac Wave 2 access point (2x2:2 MIMO, up to 867 Mbps) managed autonomously or via Mobility Express
- Traditional Cisco IOS XE or controller-managed IOS XE SD-WAN deployment
- Hardened platform built for a wider operating temperature range
- Optional high-speed serial WAN via the P-1T pluggable module
- Security options include zone-based firewall, IPsec VPN, DMVPN, FlexVPN and GETVPN with the SEC licence, plus Cisco Umbrella SIG integration
- Management via WebUI, Cisco DNA Center in autonomous mode, Catalyst SD-WAN Manager and Cisco Security Cloud Control
- Cellular modules support automatic failover, dual micro (3FF) SIM sockets, SIM lock and unlock, and remote firmware upgrade
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- LAN ports: 4 x Gigabit Ethernet (copper)
- WAN ports: 1 x Gigabit Ethernet (copper)
- Cellular: 2 x PIM slots, dual-active pluggable LTE (CAT4, CAT6, CAT7, CAT18) or 5G modules
- 5G support: pluggable 5G NSA module (from Release 17.9.2a) and 5G SA module (from Release 17.12.1a)
- Wireless LAN: embedded 802.11ac access point
- Wi-Fi domain: Z (Australia, Brazil, New Zealand)
- Flash memory: fixed 4 GB
- Console: 1 x Micro-USB
- USB: 1 x Type A USB 3.0
- Optional serial: pluggable high-speed serial interface module (P-1T)
- Dimensions (H x W x D): 1.71 x 11.16 x 9.8 in.
- Weight: 6.23 lb (2.83 kg)
- Maximum power consumption: 38 W (excluding external power supply loss)
- External power supply: 100 to 240 VAC, 50 to 60 Hz input, 12 VDC output, 66 W maximum
- Operating temperature: -20 to +55 C at sea level
- Operating humidity: 10% to 85% relative humidity (non-condensing)
- Non-operating temperature: -40 to +70 C
- Autonomous mode IPv4 forwarding throughput (512B): up to 1300 Mbps
- Autonomous mode IPsec throughput (512B): up to 400 Mbps
- SD-WAN IPsec throughput (512B): up to 200 Mbps
- SD-WAN overlay tunnels: 200
- Autonomous scalability: 100 IPsec SVTI tunnels, 4K ACLs, 280K IPv4 routes, 100K NAT sessions, 1K VRFs
FAQs
Q: What licence does this router ship with?
A: It ships with the IP Base technology package (SL-1K-4P-IPB). Application Experience, Security, Security with No Payload Encryption and Unified Communications licences are optional, and Cisco Smart Licensing applies. SD-WAN deployments use Cisco DNA Essentials, Advantage or Premier subscriptions.
Q: Does it provide PoE or how is it powered?
A: There is no PoE on this model. It is powered by an external AC adapter with 100 to 240 VAC input and 12 VDC output, rated to 66 W. Maximum device consumption is 38 W.
Q: Which cellular modules fit the PIM slots?
A: The two PIM slots accept Cisco pluggable modules such as P-LTEA-EA, P-LTEA-LA, P-LTEA7-EAL, P-LTEAP18-GL (CAT18), P-5GS6-GL (5G NSA) and P-5GS6-R16-SA (5G SA). The P-1T serial module also fits. Cellular modules are ordered separately.
Q: What does the Z in the part number mean?
A: Z is the Wi-Fi regulatory domain for Australia, New Zealand and Brazil. It is the variant of the C1109-4PLTE2PW family built for those regions.
Q: Can it run in SD-WAN mode?
A: Yes. It can run traditional Cisco IOS XE or be deployed in controller mode with Cisco IOS XE SD-WAN, with a minimum supported version of 16.12.1. SD-WAN IPsec throughput is up to 200 Mbps.
