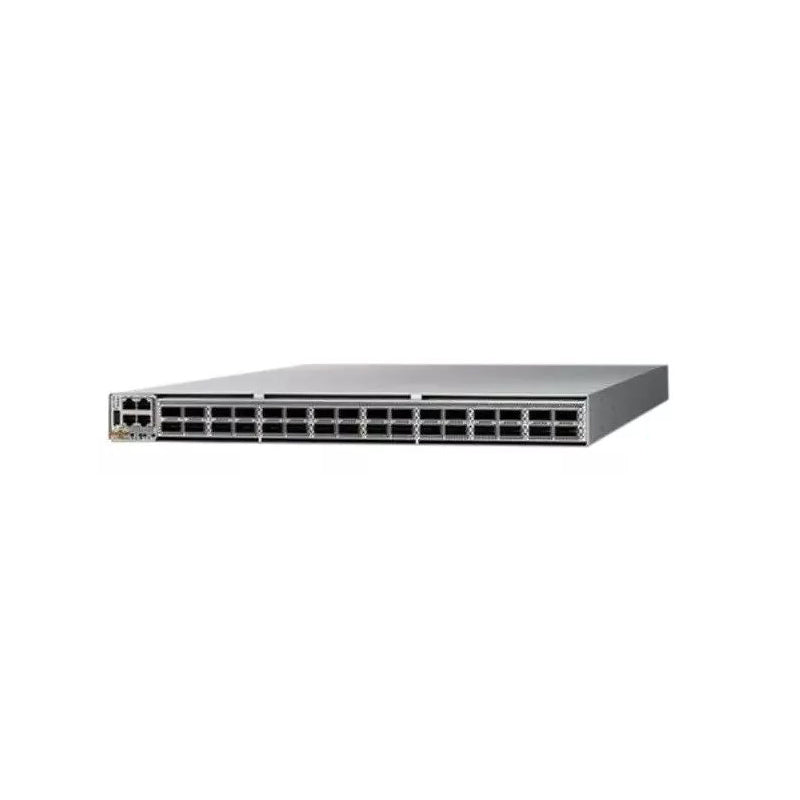

Cisco 8111-32EH-O | 8100 32-Port 800G QSFP-DD Switch, 25.6 Tbps, SONiC
SKU:8111-32EH-O
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco 8100 Series 8111-32EH-O is a fixed-port, one-rack-unit open switch built for hyperscale and high-density data-centre leaf/spine and AI/ML back-end fabrics. This Open variant supports Cisco-qualified open-source network operating systems such as SONiC, making it suited to operators who run an open NOS on 800G switching.
It provides 32 QSFP-DD ports, each supporting 800GbE, for 25.6 Tbps of network bandwidth in a 1RU chassis. Sixteen of the QSFP-DD ports support optics up to 30W and the other sixteen support optics up to 17W. Power is supplied by two hot-swappable PSUs in 1+1 redundancy, with the PSU3KW-HVPI required for 1+1 redundancy when all 32 ports are in use. Cooling uses N+1 field-replaceable fan modules with port-side intake airflow only.
The switch accepts QSFP-DD and QSFP-DD800 optics and uses the FAN-1RU-PI-V2 fan module. A removable SSD card provides local storage.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 25.6 Tbps of bandwidth in a 1RU chassis
- 800GbE QSFP-DD ports for AI/ML and data-centre fabrics
- Supports SONiC open-source network operating system
- Hot-swappable (OIR) 1+1 power supplies
- Hot-swappable N+1 fan modules
- Removable SSD card
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Network bandwidth: 25.6 Tbps
- Ports: 32 x QSFP-DD, each supporting 800GbE
- Optics power support: 16 ports up to 30W, 16 ports up to 17W
- Form factor: 1 RU, fixed port
- Operating system: Cisco-qualified open-source NOS (SONiC)
- Fan module: FAN-1RU-PI-V2 (port-side intake)
- Airflow: Port-side intake only
- Power supply: PSU3KW-HVPI (3 kW HVAC/HVDC)
- Power redundancy: 1+1 PSUs
- Fan redundancy: N+1, field-replaceable fan modules
- PSE configuration: Not supported
- Storage: Removable SSD card
FAQs
Q: Which network operating system does this switch run?
A: This Open variant supports Cisco-qualified open-source network operating systems such as SONiC.
Q: Which power supply is needed for full port use?
A: The PSU3KW-HVPI is required for 1+1 power redundancy when all 32 QSFP-DD ports are in use.
Q: What airflow direction does it support?
A: Port-side intake airflow only. Port-side exhaust is not supported on this model.
Q: What optics power does each port support?
A: Sixteen QSFP-DD ports support optics up to 30W and sixteen ports support optics up to 17W.
Q: Does it support PoE?
A: No. PSE configuration is not supported on this model.
