Aruba R9W93A | CX 8100 40-Port 10GBASE-T Switch, 4x 100G, Back-to-Front
SKU:R9W93A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CX 8100 40XT8XF4C is a 1U AOS-CX switch built for the core and aggregation layer of a campus network, or as a top-of-rack or end-of-row switch in a data centre. It suits environments that need dense 1/10GbE copper and fibre connectivity with 40/100GbE uplinks.

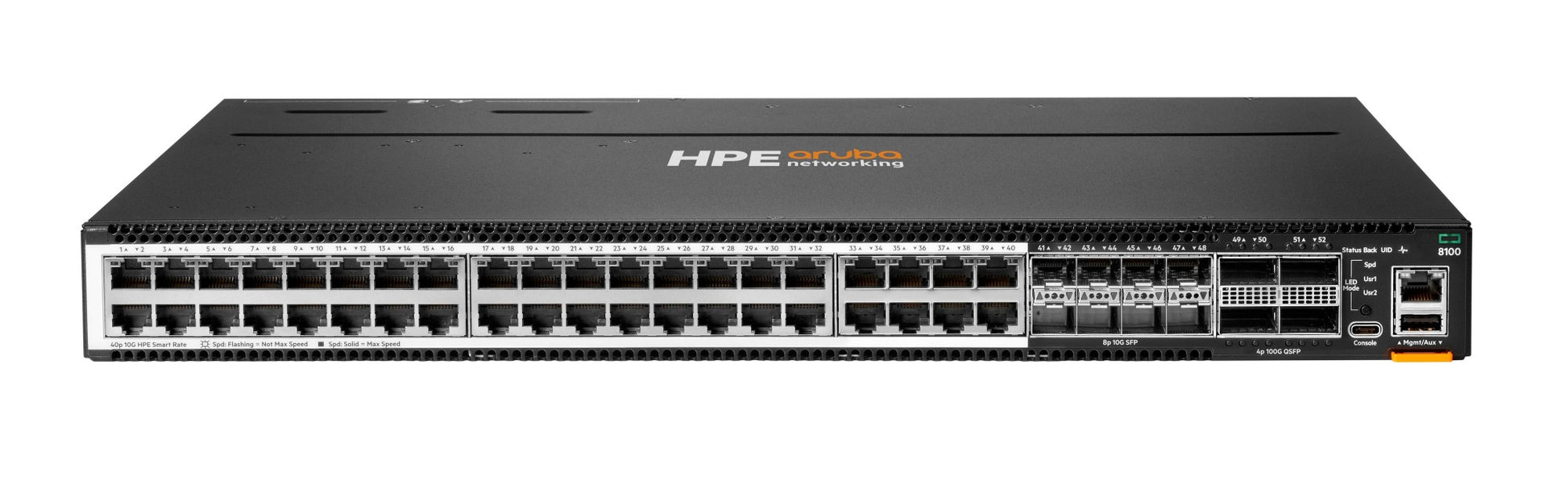

The front panel carries 40 10GBASE-T Smart Rate ports (100M, 1, 2.5, 5 and 10GbE), 8 SFP/SFP+ ports for 1GbE or 10GbE, and 4 QSFP+/QSFP28 ports for 40GbE or 100GbE. Switching capacity is 1.76 Tbps and 1,309 Mpps, with 32MB of packet buffer, 16GB RAM and 32GB flash. This bundle comes in a back-to-front airflow configuration with 3 hot-swap fans and 2 hot-swap 550W AC power supplies, drawing 120 W at idle and 500 W at maximum.
AOS-CX is included with a perpetual set of native Layer 2/3 features, Network Analytics Engine, Dynamic Segmentation, QoS and security. 1G transceivers, including 1GBASE-T, are supported on the SFP+ ports, and the QSFP ports accept QSFP+ 40G or QSFP28 100G optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- AOS-CX operating system with built-in REST APIs and Python scripting
- Network Analytics Engine for telemetry, monitoring and troubleshooting
- VSX for high availability across a pair of switches
- Redundant hot-swappable power supplies and fans
- Layer 2/3 features including BGP, OSPF, VRF and IPv6
- Data Center Bridging, RoCE v1/v2, lossless iSCSI and NVMe over Fabrics support
- Dynamic Segmentation and NetEdit support
- Jumbo frames up to 9K bytes
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Downlink ports: 40 x 100M/1/2.5/5/10GbE (10GBASE-T, Smart Rate)
- SFP ports: 8 x 1GbE/10GbE (SFP/SFP+)
- Uplink ports: 4 x 40GbE/100GbE (QSFP+/QSFP28)
- Switching capacity: 1.76 Tbps / 1,309 Mpps
- Packet buffer: 32MB
- CPU: 1.8 GHz 4-core 64-bit
- Memory and storage: 16GB RAM, 32GB flash
- Power supplies: 2 x hot-swap AC (JL712A, 550W)
- Fans: 3 x hot-swap (JL715A)
- Airflow: back to front
- Power consumption (230 VAC): 120 W idle, 500 W max
- Heat dissipation: 1705 BTU/hr
- MAC address table size: 147,456
- IPv4 unicast routes: 24,576
- IPv6 unicast routes: 12,288
- Maximum VLANs: 1,024
- Management ports: RJ-45 serial, USB-C console, RJ-45 Ethernet, USB-A
- Dimensions (H x W x D): 4.4 x 44.25 x 40.64 cm (1U)
- Weight (full configuration): 8.57 kg
- Operating temperature: 0 to 40 C up to 5000 ft
- Mounting: 19-inch EIA rack, 2-post kit included
FAQs
Q: Does this switch need a software licence?
A: AOS-CX is included with a perpetual set of native features covering Layer 2/3, Network Analytics Engine, Dynamic Segmentation, QoS and security. An optional term-based CX Advanced Feature Pack is available for container infrastructure, and managing it through Aruba Central needs a Central subscription.
Q: What power supplies and fans does this bundle use?
A: It is configured with 2 x JL712A 550W AC power supplies and 3 x JL715A fans, all hot-swappable, in a back-to-front airflow arrangement. Maximum draw is 500 W at 230 VAC.
Q: What optics and cables work with the SFP+ and QSFP ports?
A: The SFP/SFP+ ports take 1G and 10G transceivers, including 1GBASE-T. The QSFP ports accept QSFP+ 40G or QSFP28 100G optics. 10G LRM optics, 7 m 10G DAC lengths and breakout cables are not supported on this model.
Q: Which rack mounting options does it support?
A: It mounts in a 19-inch EIA rack using a 2-post kit. A 4-post rack kit is a separate part.
Q: How does this SKU differ from other CX 8100 variants?
A: This model is the 40XT8XF4C with 40 10GBASE-T ports, 8 SFP/SFP+ ports and 4 QSFP28 ports. It is the back-to-front airflow bundle with 3 fans and 2 AC power supplies.
