Aruba R9W91A | CX 8100 48-Port 10G SFP+ Switch, 4x 100G QSFP28, BF
SKU:R9W91A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

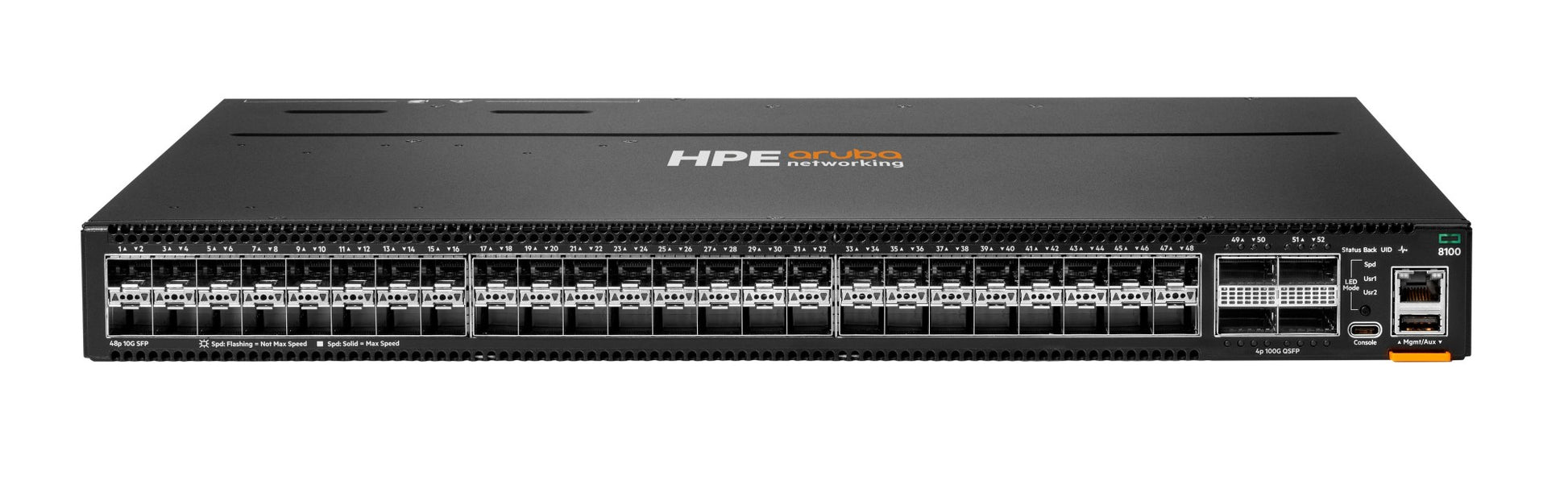

The Aruba CX 8100 is a fixed-configuration 1U Layer 3 managed switch running the AOS-CX operating system. It is built for top-of-rack, aggregation and core roles in enterprise campus and data centre networks that need high-density 10G server or access connectivity with 40/100G uplinks.
This R9W91A bundle provides 48 x 1/10GbE SFP/SFP+ ports and 4 x 40/100GbE QSFP+/QSFP28 ports, with the QSFP ports supporting 4x10G or 4x25G breakout. Switching capacity is 1.76 Tbps with throughput of 1,309 Mpps. It is the back-to-front airflow variant, supplied as a bundle with 3 fan trays and 2 AC power supplies, so there are no open power supply or fan slots. Maximum power consumption is 450 W, with 120 W at idle.
The switch accepts up to 48 SFP/SFP+ 1/10G transceivers and up to 4 QSFP+/QSFP28 40/100G transceivers or QSA28 adapters, so uplink and server-facing optics can be matched to the cabling in your rack.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs AOS-CX, a database-driven operating system that automates and simplifies network operations
- Line-rate 1/10GbE and 40/100GbE connectivity in a compact 1U form factor
- QSFP ports support optional 4x10G and 4x25G breakout
- Redundant AC power supplies and fan trays for high availability
- Software-defined automation and programmability options
- Layer 3 managed switching suited to campus core and data centre top-of-rack use
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 1/10GbE SFP/SFP+
- Uplinks: 4 x 40/100GbE QSFP+/QSFP28 with 4x10G/4x25G breakout support
- Switching capacity: 1.76 Tbps
- Throughput: 1,309 Mpps
- Layer: Layer 3, managed
- Operating system: AOS-CX
- Airflow: Back-to-front
- Power supplies: 2 AC (no open PSU slots)
- Fan trays: 3 (no open fan tray slots)
- Power consumption: 450 W maximum, 120 W idle
- Heat dissipation: 1535 BTU/hr
- Form factor: 1U rack-mountable
- SFP/SFP+ 1/10G transceivers: 0 to 48
- QSFP+/QSFP28 40/100G transceivers or QSA28 adapters: 0 to 4
- Maximum operating altitude: 10,000 ft (3,048 m)
- Maximum non-operating altitude: 15,000 ft (4.6 km)
- Non-operating storage humidity: 15% to 95% at 65 C, non-condensing
FAQs
Q: Does this switch use front-to-back or back-to-front airflow?
A: This R9W91A bundle is the back-to-front airflow variant, supplied with 3 fan trays and 2 AC power supplies. A front-to-back airflow bundle is a separate SKU.
Q: Can the QSFP28 ports be broken out into lower speeds?
A: Yes. The 4 QSFP+/QSFP28 ports run at 40/100GbE and support optional breakout to 4x10G or 4x25G.
Q: What optics and adapters does it accept?
A: It accepts up to 48 SFP/SFP+ 1/10G transceivers and up to 4 QSFP+/QSFP28 40/100G transceivers or QSA28 adapters.
Q: How much power does it draw?
A: Maximum power consumption is 450 W and idle consumption is 120 W, with heat dissipation of 1535 BTU/hr.
Q: Are the power supplies and fans already fitted?
A: Yes. This bundle includes 2 AC power supplies and 3 fan trays, so there are no open power supply or fan tray slots.
