Aruba

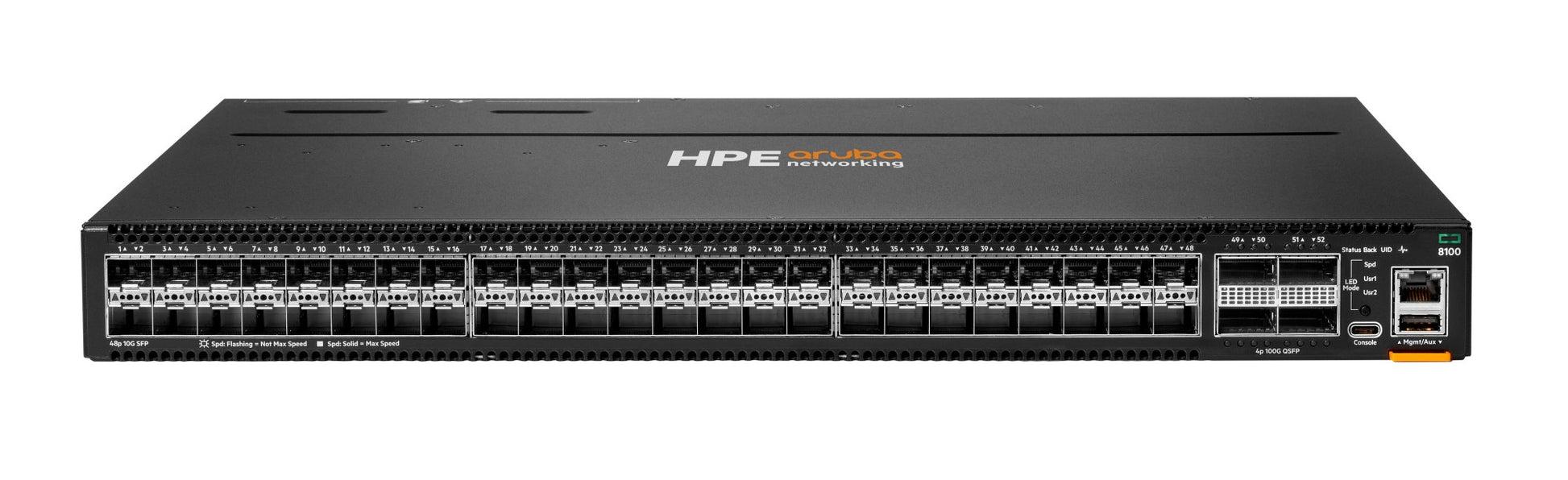

Aruba R9W90A | CX 8100 48-Port 10G SFP+ Switch, 4x 100G QSFP28

SKU:R9W90A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CX 8100 is a 1U Layer 3 switch built for campus core and aggregation layers, as well as top-of-rack and end-of-row switching in virtualised data-centre environments. It runs AOS-CX and supports VSX for high availability.

This model provides 48 x 1/10GbE SFP/SFP+ ports and 4 x 40/100GbE QSFP+/QSFP28 uplinks, with 1.76 Tbps of switching capacity and 1,309 Mpps of forwarding. It has a 32MB packet buffer, 16GB RAM and 32GB flash. This SKU is the front-to-back airflow configuration with 3 fans and 2 AC power supplies, drawing 120 W idle and 450 W at maximum at 230 VAC. The switch does not provide PoE.

AOS-CX includes a perpetual set of native features such as Network Analytics Engine and Dynamic Segmentation, with an optional CX Advanced Feature Pack available as a term-based licence. The SFP+ ports accept 1G SFP, 10G SFP+ and 25G SFP28 optics, and the QSFP28 ports accept 40G QSFP+ and 100G QSFP28 optics and DACs or AOCs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 1.76 Tbps switching and 1,309 Mpps forwarding for core and top-of-rack use
- Network Analytics Engine (NAE) for monitoring and troubleshooting
- VSX redundancy for high availability, with redundant hot-swappable power supplies and fans
- AOS-CX automation and programmability through built-in REST APIs and Python scripts
- Layer 2/3 feature set including BGP, OSPF, VRF, IPv6 and VXLAN/BGP-EVPN
- Data Center Bridging, RoCE v1/v2 and NVMe over Fabrics support
- Integrated TPM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 1GbE/10GbE SFP/SFP+
- Uplinks: 4 x 40GbE/100GbE QSFP+/QSFP28
- Switching capacity: 1.76 Tbps / 1,309 Mpps
- Packet buffer: 32MB
- CPU: 1.8 GHz 4-core 64-bit
- Memory: 16GB RAM, 32GB flash
- Power supplies: 2 x hot-swappable AC
- Fans: 3 x hot-swappable
- Airflow: front-to-back
- Power consumption (230 VAC): 120 W idle, 450 W max
- AC input: 100-127 V at 7.1 A, 200-240 V at 3.4 A, 47-63 Hz
- Heat dissipation: 1535 BTU/hr
- MAC address table: 147,456 entries
- IPv4 unicast routes: 24,576
- IPv6 unicast routes: 12,288
- Maximum VLANs: 1,024
- Management: RJ-45 serial, USB-C console, RJ-45 Ethernet, USB Type-A
- Dimensions (H x W x D): 4.4 x 44.25 x 40.64 cm
- Weight (full configuration): 8.39 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 15% to 95% at 40 C, non-condensing
- Mounting: 19-inch EIA rack, 1U
- Compliance: CE, RoHS, TAA-compliant

FAQs

Q: Does this switch need a licence?
A: AOS-CX is included with a perpetual set of native features, including Network Analytics Engine and Dynamic Segmentation. An optional term-based CX Advanced Feature Pack is available, and Aruba Central management needs a separate subscription.

Q: Does it provide PoE?
A: No. The CX 8100 48XF4C does not provide PoE. It runs from its two AC power supplies, with a maximum consumption of 450 W at 230 VAC.

Q: Which optics and cables does it support?
A: The SFP/SFP+ ports support 1G SFP, 10G SFP+ and 25G SFP28 optics. The QSFP28 ports support 40G QSFP+ and 100G QSFP28 optics and DACs or AOCs. 10G LRM optics and 7 m 10G DACs are not supported.

Q: Can the 100G ports be split with breakout cables?
A: No. Breakout cables are not supported on the 48XF4C model, so the QSFP28 ports cannot be split.

Q: What spare parts does it use?
A: The spare power supply is JL600A and the spare fan is JL714A, both hot-swappable. Rack kits are JL602A for 2-post and J9583B for 4-post.
