Aruba

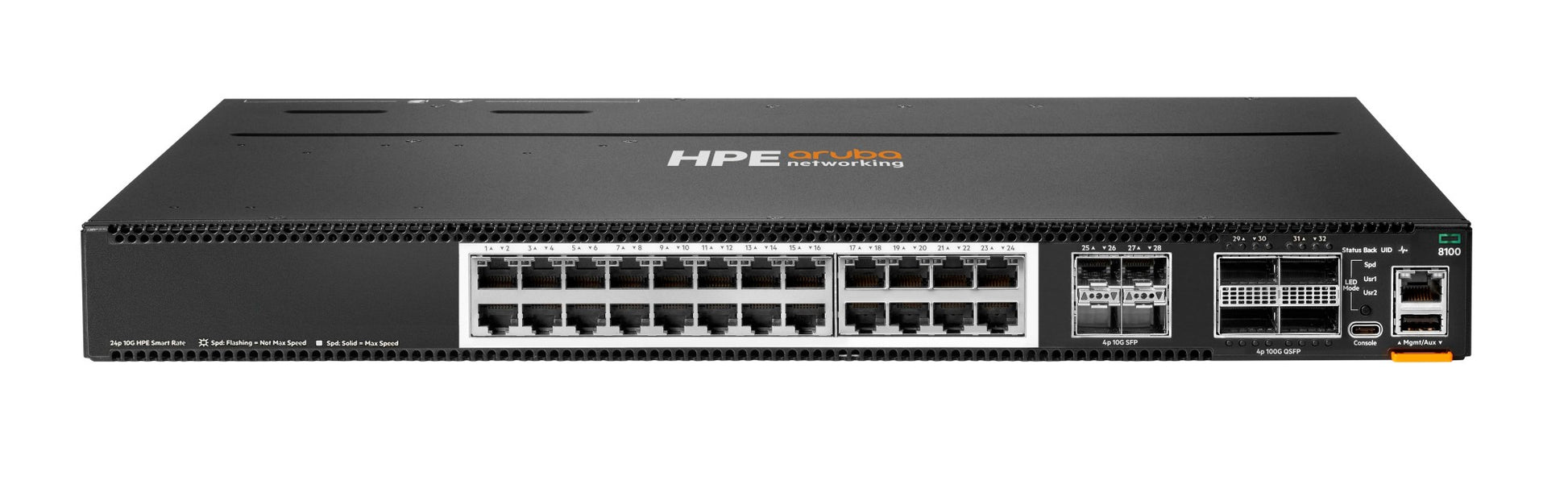

Aruba R9W89A | CX 8100 24-Port 10GBASE-T Switch, 4x 100G QSFP28, BF

SKU:R9W89A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 8100 is a fixed-configuration Layer 3 switch running AOS-CX, built for top-of-rack and aggregation roles in enterprise campus and data centre networks. It suits environments that need 10GBASE-T server or access connectivity backed by high-speed 40/100G uplinks.

This model provides 24 Smart Rate 10GBASE-T ports (100M/1/2.5/5/10GbE), 4 SFP/SFP+ ports for 1G or 10G fibre, and 4 QSFP+/QSFP28 ports for 40G or 100G, with breakout support for 4x10G or 4x25G. Switching capacity is 1.36 Tbps, with a 32MB packet buffer and a MAC address table of 147,456 entries. The 1U chassis is configured with Back-to-Front airflow, 3 hot-swappable fans and 2 hot-swappable AC power supplies. Power draw at 230VAC is 120 W idle and 400 W maximum.

It works with SFP/SFP+ and QSFP+/QSFP28 optics and DACs, and the QSFP ports can be broken out into 4x10G or 4x25G links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs AOS-CX, a database-driven operating system that automates and simplifies network tasks
- Smart Rate multi-gigabit ports support 100M, 1G, 2.5G, 5G and 10G over copper
- Layer 3 routing for top-of-rack and aggregation designs
- QSFP ports support 4x10G or 4x25G breakout for flexible uplink density
- Hot-swappable power supplies and fans for redundancy and serviceability
- Back-to-Front airflow for rear-facing cold aisle rack layouts

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 100M/1/2.5/5/10GbE 10GBASE-T (Smart Rate)
- SFP/SFP+ ports: 4 x 1GbE/10GbE
- QSFP ports: 4 x 40GbE/100GbE QSFP+/QSFP28, 4x10G/4x25G breakout supported
- Switching capacity: 1.36 Tbps
- Packet buffer: 32MB
- CPU: 1.8 GHz 4-core 64-bit ARM Cortex A72
- Memory: 16GB RAM, 32GB flash
- Airflow: Back-to-Front
- Power supplies: 2 x hot-swappable AC
- Fans: 3 x hot-swappable
- AC input: 100-127V at 7.1 A, 200-240V at 3.4 A, 47-63 Hz
- Power consumption (230VAC): 120 W idle, 400 W maximum
- Heat dissipation: 1364 BTU/hr
- Management: RJ-45 serial and USB-C console, RJ-45 Ethernet management port, USB Type-A
- MAC address table: 147,456 entries
- IPv4 unicast routes: 24,576
- IPv6 unicast routes: 12,288
- Maximum VLANs: 1,024
- Dimensions (H x W x D): 44.0 x 442.5 x 406.4 mm, 1U
- Operating altitude: up to 3.048 km (10,000 ft)

FAQs

Q: Does this switch need a licence to run?
A: It runs AOS-CX with no mandatory licence required. Optional Aruba Central subscriptions are available separately for cloud management.

Q: What power supplies and fans does this configuration use?
A: It uses 2 hot-swappable AC power supplies (JL712A) and 3 hot-swappable fans (JL715A), in a Back-to-Front airflow configuration.

Q: Can the QSFP28 ports be broken out into lower-speed links?
A: Yes. The QSFP ports support breakout into 4x10G or 4x25G connections.

Q: Which optics and cables does it support?
A: It supports SFP/SFP+ and QSFP+/QSFP28 optics and DACs. The 8100 series does not support 10G LRM optics or 7 m 10G DAC lengths.

Q: How does this differ from other CX 8100 24-port variants?
A: This SKU is the 24x 10GBASE-T model with 4x SFP+ and 4x QSFP28 ports, configured with Back-to-Front airflow, 3 fans and 2 AC power supplies.
