Aruba R9W86A | CX 8100 24-Port 10G SFP+ Switch, 4x 100G, 2 AC PSU
SKU:R9W86A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 8100 is a 1U Layer 3 switch running AOS-CX, built for campus core and aggregation as well as top-of-rack or end-of-row roles in virtualised data centres. This model pairs 24 SFP/SFP+ ports with four 40/100G QSFP+/QSFP28 uplinks.

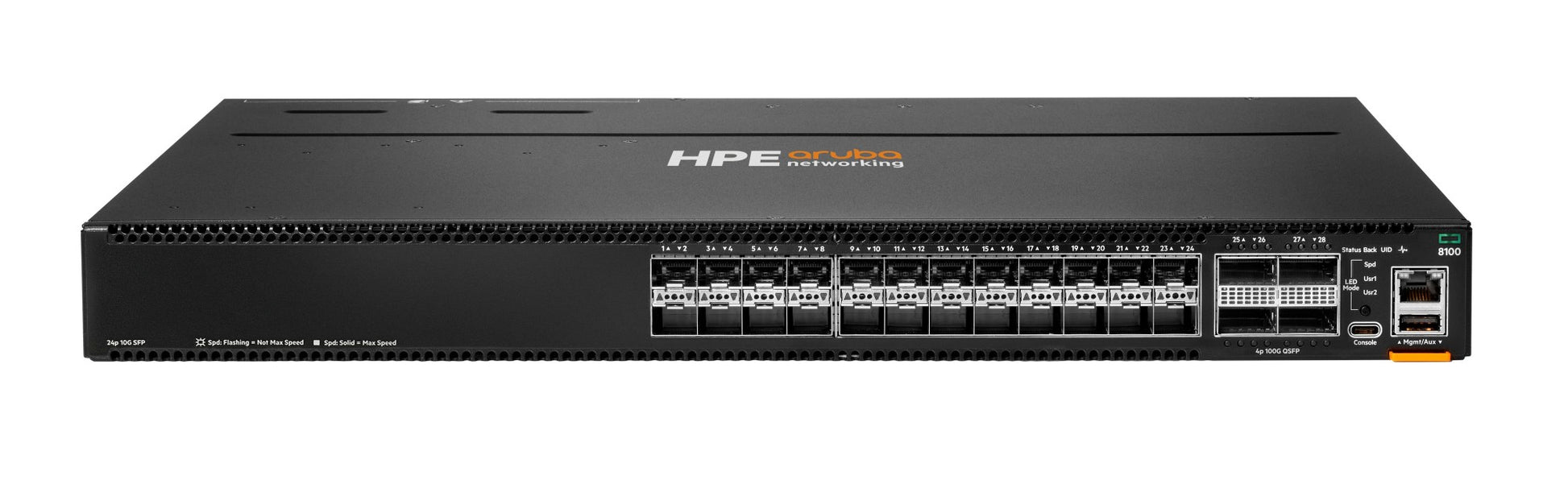

The front panel provides 24 x 1/10GbE SFP/SFP+ ports and 4 x 40/100GbE QSFP+/QSFP28 ports, with optional 4x10G or 4x25G breakout on the uplinks. Switching capacity is 1.28 Tbps, backed by 16GB RAM, 32GB flash and a 32MB packet buffer. This SKU is the front-to-back airflow configuration with 3 hot-swappable fans and 2 hot-swappable AC power supplies, drawing a maximum of 375 W at 230 VAC. It is the bundle variant, so it is distinct from the base chassis R9W94A.
It works with Aruba and HPE 1G SFP, 10G SFP+, 40G QSFP+ and 100G QSFP28 transceivers, DACs and AOCs. Every unit carries the embedded Aruba CX Foundation licence, with an optional term-based CX Advanced licence for CX Edge Insights flow capture.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs ArubaOS-CX with built-in REST APIs and Python scripting
- Aruba Network Analytics Engine (NAE) for monitoring and troubleshooting
- Aruba VSX for high availability across two chassis
- Layer 2/3 feature set including BGP, OSPF, VRF, IPv6 and 32-way ECMP
- Dynamic Segmentation and Aruba NetEdit support
- Managed through Aruba Central (cloud) or on-premises
- Jumbo frames up to 9K bytes
- TAA compliant with FIPS 140-2 validated cryptography
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- I/O ports: 24 x 1GbE/10GbE SFP/SFP+
- Uplink ports: 4 x 40GbE/100GbE QSFP+/QSFP28 (optional 4x10G/4x25G breakout)
- Switching capacity: 1.28 Tbps
- CPU: 1.8 GHz 4-core 64-bit
- Memory and flash: 16GB RAM, 32GB flash
- Packet buffer: 32MB
- Power supplies: 2 x JL600A hot-swappable AC
- Fans: 3 x JL714A hot-swappable
- Airflow: Front-to-back
- Power consumption (230 VAC): 120 W idle, 375 W max
- AC input: 100-127V 7.1 A, 200-240V 3.4 A, 47-63 Hz
- Management ports: RJ-45 serial and USB-C console, RJ-45 Ethernet, USB-A
- Dimensions (H x W x D): 44.0 x 442.5 x 406.4 mm
- Weight (full configuration): 8.16 kg
- Form factor: 1U, 19-inch rack mount
- MAC address table size: 147,456
- IPv4 unicast routes: 24,576
- IPv6 unicast routes: 12,288
- Maximum VLANs: 1,024
- Operating temperature: 0 to 45 C
- Operating relative humidity: 15% to 95% at 40 C, non-condensing
- Acoustic: LWAd 6.3 Bel, LpAm 45.8 dB
FAQs
Q: Does the Aruba CX 8100 need a licence?
A: No extra licence is needed to run it. Every Aruba CX switch includes an active, embedded Aruba CX Foundation licence. An optional term-based CX Advanced licence adds CX Edge Insights for layer 4-7 flow capture.
Q: What power does it use?
A: It uses 2 hot-swappable Aruba X391 550W AC power supplies (JL600A). Maximum draw is 375 W at 230 VAC, with input of 100-127V at 7.1 A or 200-240V at 3.4 A.
Q: Which optics and cables does it work with?
A: It supports Aruba and HPE 1G SFP, 10G SFP+, 40G QSFP+ and 100G QSFP28 transceivers, DACs and AOCs. It does not support 10G LRM optics or 7 m 10G DACs.
Q: How does R9W86A differ from the base R9W94A?
A: R9W86A is the bundle with 3 front-to-back airflow fans and 2 AC power supplies fitted. R9W94A is the base switch without fans or power supplies.
Q: What are the spare parts and mounting options?
A: Spare fans are JL714A (port-to-power airflow) and JL715A (power-to-port airflow). Mounting kits are JL602A (2-post) and J9583B (4-post), and the JL716A air duct is for 4-post deployments.
