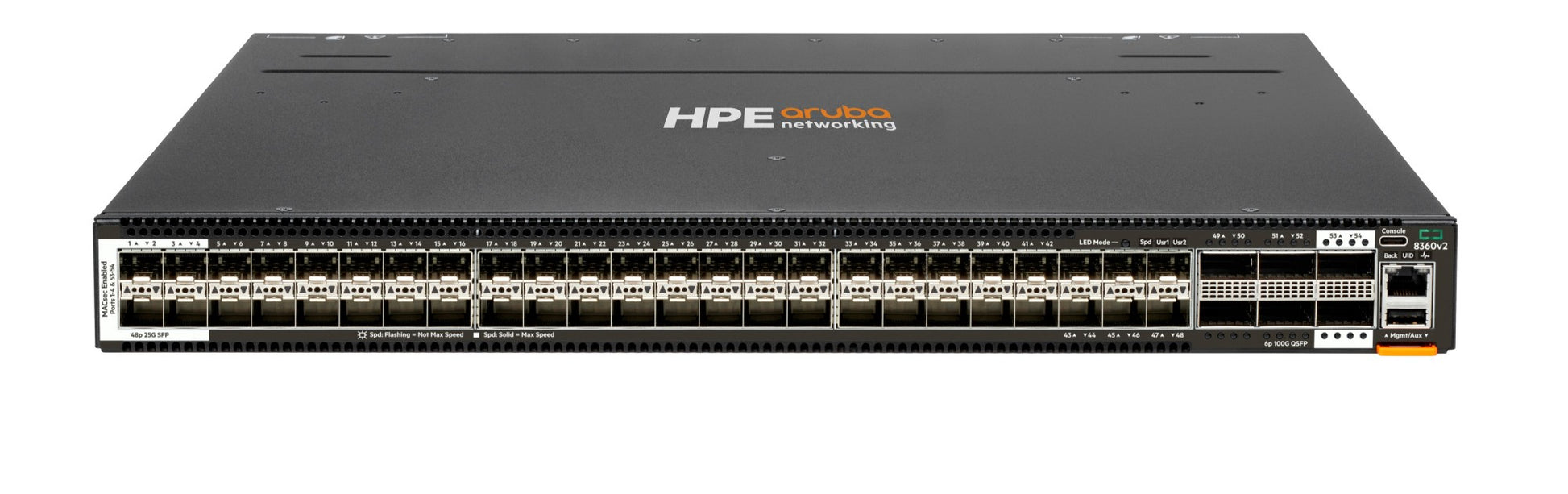

Aruba R9G22A | CX 8360 v2 48-Port 25G SFP28 Switch, 6x 100G, Port-to-Power
SKU:R9G22A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 8360 v2 is a fixed-port Layer 2/3 switch running ArubaOS-CX, built for campus core and aggregation as well as data centre top-of-rack or end-of-row deployments. This bundle is supplied with 5 fans and 2 power supplies fitted, in a port-to-power airflow configuration.
It provides 48 SFP28 ports in total, made up of 44 ports at 1/10/25GbE and 4 ports at 10/25GbE with MACsec, plus 6 uplink ports at 40/100GbE QSFP+/QSFP28, two of which support MACsec. Switching capacity is 4.8 Tbps with a forwarding rate of 2,678 Mpps. There is no PoE on this model. It ships with ArubaOS-CX base software and needs no separate feature licence for the base feature set. Aruba Central and other subscriptions are optional.
The downlink ports take SFP, SFP+ and SFP28 optics and DACs, while the uplinks take QSFP+ and QSFP28 optics and DACs. Redundant fans and power supplies support VSX high-availability designs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate 1/10/25GbE and 40/100GbE interfaces
- Aruba Network Analytics Engine for monitoring and visibility
- VSX redundancy with redundant power supplies and fans
- MACsec secured connectivity over untrusted domains
- ArubaOS-CX automation and programmability through built-in REST APIs and Python scripts
- Advanced Layer 2/3 feature set including BGP, OSPF, VRF and IPv6
- Suited to campus core and aggregation or data centre top-of-rack and end-of-row
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Downlink ports: 44 x 1/10/25GbE SFP/SFP+/SFP28
- MACsec downlink ports: 4 x 10/25GbE SFP+/SFP28 with MACsec
- Total SFP28 ports: 48
- Uplink ports: 6 x 40/100GbE QSFP+/QSFP28 (2 with MACsec)
- Switching capacity: 4.8 Tbps
- Forwarding rate: 2,678 Mpps
- PoE: None
- Fans: 5, fitted
- Power supplies: 2 x AC, fitted
- Airflow: Port-to-power (front-to-back)
- Management: RJ-45 serial and USB-C console, RJ-45 Ethernet port, USB Type-A
- Base switch: JL719C
- Software: ArubaOS-CX base, no feature licence
FAQs
Q: Does this switch need a feature licence?
A: No. It runs ArubaOS-CX base software and the base feature set needs no separate licence. Aruba Central or other subscriptions are optional.
Q: Does it support PoE?
A: No. This model has no PoE, so it does not power connected devices over Ethernet.
Q: What optics and cables does it take?
A: The 48 downlink ports take SFP, SFP+ and SFP28 optics and DACs. The 6 uplink ports take QSFP+ and QSFP28 optics and DACs.
Q: Which airflow direction does this SKU use?
A: This SKU is port-to-power airflow (front-to-back) with 5 fans fitted. Choose the matching airflow for your rack's hot and cold aisle layout.
Q: Can it run in a redundant pair?
A: Yes. It supports VSX redundancy, and the redundant power supplies and fans help keep the switch running through a single component failure.
