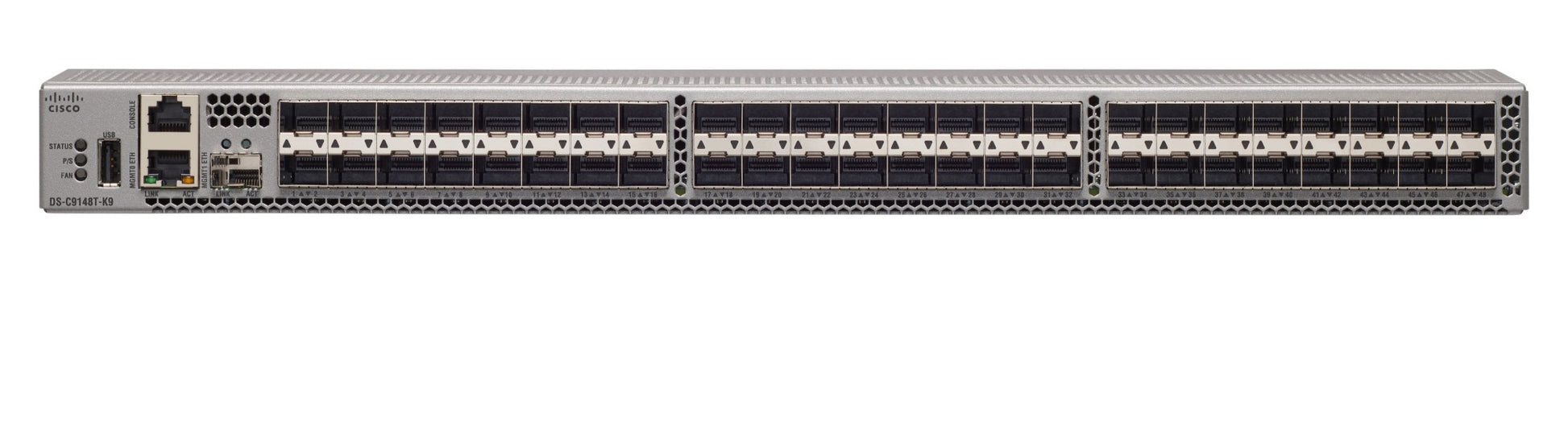

Aruba R0P13A | SN6620C 24-Port 32G Fibre Channel Switch, No Optics

SKU:R0P13A

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SN6620C is a 1RU fixed multilayer 32Gbps Fibre Channel fabric switch for small to large SANs, and for use as an edge switch in larger enterprise fabrics. It suits all-flash array and virtualised workloads, server-rack to SAN-core connectivity, and FC-NVMe-ready environments, including upgrades of 8/16G server racks to 32G.

This SKU is the 24 active port base model, with 32Gb SFP+ ports that autosense at 4/8/16/32 Gbps and give 32 Gbps of dedicated bandwidth per port. The 48-port chassis scales to 1536 Gbps of aggregate bandwidth, and ports can be activated in 8-port steps up to 48. Base NX-OS software and the 24 active ports are included. Extra ports need the HPE SN6620C 32Gb 8-port Fibre Channel Upgrade E-LTU (R0Z10AAE). Advanced services such as IVR and fabric-wide QoS need an Advantage or Premier licence. It runs Cisco MDS 9000 NX-OS and is managed through the CLI, NX-API or Nexus Dashboard Fabric Controller.

This SKU has no bundled SFP+ optics. Compatible HPE transceivers include the 32Gb FC SW SFP+ (Q9D30A) and LW SFP+ (Q9D31A), the 16Gb SW (C8S72A) and LW (C8S73A), and the MDS 9000 8Gb SFP+ (AJ906A).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Pay-as-you-grow port activation in 8-port increments via On Demand Port Activation E-LTU
- NPIV and NPV modes to scale SANs without hitting domain ID limits
- VSANs for fault isolation and PortChannels with up to 16 ISLs for resiliency
- F-port trunking and channeling
- FlexAttach for server moves or replacement without SAN reconfiguration
- Flow-based and zone-based QoS
- REST and NX-API programmability
- Non-disruptive software upgrades with hot-swappable PSUs, fans and optics
- FC-NVMe support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Switch type: Multilayer Fabric Switch
- Active ports: 24 x 32Gb Fibre Channel (SFP+)
- Maximum ports: Up to 48 x 32 Gbps Fibre Channel, upgradeable in 8-port increments
- Port speed: 4/8/16/32 Gbps autosensing, 32 Gbps dedicated bandwidth per port
- Aggregate bandwidth: 1536 Gbps in each direction (48 ports)
- Buffer credits: Up to 8300 per group of 16 ports; default 500 per port
- PortChannel: Up to 16 ports per PortChannel
- VSANs: Up to 32 per switch
- Fibre Channel port types: E, F, B (standard); SD, ST, TE (enhanced)
- Classes of service: Class 2, Class 3, Class F
- Management access: Out-of-band 10/100/1000 Ethernet, serial console, in-band FCIP
- Management protocols: CLI, SNMPv3, NX-API
- Software: Cisco MDS 9000 NX-OS
- Power supplies: 650W AC, maximum 2 per switch
- AC input: 100 to 240 VAC, 50 to 60 Hz
- Typical power consumption: 217 W idle (48-port, no optics); 251 W with 24 x 32G SW optics
- Airflow: Rear to front (toward ports)
- Dimensions (H x W x D): 4.37 x 43.9 x 56.6 cm, 1RU
- Weight (fully configured): 8.6 kg
- Operating temperature: 0 to 40 C
- Operating altitude: -60 to 2000 m
- Safety and EMC: CE, UL 60950, AS/NZS 3260, IEC 60825; FCC Part 15 Class A, EN55022 Class A, AS/NZS 3548 Class A

FAQs

Q: How do I add more ports beyond the 24 active ports?
A: Ports are activated in 8-port steps with the HPE SN6620C 32Gb 8-port Fibre Channel Upgrade E-LTU (R0Z10AAE), up to a maximum of 48 active ports.

Q: Which licences does this switch need?
A: Base NX-OS software and the 24 active ports are included. The optional Advantage licence adds NDFC and Enterprise Package features. The optional Premier licence adds SAN Analytics as well. Advanced services such as IVR and fabric-wide QoS need the Advantage or Premier licence.

Q: Which SFP+ transceivers work with this switch?
A: Compatible HPE transceivers are the 32Gb FC SW SFP+ (Q9D30A) and LW SFP+ (Q9D31A), the 16Gb SW (C8S72A) and LW (C8S73A), and the MDS 9000 8Gb SFP+ (AJ906A) for short range.

Q: What power supplies does it use?
A: It uses up to two hot-swappable 650W AC power supplies on 100 to 240 VAC, 50 to 60 Hz. Typical draw is 217 to 297 W depending on the optics fitted.

Q: How is the switch managed?
A: Through the CLI, NX-API or SNMPv3, using the out-of-band 10/100/1000 Ethernet port or the serial console. Nexus Dashboard Fabric Controller can also be used.
