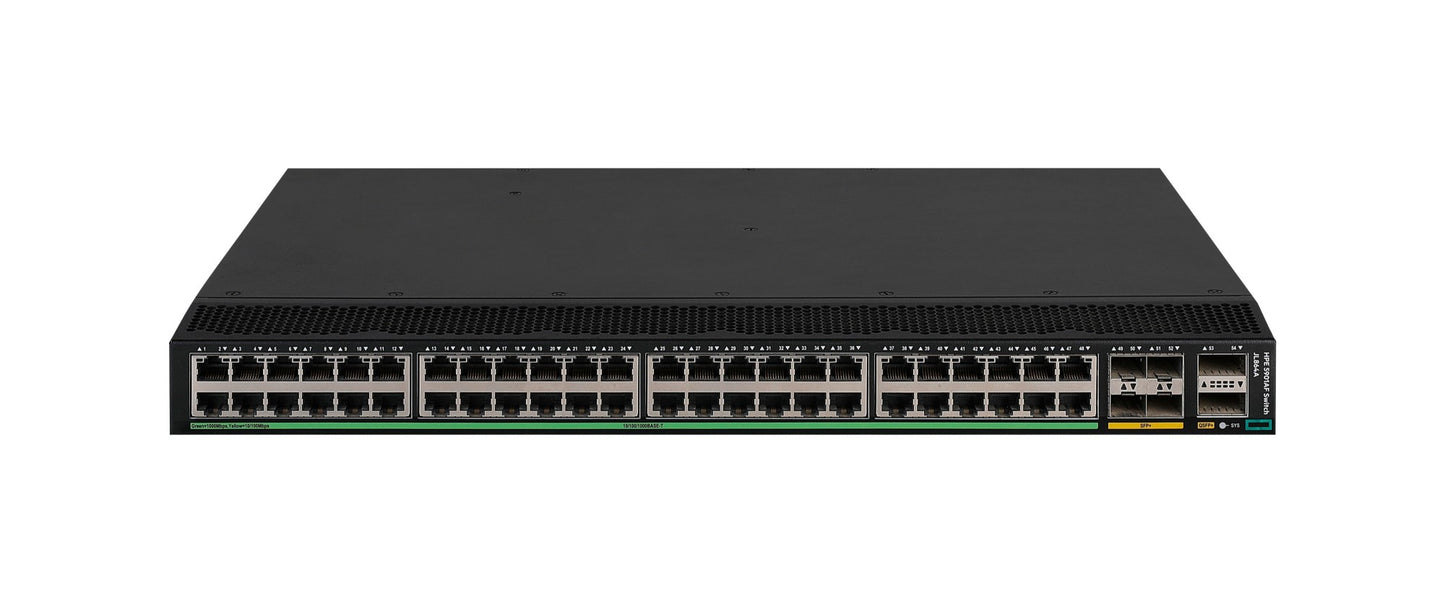

Aruba JL864A | FlexFabric 5900 48-Port Gigabit Switch, 4x 10G SFP+, 2x 40G

SKU:JL864A

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexFabric 5900 series 5901AF is a 1U top-of-rack Layer 2/3 data centre switch running Comware v7. It is built for the access layer and management network of medium and large enterprise data centres, including virtualised and SDN environments.

It provides 48 x 10/100/1000BASE-T RJ-45 ports, 4 x 1/10G SFP+ ports and 2 x 40G QSFP+ ports. Switching capacity is 336 Gbps with throughput of up to 250 Mpps, and the MAC table holds 110,000 entries. There is no PoE on this model. Two power supply slots and two fan tray slots allow for redundancy, and one licence per switch covers all OS features with no port activation licences needed.

IRF stacking joins up to 9 switches into one logical unit, and the switch can be managed through the command-line interface or HPE Intelligent Management Center. The SFP+ ports accept 1G and 10G transceivers, and the QSFP+ ports accept 40G transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IRF stacking of up to 9 switches with convergence under 50 ms
- In-Service Software Update (ISSU) for upgrades without downtime
- Cut-through, low-latency switching
- Full IPv4/IPv6 dual-stack L2/L3 feature set
- OpenFlow and NETCONF support for SDN and automation
- Zero Touch Provisioning
- Hot-swappable redundant power supplies with reversible airflow
- Jumbo frames up to 9216 bytes
- IEEE 802.1ad QinQ and selective QinQ
- DLDP (Device Link Detection Protocol)
- Centralised management with HPE Intelligent Management Center (IMC)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ-45
- SFP+ ports: 4 x 1/10GbE
- QSFP+ ports: 2 x 40GbE
- PoE: None
- Switching capacity: 336 Gbps
- Throughput: up to 250 Mpps (64-byte packets)
- Latency: 1GbE under 5 µs, 40GbE under 1.2 µs (64-byte packets)
- Routing table size: 16,000 entries (IPv4), 8,000 entries (IPv6)
- MAC address table size: 110,000 entries
- Memory: 2 GB SDRAM, 8 MB packet buffer
- Flash: 1 GB
- Management ports: 1 x RJ-45 console, 1 x mini-USB, 1 x USB, 2 x out-of-band (1 x SFP GbE, 1 copper)
- Power supply slots: 2 (AC or DC)
- Fan tray slots: 2
- AC input: 100 to 240 VAC, 50/60 Hz
- DC input: -48 to -60 VDC
- Maximum power: 96 W (dual AC)
- Idle power: 70 W (dual AC)
- Operating temperature: -5 to 45 C
- Operating humidity: 10% to 95%, noncondensing
- Dimensions (W x D x H): 44 x 36 x 4.4 cm, 1U
- Weight: under 7.5 kg
- Emissions: Class A (CISPR 32, FCC Part 15 B, AS/NZS CISPR 32)

FAQs

Q: Does this switch need a licence?
A: One licence per switch covers all OS features. All ports are active from the outset, so no port activation licences are needed.

Q: Does it support PoE?
A: No. This model has no PoE, so it suits servers and uplink connections rather than powered devices such as access points or phones.

Q: How is it powered?
A: It has two AC or DC power supply slots, and at least one power supply is required. AC input is 100 to 240 VAC and DC input is -48 to -60 VDC. Power supplies and fan trays are ordered separately.

Q: What transceivers do the uplink ports take?
A: The 4 SFP+ ports accept 1G and 10G transceivers, and the 2 QSFP+ ports accept 40G transceivers. The SFP+ ports are fibre or DAC ports, not 10GBASE-T.

Q: Can it be stacked?
A: Yes. HPE IRF stacking joins up to 9 switches into a single logical device, managed as one unit.
