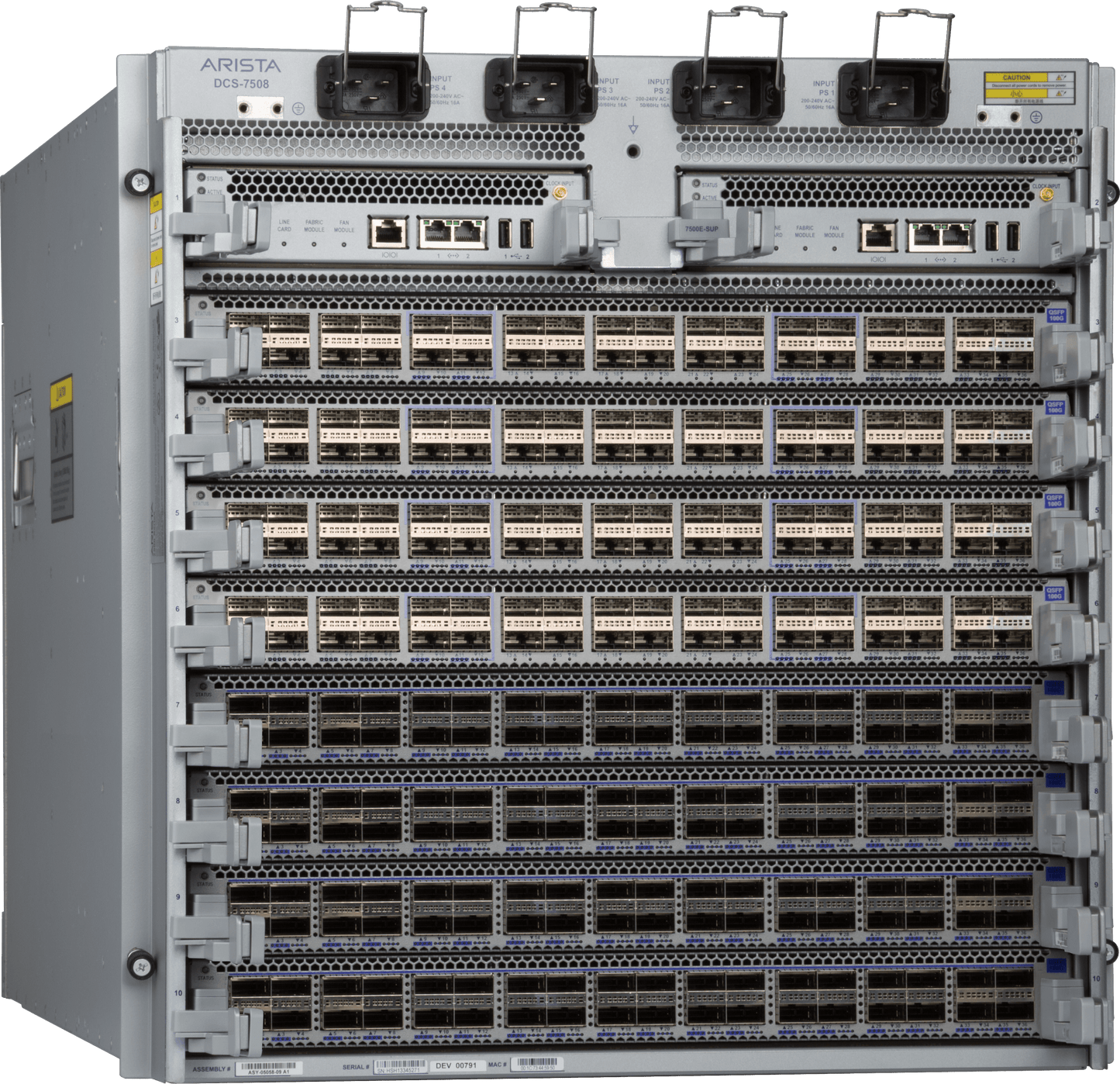

Arista DCS-7508N-CH | 7500R3 8-Slot 13 RU Modular Chassis Switch, Chassis Only

SKU:DCS-7508N-CH

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 7500R3 8-slot modular chassis is the 13 RU foundation of the Arista 7500R3 Series. It provides 2 supervisor slots, 8 line card slots and 6 fabric module slots, and is built for large-scale layer 2 and layer 3 cloud designs, overlay networks, virtualised or traditional enterprise data centre networks, internet peering, secure data centre interconnect and carrier edge and core routing.

This is the chassis only. Power supplies, fabric modules, supervisor module(s) and line cards are ordered separately. It offers 8 power supply slots with N+N redundancy using 3000W supplies, and a maximum system power of 9,024 W excluding optics. Throughput for the 7508N chassis is 153 Tbps and 32 Bpps, with per-line-card port density of up to 192 x 400G or 768 x 100G ports. Airflow is front-to-rear.

The chassis requires DCS-7508R3-FM fabric modules in fabric slots 1 to 6 and DCS-7500-SUP2 supervisor module(s). It accepts any 7500R3 Series line card, including OSFP and QSFP-DD 400G, QSFP 100G and SFP 25G interfaces. The chassis accessory kit is KIT-7508N, covering 2-post and 4-post mounting. Arista EOS runs on the switch, and optional software licences are available separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Deep packet buffer (16GB per line card) with virtual output queue architecture that eliminates head-of-line blocking
- Latency under 4 microseconds (64 bytes)
- N+N grid-redundant power, 1+1 supervisor redundancy, fabric module redundancy and N+1 fan module redundancy
- All components hot-swappable
- Supports 10G, 25G, 50G, 100G and 400G (OSFP and QSFP-DD) line cards
- Arista EOS single-binary extensible OS with CloudVision, EVPN, LANZ, ZTP, Accelerated sFlow and IEEE 1588 PTP
- Open programmable APIs (JSON-RPC, NETCONF) and full Linux shell access
- Seamless upgrade path with the 7500R Series for fabric modules, line cards and supervisors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Supervisor slots: 2
- Line card slots: 8
- Fabric module slots: 6
- Power supply slots: 8 (3000W AC or DC, N+N redundancy)
- Rack units: 13 RU
- Dimensions (H x W x D): 22.75 x 17.3 x 31.3 in (57.8 x 44.1 x 79.5 cm)
- Weight (chassis only): 95 lbs (43.1 kg)
- Weight (full system): 400 lbs (182 kg)
- Maximum throughput: 153 Tbps / 32 Bpps
- Maximum 400G density: 192 ports
- Maximum 100G density: 768 ports
- Maximum 40G density: 288 ports
- Maximum 25G, 50G and 10G density: 1536 ports
- Maximum power consumption: 9,024 W (at 40 C ambient, 100% load, excludes optics)
- Required fabric module: DCS-7508R3-FM, 6 per chassis
- Supervisor module: DCS-7500-SUP2, 1.9 GHz multi-core x86 64-bit, 32 GB RAM, 4 GB flash
- Airflow: front-to-rear
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m (0 to 10,000 ft)

FAQs

Q: Does this chassis include power supplies, fabric modules and line cards?
A: No. DCS-7508N-CH is the 8-slot, 13 RU chassis only. Power supplies, fabric modules, supervisor module(s) and line cards are ordered separately.

Q: Which power supplies can I use?
A: The chassis has 8 PSU slots with N+N redundancy using 3000W supplies. Options are PWR-3KT-AC-RED (200-240V AC), PWR-3KT-HV-RED (208-240V AC) and PWR-3K-DC-RED (-48 to -60V DC). Maximum system power is 9,024 W excluding optics.

Q: What do I need to make the chassis operational?
A: You need DCS-7508R3-FM fabric modules in fabric slots 1 to 6, at least one DCS-7500-SUP2 supervisor module, power supplies and 7500R3 Series line cards.

Q: Does it need a software licence?
A: Arista EOS runs on the switch. Optional licences for 8-slot modular chassis are LIC-MOD-2-E for enhanced routing, LIC-MOD-2-V for virtualisation, LIC-MOD-2-V2 for EOS extensions and security, and LIC-MOD-2-Z for monitoring and provisioning.

Q: What mounting kit is used?
A: The chassis accessory kit is KIT-7508N, which covers 2-post and 4-post mounting.
