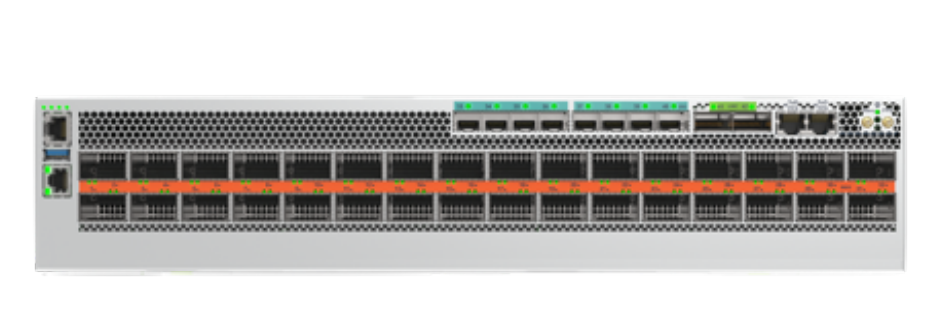

Arista DCS-7280R4-32PE-F | 7280R4 32-Port 800G OSFP Switch, Front-to-Rear, 2x AC

SKU:DCS-7280R4-32PE-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7280R4 is a 2RU deep-buffer data centre switch router built for cloud, AI/ML and Internet-edge deployments. It suits spine and leaf fabrics, peering and border routing, and data centre interconnect where ultra-deep buffering and large route scale matter.

This -F model provides 32 x 800GbE OSFP ports alongside 8 x SFP25 ports, with 25.6 Tbps of throughput (51.2 Tbps full duplex) and 9.6 Bpps forwarding. A 32GB packet buffer using a Virtual Output Queue architecture keeps latency from 3.8 us. It is the standard non-K model with front-to-rear airflow and two hot-swap AC power supplies in 1+1 redundancy, so it does not include TunnelSec encryption. An eight-core x86 CPU, 64GB of memory and a 480GB SSD support EOS, and PTP with SyncE and an OCXO provide precision timing.

The OSFP ports accept 100G to 800G modules, including 400G and 800G ZR and ZR+ coherent optics, and two QSFP-LS ports drive the ZR line system amplifier. The switch runs Arista EOS with Group 5 fixed-switch feature licences.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtual Output Queue architecture with deep buffering to avoid head-of-line blocking
- FlexRoute engine for Internet-scale routing
- Support for 400G and 800G ZR and ZR+ coherent optics with dedicated QSFP-LS ports
- EVPN-VXLAN, MPLS, Segment Routing, LDP, RSVP-TE and SR-TE
- Accelerated sFlow, LANZ and DANZ for visibility and microburst detection
- Inband Network Telemetry and Cluster Load Balancing for AI/ML clusters
- Field-replaceable supervisor module to reduce repair time without recabling
- CloudVision, Zero Touch Provisioning and open APIs including JSON-RPC and NETCONF

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x 800G OSFP, 8 x SFP25
- Maximum port density: 64 x 400G, 256 x 100G, 256 x 50G, 256 + 8 x 25G
- Throughput: 25.6 Tbps (51.2 Tbps full duplex)
- Forwarding rate: 9.6 Bpps
- Latency: From 3.8 us
- Packet buffer: 32 GB
- CPU: Eight-core x86
- System memory: 64 GB
- SSD storage: 480 GB
- Precision timing: PTP and SyncE with OCXO, PPS/10M/ToD inputs
- QSFP-LS ports: 2
- Management ports: 1 x 100/1000, 1 USB, 1 RS232 (RJ45)
- Supervisor module: 7001-SUP-L
- Power supplies: 2 x hot-swap PWR-3211 3200W (1+1 redundant)
- Typical / maximum power draw: 805 W / 1874 W (excludes transceivers)
- Fans: 4 hot-swap FAN-7022HQ (N+1 redundant)
- Airflow direction: Front to rear
- Form factor: 2RU
- Dimensions (W x H x D): 44 x 8.79 x 62.85 cm including handles
- Weight: 22.86 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
- Software: Arista EOS 4.35.0 or later, Group 5 feature licences

FAQs

Q: Does this switch need a software licence?
A: It runs Arista EOS and uses Group 5 fixed-switch feature licences, with a minimum of EOS 4.35.0. Optional licences cover Enhanced L3, Virtualization and Monitoring and Automation features.

Q: Does the DCS-7280R4-32PE-F support TunnelSec encryption?
A: No. TunnelSec (MACsec, IPsec and VXLANsec) is available only on the 7280R4K model and needs a licence file. This is the standard non-K model.

Q: What power supplies does it use?
A: It uses two hot-swap PWR-3211 3200W supplies in 1+1 redundancy, in the AC configuration for this SKU. The PWR-3211-HV input range is 200-277 VAC or 240-380 VDC.

Q: Which optics does it work with?
A: The OSFP ports accept 100G to 800G modules, including 400G and 800G ZR and ZR+ coherent optics. Two QSFP-LS ports connect the AMP-ZR amplifier used with the ZR line system.

Q: What is the airflow direction?
A: This -F model uses front-to-rear airflow, cooled by four hot-swap fans in N+1 redundancy.
