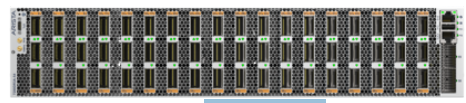

Arista DCS-7280DR3AK-54-F | 7280R3A 54-Port 400G QSFP-DD Switch, TunnelSec, 2x AC

SKU:DCS-7280DR3AK-54-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7280R3A is a fixed 2RU data centre switch router with 54 x 400GbE QSFP-DD ports. This R3AK variant adds TunnelSec encryption (MACsec, IPsec and VXLANsec) and the larger routing-table profiles, making it suited to large-scale cloud data centres, spine and leaf fabrics, Internet peering and border routing, and encrypted data centre interconnect. It runs Arista EOS and is also used in carrier edge, metro aggregation and MPLS or SR-TE cores.

The QSFP-DD ports break out to as many as 216 x 100G, 348 x 50G or 348 x 25/10G interfaces, and can also run QSFP+ optics at 40G. Throughput is 21.6 Tbps (43.2 Tbps full duplex) at 8.1 Bpps, with latency from 3.8 us and a 24 GB packet buffer. TunnelSec runs at wire speed on all ports, and the large-scale routing profiles support over 5M IPv4 routes with FlexRoute. This SKU has front-to-rear airflow, 2 x hot-swap AC power supplies (1+1) and 4 x hot-swap fans (N+1).

Two OSFP-LS line-system ports support the AMP-ZR amplifier for dense 400G DWDM, and the switch supports 400G ZR and ZR+ optics. EOS 4.29.1 or later is required, and the switch is managed with CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- TunnelSec wire-speed AES-256-GCM encryption on all speeds from 10G to 400G, including MACsec, IPsec and VXLANsec
- Large-scale routing profiles with up to 3950k IPv4 unicast routes and 384k MAC addresses in the L3-XXXL profile, plus FlexRoute
- Deep-buffer virtual output queue architecture that eliminates head-of-line blocking
- 400G ZR and ZR+ optics support, with OSFP-LS ports for the AMP-ZR amplifier in dense DWDM designs
- PTP (IEEE 1588) and Synchronous Ethernet timing
- Arista EOS with CloudVision, EVPN-VXLAN, LANZ, ZTP, Accelerated sFlow and eAPI, JSON-RPC and NETCONF programmability
- Carrier and cloud routing with LDP, RSVP-TE, SR-TE and TI-LFA
- Power supplies over 94% efficient, designed for NEBS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 54 x 400G QSFP-DD
- Breakout capacity: up to 216 x 100G, 348 x 50G, 348 x 25/10G
- 40G support: up to 54 ports using QSFP+
- Line-system ports: 2 x OSFP-LS
- Throughput: 21.6 Tbps (43.2 Tbps FDX)
- Forwarding rate: 8.1 Bpps
- Latency: from 3.8 us
- Packet buffer: 24 GB
- System memory: 64 GB
- CPU: Eight-core x86
- SSD storage: 120 GB
- Management: 1 x 100/1000 port, 1 x RS-232 RJ-45 serial, 1 x USB
- Precision timing: PTP and SyncE with OCXO and PPS/10M/ToD inputs
- Encryption: TunnelSec on all ports (MACsec, IPsec, VXLANsec)
- Power supplies: 2 x hot-swap PWR-3001 AC (1+1 redundant)
- Fans: 4 x hot-swap FAN-7012H (N+1 redundant)
- Airflow: front to rear
- Power draw: 933 W typical, 1715 W maximum (excluding transceivers)
- Rack units: 2RU
- Dimensions (WxHxD): 43.99 x 8.79 x 76.39 cm including handles
- Weight: 27.94 kg
- Minimum EOS: 4.29.1
- Operating temperature: 0 to 40 C
- Operating altitude: 0 to 3,000 m

FAQs

Q: Does the TunnelSec encryption need a licence?
A: TunnelSec is an EOS licensed feature and needs a licence file. The switch runs EOS feature licence Group 5 with a minimum of EOS 4.29.1.

Q: What power supplies does this SKU use?
A: It uses 2 x hot-swap PWR-3001 AC power supplies in a 1+1 redundant arrangement, with an IEC 60320 C20 input. Typical draw is 933 W and maximum draw is 1715 W, excluding transceivers.

Q: Can the 400G ports run at lower speeds?
A: Yes. The QSFP-DD ports break out to 4 x 100G, 50G or 25/10G, and also accept QSFP+ optics at 40G. Maximum port counts depend on the transceivers and cables used.

Q: What is the airflow direction?
A: This SKU has front-to-rear airflow, using 4 x hot-swap FAN-7012H fans in an N+1 arrangement.

Q: How does this model differ from other 7280R3A variants?
A: The 7280DR3AK-54 is the large-routes variant with TunnelSec (MACsec, IPsec and VXLANsec), front-to-rear airflow and 2 x AC power supplies, aimed at large-scale routing and encrypted data centre interconnect.
