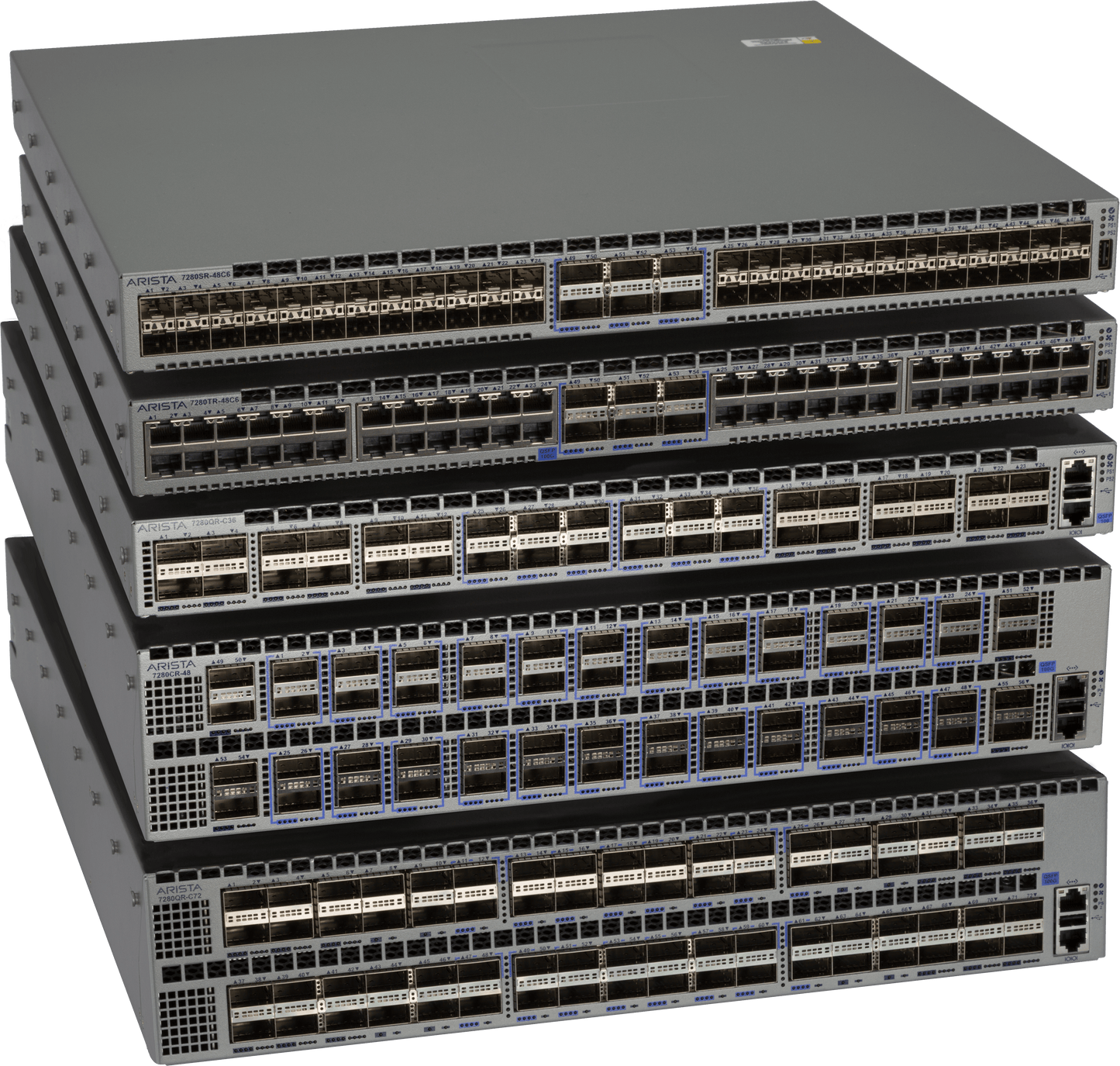

Arista DCS-7280CR3-32D4 | 7280R3 32-Port 100G Switch, 4x 400G QSFP-DD, 8GB

SKU:DCS-7280CR3-32D4

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7280CR3-32D4 is a 1RU fixed-configuration data centre switch router from the 7280R3 family. It is built for data centre spine and leaf designs, secure Internet peering, carrier edge VPN services, EVPN services for 5G/MEC, and carrier core transport using LDP, RSVP-TE and SR-TE.

The front panel provides 32 x 100G QSFP100 ports and 4 x 400G QSFP-DD ports, giving 4.8 Tbps of wire-speed throughput (9.6 Tbps FDX) and 2 Bpps of packet forwarding. An 8 GB deep packet buffer with Virtual Output Queues per port avoids head-of-line blocking, and latency starts from 3.8 us. The system runs on a quad-core x86 CPU with 8 GB of system memory, with 64 GB optional. It is supplied with standard route scale rather than the K variant, and the fans and power supplies are configurable.

It runs Arista EOS from a single binary image, with full Linux shell access, CloudVision, EVPN, LANZ microburst detection and open APIs. The 4 x 400G ports use QSFP-DD, and the 100G ports can break out to 50G and 25/10G depending on transceiver and cable support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Ultra-deep packet buffer with Virtual Output Queues per port to eliminate head-of-line blocking
- Redundant hot-swap power supplies and fans with front-to-rear or rear-to-front cooling
- Over 94% efficient power supplies
- Arista EOS with a single binary image, full Linux shell access and bash, python and C++ extensibility
- CloudVision, EVPN, LANZ microburst detection, Zero Touch Provisioning and Accelerated sFlow
- Over 2M IPv4 unicast routes, up to 384K MAC addresses and algorithmic ACLs for 100K+ rules
- Open programmable APIs (JSON-RPC, NETCONF) with PTP and SyncE timing support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x QSFP100, 4 x QSFP-DD
- Max 400G ports: 4
- Max 100G ports: 48
- Max 50G ports: 96
- Max 40G ports (using QSFP+): 36
- Max 25/10G ports: 96
- Max total interfaces: 96
- Throughput (FDX): 4.8 (9.6) Tbps
- Packets per second: 2 Bpps
- Latency: From 3.8 us
- CPU: Quad-Core x86
- System memory: 8 GB (64 GB optional)
- Packet buffer memory: 8 GB
- SSD storage: 120 GB with 64 GB system
- USB ports: 1
- 100/1000 management ports: 1
- RS-232 serial ports: 1 (RJ-45)
- Hot-swap power supplies: 2 (1+1 redundant)
- Hot-swappable fans: 3 (N+1 redundant)
- Airflow direction: Front to rear and rear to front
- Rack units: 1 U
- Size (W x H x D): 43.99 x 4.37 x 55.83 cm
- Typical/Max power draw: 535 W / 851 W
- Weight: 12.27 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.22.1

FAQs

Q: Does this switch need a software licence?
A: It runs Arista EOS and sits in EOS Feature License Group 3. Feature licences are separate from the hardware. The minimum EOS version is 4.22.1.

Q: What power supplies and fans does it use?
A: It uses two hot-swap PWR-1011 power supplies (AC or DC) in a 1+1 redundant arrangement, and a FAN-7011H fan tray with 3 hot-swap fans in an N+1 arrangement. Typical draw is 535 W and maximum is 851 W.

Q: What optics do the 400G ports take?
A: The 4 x 400G ports are QSFP-DD, not OSFP. The 32 x 100G ports are QSFP100 and can break out to 50G and 25/10G, subject to transceiver and cable support.

Q: How does this SKU differ from other 7280R3 models?
A: This SKU provides 32 x 100G QSFP plus 4 x 400G QSFP-DD ports, 8 GB of system memory and standard route scale (non-K). Fans and power supplies are configurable.

Q: What airflow options are available?
A: The switch supports front-to-rear and rear-to-front airflow, set by the fan and power supply configuration.
