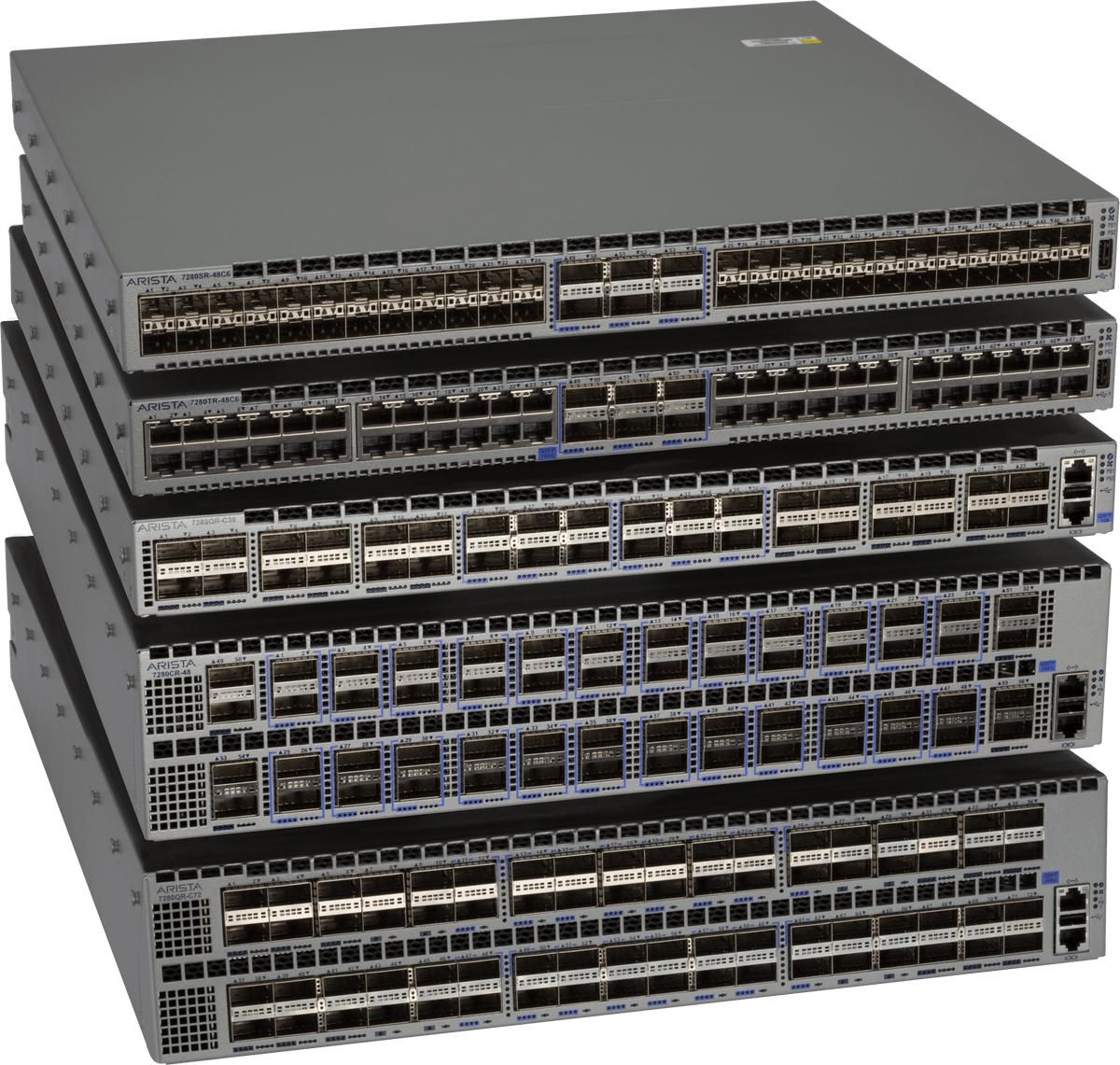

Arista DCS-7280CR2A-60-DC-F | 7280R 60-Port 100G QSFP28 Switch, 2x DC PSU, Front-to-Rear

SKU:DCS-7280CR2A-60-DC-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7280R is a 2RU fixed-configuration data centre switch router built for high-density 100G leaf and spine deployments, data centre core roles, and cloud or service-provider routing and peering where deep buffers and high-scale ACL and telemetry are needed.

This model provides 60 x 100GbE QSFP100 ports with 12 Tbps of full-duplex throughput, a 5.02 Bpps forwarding rate and latency from 3.8 us. A 24 GB packet buffer, 16 GB of system memory and 4 GB of flash with an included SSD support demanding workloads. Each port can run at 100GbE, 50GbE, 40GbE, 25GbE or 10GbE through optics or breakout cables. This SKU is the DC-powered variant with two hot-swap 1900W DC power supplies in a 1+1 redundant arrangement, four N+1 hot-swap fans with front-to-rear airflow, and AlgoMatch for scalable access control, policy-based forwarding and telemetry. It differs from the -60-F model, which uses two AC supplies.

The platform runs Arista EOS and requires EOS Feature License Group 4, with a minimum of EOS 4.19.1. The QSFP ports accept 100GBASE-SR4, LR4, CWDM4, FR, DR, PSM4 and ERL4 optics, as well as AOC and CR4 DAC cables, and 40G QSFP+ optics and cables. The switch is managed with CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed 10/25/40/50/100GbE flexibility using optics or breakout cables
- AlgoMatch for scalable access control lists, policy-based forwarding and telemetry
- 24 GB deep packet buffer for data centre leaf, spine and routing roles
- Up to 128-way ECMP, MLAG and VXLAN bridging and routing
- CloudVision management, LANZ microburst detection, DANZ advanced mirroring and Zero Touch Provisioning
- Accelerated sFlow, IEEE 1588 PTP and VM Tracer
- Hot-swap redundant DC power supplies and N+1 fans
- Single-binary Arista EOS with stateful fault repair and containment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 60 x 100GbE QSFP100 (QSFP28)
- Maximum port density: 60 x 100GbE, 120 x 50GbE, 60 x 40GbE, 240 x 25GbE or 240 x 10GbE
- Throughput (full duplex): 12 Tbps
- Forwarding rate: 5.02 Bpps
- Latency: from 3.8 us
- CPU: multi-core x86
- System memory: 16 GB
- Packet buffer: 24 GB
- Flash storage: 4 GB, SSD included
- Management: 1 x 100/1000 port, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x 1900W DC, hot-swap, 1+1 redundant (40-72 VDC input)
- Typical / maximum power draw: 1760W / 1900W
- Fans: 4 x hot-swap, N+1 redundant (FAN-7002H-F)
- Airflow: front to rear (not reversible)
- Form factor: 2RU
- Dimensions (W x H x D): 48.3 x 8.9 x 64 cm
- Weight: 24.9 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- Software: Arista EOS 4.19.1 or later, Feature License Group 4

FAQs

Q: What licensing does this switch need?
A: It runs Arista EOS and requires EOS Feature License Group 4, with a minimum of EOS 4.19.1.

Q: What power input does it need?
A: It uses two hot-swap DC power supplies in a 1+1 redundant arrangement, rated 40-72 VDC input. Typical draw is 1760W with a maximum of 1900W.

Q: How does it differ from the DCS-7280CR2A-60-F?
A: This SKU is powered by two DC supplies, while the -60-F uses two AC supplies. Both are 60-port 100G models with front-to-rear airflow and AlgoMatch.

Q: Which optics and cables work in the QSFP ports?
A: The ports support 100GBASE-SR4, SWDM4, LR4, CWDM4, FR, DR, PSM4 and ERL4 optics, plus 100G AOC and CR4 DAC. They also accept 40G QSFP+ optics and cables, with 25G and 10G available through breakout.

Q: Can the airflow direction be reversed?
A: No. This model uses front-to-rear airflow and the airflow is not reversible.
