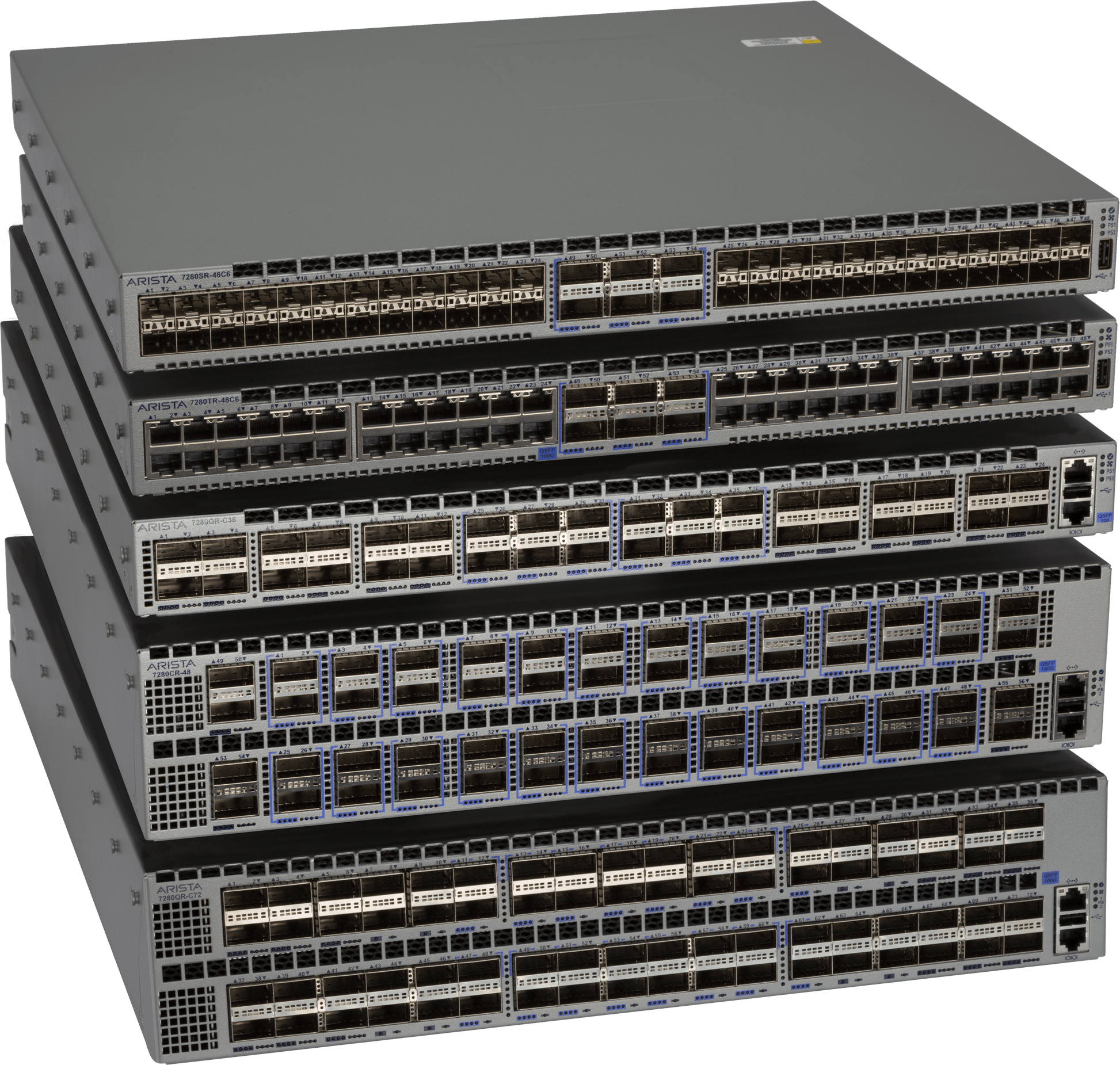

• Stack of five silver arista dcs-7280cr2-60-f 100g network switches with ethernet ports and blue accent lighting
1 1

Arista

Arista DCS-7280CR2-60-F | 7280R2 60-Port 100G Switch, 12Tbps, 24GB Buffer, 2RU

DCS-7280CR2-60-F

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Arista DCS-7280CR2-60-F is a high-performance 2RU data center switch router designed for spine, core, and data center interconnect deployments. It delivers 60 x 100GbE QSFP100 ports with 12 Tbps non-blocking switching capacity and 24GB deep packet buffer for efficient burst traffic management. Built on Arista EOS, this switch provides full Layer 2/3 capabilities including BGP, MPLS, Segment Routing, EVPN, and VXLAN, making it ideal for large-scale enterprise and service provider networks.

Features

Full Layer 2/3 switch router with wire-speed forwarding
- BGP, OSPF, IS-IS routing protocols with full Internet routing table support
- MPLS support including LDP, RSVP-TE, and BGP Labeled Unicast
- Segment Routing (SR-MPLS) and 128-way ECMP for optimal path distribution
- VXLAN and EVPN for network virtualization and overlay networks
- Virtual Output Queue (VOQ) architecture eliminates head-of-line blocking
- 24GB deep packet buffer for efficient traffic management
- IEEE 1588v2 PTP hardware-assisted Precision Time Protocol for network synchronization
- Advanced telemetry: LANZ, sFlow, Advanced Event Management (AEM), DANZ, gNMI streaming
- Arista EOS modular operating system with in-service software updates
- CloudVision integration for centralized management and automation
- Zero-Touch Provisioning (ZTP) for automated configuration deployment
- Native Python and Bash scripting with full Linux shell access
- eAPI (JSON-RPC) RESTful programmatic interface
- Hot-swappable dual redundant power supplies (1+1) and N+1 fan trays
- Front-to-rear airflow design for efficient data center cooling
- Optional built-in SSD for advanced logging and data capture

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

60 x 100GbE QSFP100 ports supporting breakout to 4x25GbE or 4x10GbE (up to 240x 10GbE or 240x 25GbE)
- Switching capacity: 12 Tbps non-blocking, full-duplex
- Forwarding rate: 5.02 Bpps (Billion Packets per Second)
- Latency: 3.8 µs store-and-forward
- Packet buffer: 24GB deep buffer with Virtual Output Queue (VOQ) architecture
- MAC address table: 768,000 entries
- Routing table: 768K IPv4 and IPv6 host routes, 1.3M IPv4 LPM routes, 1M IPv6 LPM routes
- Memory: 16GB DRAM, multi-core x86 CPU
- Management: CLI, Web GUI, SNMP, sFlow, CloudVision, Zero-Touch Provisioning (ZTP), eAPI, Python/Bash scripting
- Power: Dual hot-swappable AC power supplies (1900W), 1+1 redundancy; 1660W typical / 1850W maximum draw
- Airflow: Front-to-rear (port side intake, non-port side exhaust)
- Redundancy: Hot-swappable power supplies and N+1 fan trays
- Form factor: 2RU rack-mountable
- Dimensions: 3.5" H x 19" W x 25.2" D
- Weight: 54.8 lbs (24.9 kg) approximate
- Operating system: Arista EOS (Extensible Operating System)

FAQs

Q: What deployment scenarios is the DCS-7280CR2-60-F best suited for?
A: This switch is ideal for data center spine and core deployments, Internet peering, data center interconnect (DCI), and high-density 100GbE leaf/spine architectures. Its deep buffer and Layer 3 routing capabilities make it well-suited for service provider and large enterprise networks.

Q: Can the 100GbE ports be broken out to lower speeds?
A: Yes, each QSFP100 port supports flexible breakout to 4x25GbE or 4x10GbE, enabling configurations up to 240 x 25GbE or 240 x 10GbE ports. This provides deployment flexibility for mixed-speed environments.

Q: What Layer 3 routing protocols and features does this switch support?
A: The DCS-7280CR2-60-F supports full Layer 3 switch router capabilities including BGP, OSPF, IS-IS, MPLS (LDP, RSVP-TE, BGP LU), Segment Routing (SR-MPLS), EVPN, VXLAN, and 128-way ECMP. It can support full Internet routing tables with 1.3M IPv4 LPM routes.

Q: What is the significance of the 24GB deep packet buffer?
A: The 24GB Virtual Output Queue (VOQ) deep buffer architecture provides substantial burst absorption capacity, handling transient congestion, TCP incast events, and bursty traffic patterns without packet drops. This is critical for high-performance data center applications.

Q: Is this switch compatible with Arista CloudVision management?
A: Yes, the DCS-7280CR2-60-F integrates with Arista CloudVision for centralized network-wide configuration management, change control, topology visualization, and compliance monitoring. It also supports Zero-Touch Provisioning (ZTP) for automated deployment.
