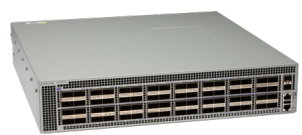

Arista DCS-7260CX3-64E-DC-R | 7260X3 64-Port 100G Switch, Enhanced, DC, Rear-to-Front

SKU:DCS-7260CX3-64E-DC-R

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7260X3 Enhanced (64E) is a 2RU data centre switch for 100GbE top-of-rack and spine tiers, middle or end-of-row leaf and collapsed spine designs, high-density storage and low-latency financial trading. It runs Arista EOS and suits big data, cloud, virtualised and traditional data centre builds.

The switch provides 64 QSFP100 ports (40GbE and 100GbE, with breakout to 10G, 25G and 50G) plus 2 SFP+ ports, for up to 12.8 Tbps of full duplex throughput and a 4.2 Bpps forwarding rate. Latency starts from 450 ns and the 42 MB dynamic packet buffer helps absorb microbursts. This SKU is the DC-powered variant with rear-to-front airflow, using 1900W DC hot-swap power supplies (40-72 VDC input) in a 1+1 redundant arrangement with N+1 hot-swap fans. The Enhanced 64E model gives extra power and cooling headroom, so ports can carry optics up to 4.5W, and up to 5W on selected ports.

QSFP ports accept 40G and 100G optics and cables, while the SFP+ ports take 10G modules and 1GbE SX, LX or TX. Feature licences are the Group 3 fixed-switch licences, with a minimum EOS of 4.23.0.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Arista EOS single binary image with full Linux shell access
- Dynamic Buffer Allocation for microburst absorption
- VXLAN, OpenFlow, DirectFlow and eAPI support
- CloudVision, Zero Touch Provisioning, LANZ microburst detection, DANZ mirroring and sFlow
- PFC and ETS for congestion management, plus Cluster Load Balancing
- 264K MAC entries and 180K IPv4 routes
- 1+1 redundant hot-swap power supplies and N+1 redundant hot-swap fans
- Breakout support for up to 128 x 10G, 25G or 50G ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 64x QSFP100 (40/100GbE) and 2x SFP+
- Max 100GbE ports: 64
- Max 50GbE ports: 128
- Max 40GbE ports: 64
- Max 25GbE ports: 128
- Max 10GbE ports: 130
- Throughput: 6.4 Tbps (12.8 Tbps full duplex)
- Forwarding rate: 4.2 Bpps
- Latency: from 450 ns
- CPU: Dual-Core x86
- System memory: 8 GB
- Flash storage: 30 GB
- Packet buffer: 42 MB dynamic buffer allocation
- Management: 1x 10/100/1000 port, 1x RJ-45 RS-232 serial, 1x USB
- Power supplies: 2x hot-swap 1900W DC, 1+1 redundant
- Fans: 4x hot-swap, N+1 redundant, rear-to-front airflow
- Power draw: 314 W typical, 927 W maximum
- DC input: 40-72 VDC, 44A max at -48V
- Size: 48.3 x 8.8 x 45.7 cm (2RU)
- Weight: 15.6 kg
- Operating temperature: 0 to 40 C
- Operating altitude: 0 to 3,000 m
- Minimum EOS: 4.23.0

FAQs

Q: Which power supplies does this model use?
A: This DC variant uses 1900W DC supplies (PWR-1900-DC-R) with a 40-72 VDC input, 44A maximum at -48V. Two hot-swap supplies run in a 1+1 redundant arrangement.

Q: What airflow direction does this SKU have?
A: The -R suffix indicates rear-to-front airflow, using the FAN-7002H-R fan modules with N+1 redundant hot-swap fans.

Q: What does the Enhanced 64E model add?
A: The Enhanced model adds power and cooling headroom so every QSFP port can carry 4.5W optics, with ports 13, 15, 17, 19, 46, 48, 50 and 52 supporting up to 5W.

Q: Which optics and speeds are supported?
A: QSFP ports take 40G and 100G optics and cables, and can break out to 10G, 25G and 50G. The SFP+ ports take 10G modules and 1GbE SX, LX or TX.

Q: Which software and licences does it use?
A: It runs Arista EOS, with a minimum version of 4.23.0. Optional features such as Enhanced L3, VXLAN and monitoring and automation are enabled through Group 3 fixed-switch licences.
