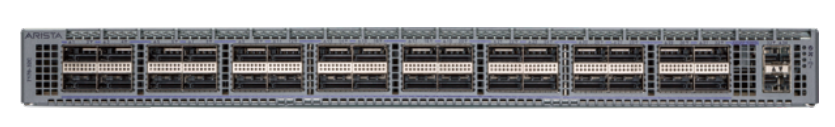

Arista DCS-7170-32C-F | 7170 32-Port 100G QSFP Switch, Front-to-Rear, 2x AC

SKU:DCS-7170-32C-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7170 is a 1RU fixed-configuration programmable data centre switch built for high-density 100GbE leaf or spine switching in cloud and large-scale data centre networks. Its programmable architecture lets operators reconfigure packet parsing, lookups, traffic scheduling, packet modification and monitoring, and every QSFP port supports flexible 10G to 100G breakout.

This SKU is the High Capacity variant with front-to-rear airflow and two AC power supplies. It provides 32 QSFP100 ports (40/100GbE) plus 2 SFP+ ports, with 6.4 Tbps throughput, up to 2.4 Bpps forwarding and latency from 800 ns. It carries a 20 MB packet buffer and 16 GB of system memory. Port density scales to 128 x 25GbE or 130 x 10GbE using breakout. Dual 747W AC hot-swap supplies run 1+1 redundant, with four hot-swap fans in an N+1 arrangement. Typical draw is 221 W and maximum draw is 490 W.

The switch runs Arista EOS (minimum release 4.21.0F) and sits in EOS Feature License Group 2. The QSFP ports accept 40G and 100G optics and DAC/AOC cables, while the SFP+ ports take 10G and 1GbE modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Programmable architecture for reconfiguring packet parsing, lookups, traffic scheduling, packet modification and monitoring
- Flexible 10G/25G/40G/50G/100G operation on all QSFP ports via breakout, with hitless speed changes
- 128-way ECMP and 64-way MLAG for scale-out leaf-spine designs
- VXLAN routing, bridging and gateway capability
- AlgoMatch flow matching and Network Address Translation
- CloudVision, Zero Touch Provisioning, LANZ microburst detection and DANZ advanced mirroring
- Advanced telemetry with packet traces and user-defined triggers
- Arista EOS single binary image with full Linux shell access, extensible with bash, python, C++, GO and OpenConfig
- Over 93% efficient power supplies with tool-less rails for simple installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x QSFP100 (40/100GbE) + 2 x SFP+
- Throughput: 6.4 Tbps
- Packets per second: up to 2.4 Bpps
- Latency: from 800 ns
- Packet buffer: 20 MB
- System memory: 16 GB (32 GB optional)
- Flash storage: 30 GB
- CPU: Multi-core x86
- Max port counts: 32 x 100GbE, 64 x 50GbE, 32 x 40GbE, 128 x 25GbE, 130 x 10GbE
- Management: 1 x 10/100/1000 port, 1 x RJ-45 RS-232 serial, 1 x USB
- Power supplies: 2 x 747W AC hot-swap, 1+1 redundant
- Input: 100-240VAC, 50/60Hz, IEC C13
- Fans: 4 x hot-swap, N+1 redundant
- Airflow: front-to-rear
- Typical/max power draw: 221 W / 490 W
- Form factor: 1RU, 19 x 1.75 x 16 inches (48.3 x 4.4 x 40.64 cm)
- Weight: 22 lbs (10 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: up to 3,000 m (10,000 ft)
- Minimum EOS: 4.21.0F
- EOS feature licence group: Group 2

FAQs

Q: Which optics and cables work in the QSFP and SFP+ ports?
A: The QSFP ports support 40G optics (SR4, XSR4, SRBD, UNIV, PLR4, LR4, ER4, CR4, AOC) and 100G optics (SR4, XSR4, SWDM4, SRBD, LR, LR4, XCWDM4, CWDM4, PSM4, ERL4, AOC, CR4), plus 25GBASE-CR via QSFP to SFP25 breakout. The SFP+ ports support 10G (CR, AOC, SR, SRL, LR, ER, ZR, DWDM) and 1GbE SX/LX/TX.

Q: Which EOS licences are available for this switch?
A: It runs Arista EOS and is in Feature License Group 2. Optional licences include LIC-FIX-2-E (Enhanced L3), LIC-FIX-2-V (Virtualization), LIC-FIX-2-V2 (EOS Extensions, Security and Partner Integration), LIC-FIX-2-Z (Monitoring and Automation) and LIC-FIX-2-FLX-L (FLX-Lite routing, EVPN, VXLAN, SR).

Q: What power supplies does it use?
A: It uses two hot-swap 747W AC supplies (100-240VAC, 50/60Hz, IEC C13) in a 1+1 redundant arrangement. Typical draw is 221 W and maximum draw is 490 W.

Q: What airflow does this SKU have and which fan modules fit?
A: This SKU is front-to-rear airflow with four hot-swap fans in an N+1 arrangement. The spare fan modules for 1RU 7170 systems are FAN-7000H-F and FAN-7000H-R.

Q: Can the 100G ports run at lower speeds?
A: Yes. Every QSFP port supports flexible 10G, 25G, 40G, 50G and 100G operation via breakout, with hitless speed changes. This allows up to 128 x 25GbE or 130 x 10GbE ports.
