Arista

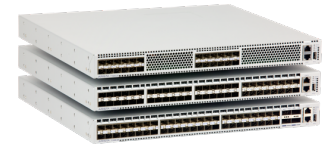

Arista DCS-7150SC-24-CLD-R | 7150SC 24-Port 10G SFP+ Switch, Precision Clock, R-to-F

SKU:DCS-7150SC-24-CLD-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7150SC is an ultra low latency 1RU layer 2/3/4 wire-speed switch built for financial ECNs, HPC clusters and cloud data centres that need deterministic latency and precision timing. The 7150SC variant of the 7150 Series has a higher performance control plane and meets newer RoHS requirements.

This SKU provides 24 SFP+ ports, each running 1G or 10G, with AgilePorts allowing groups of adjacent SFP+ ports to be configured for 40GbE (up to 4 x 40GbE). It delivers 480 Gbps throughput and 360 Mpps with latency from 350ns. A high precision IEEE 1588 PTP clock, a 120GB SSD, two hot-swap AC power supplies and rear-to-front airflow distinguish it from other 7150SC variants. It runs EOS as a Group 1 fixed switch, with Base EOS included and optional add-on licences available for enhanced L3, monitoring and automation, and FLX-Lite routing.

The SFP+ ports accept 10GBASE-CR, AOC, SR, SRL, LR, LRL, ER, ZR and DWDM optics, as well as 1GbE SX/LX and 100/1000BASE-T. EOS 4.22.0 or later is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed L2 and L3 forwarding with the same latency for both
- AgilePorts: each SFP+ supports 100M to 10G, and adjacent port groups can be set to 40Gb
- LANZ microburst analysis and DANZ advanced mirroring with TAP aggregation
- IEEE 1588 PTP transparent clock and boundary clock with high precision oscillator
- Ultra low latency NAT (MNAT)
- Zero Touch Provisioning, eAPI, Linux tools and bash shell access
- 32-way MLAG and ECMP routing
- VXLAN routing and bridging with VMTracer VMware integration
- CloudVision management support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 1/10GbE SFP+
- Max 40GbE ports: 4 (via AgilePorts)
- Throughput: 480 Gbps
- Packets per second: 360 Mpps
- Latency (SFP+ ports): from 350ns
- Clock: high precision IEEE 1588 PTP
- CPU: Quad-Core x86
- System memory: 4 GB
- Flash storage: 8 GB
- SSD storage: 120 GB
- Packet buffer memory: 9.5MB (dynamic allocation)
- Management ports: 1 x 100/1000, 1 x RS-232 (RJ-45), 1 x USB
- Power supplies: 2 x hot-swap AC (1+1 redundant)
- Fans: 4 x hot-swap (N+1 redundant)
- Airflow: rear-to-front
- Typical/max power draw: 191 W / 334 W
- AC input: 100-240 VAC, 50/60 Hz, IEC 320-C13
- MAC addresses: 64,000
- IPv4 routes (unicast): 70,000
- ECMP: 32-way
- Minimum EOS version: 4.22.0
- EOS licence group: Group 1
- Form factor: 1RU, 19-inch rackmount
- Dimensions (W x H x D): 44.5 x 4.4 x 40.64 cm
- Weight: 8.18 kg
- Operating temperature: 0 to 40 C

FAQs

Q: Does this switch need a licence to run?
A: Base EOS is included. Optional add-on licences cover enhanced L3 routing (LIC-FIX-1-E), monitoring and automation (LIC-FIX-1-Z), EOS extensions and security (LIC-FIX-1-V2), and FLX-Lite routing (LIC-FIX-1-FLX-L).

Q: What airflow direction and power supplies does this SKU use?
A: This SKU uses rear-to-front airflow with two hot-swap AC power supplies in a 1+1 redundant configuration. The matching spare PSU is PWR-460AC-R and the matching fan module is FAN-7000-R.

Q: What optics and cables work in the SFP+ ports?
A: The ports support 10GBASE-CR copper (0.5-5m), AOC (3-30m), SR, SRL, LR, LRL, ER, ZR and DWDM optics up to 80km, plus 1GbE SX/LX and 100/1000BASE-T.

Q: Can the SFP+ ports run at 40GbE?
A: Yes. With AgilePorts, groups of adjacent SFP+ ports can be configured as 40GbE, giving up to four 40GbE ports.

Q: How does this SKU differ from other 7150SC-24 variants?
A: This model adds a high precision IEEE 1588 PTP clock and a 120GB SSD, and uses rear-to-front airflow with two AC power supplies.
