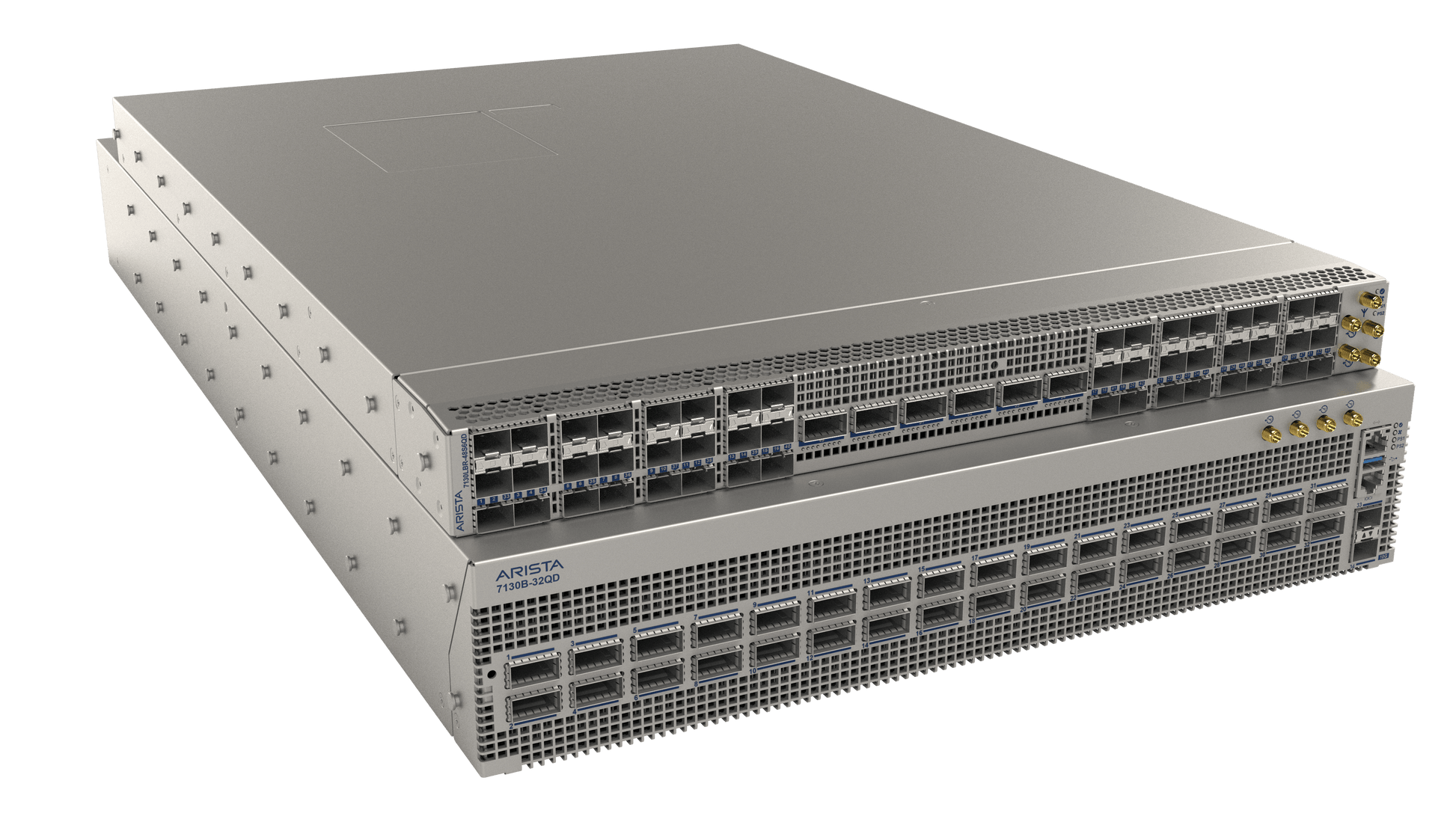

Arista DCS-7130-96S-F | 7130 Connect 96-Port 10G SFP+ L1 Switch, 6ns, 2xAC

SKU:DCS-7130-96S-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7130 Connect is a 96-port SFP+ Layer 1 switch built for ultra-low-latency environments such as trading, financial and other latency-sensitive data centre networks. It handles signal regeneration, media conversion, dynamic patching and port mirroring at the physical layer, with bit-for-bit forwarding of any protocol.

The platform provides 96 SFP+ ports supporting 100M to 11.3Gbps per port, plus 2 RJ45 ports. Layer 1 latency is 6 ns with less than 100 ps of jitter. This SKU uses front-to-rear airflow and is fitted with 2 AC power supplies in a 1+1 redundant arrangement, with 3 hot-swappable fan trays in a 2U chassis. Maximum power draw on the 96-port platform is 606 W.

The SFP+ ports accept 10GBASE-CR, SRL, SR, LRL, LR, ER and DWDM media, and the RJ45 ports support 1000BASE-T. Management is Linux based, with an industry-standard CLI and a JSON RPC API.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Signal regeneration and media conversion at the same line rate
- Dynamic patching and link management without rewiring
- Port mirroring with identical latency for 1:N replication
- Layer 1+ packet statistics on every port
- Embedded influxdb database, eye diagram, tcpdump and LLDP for monitoring and diagnostics
- Full SFP+ interface diagnostics including light levels, temperature and voltage
- Dual redundant hot-swappable power supplies and fan trays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 96 x SFP+ and 2 x RJ45
- Port speed: 100M to 11.3Gbps per port
- Layer 1 latency: 6 ns
- Jitter: less than 100 ps
- Forwarding: non-blocking, bit-for-bit for any protocol
- Rack units: 2U
- Size (WxHxD): 17.6 x 3.3 x 14.9 in (44.8 x 8.7 x 37.9 cm)
- Weight: 12 kg / 26 lbs
- Maximum power draw: 606 W
- Power supplies: 2 hot-swap, 1+1 redundant
- Compatible power supplies: PWR-747AC, PWR-1900DC
- Fan trays: 3 hot-swappable, 1+1 redundant
- Fan tray model: FAN-7130-2U
- Airflow: front-to-rear
- Operating temperature: 0 to 40 C (32 to 104 F)
- Relative humidity: 10% to 85% non-condensing
- Maximum altitude: 2,000 m (6,500 ft)
- PWR-747AC input: 100-240V AC, 50/60Hz, IEC 320-C13
- Management: Linux based, CLI and JSON RPC API

FAQs

Q: What airflow and power configuration does the -F SKU use?
A: The -F suffix indicates front-to-rear airflow, and this SKU is configured with 2 AC power supplies in a 1+1 redundant arrangement.

Q: What media can the SFP+ ports use?
A: The SFP+ ports support 10GBASE-CR (0.5 to 5 m), SRL (100 m), SR (300 m), LRL (1 km), LR (10 km), ER (40 km) and DWDM (80 km) media, plus 40GBASE-CR4 cabling. The RJ45 ports support 1000BASE-T.

Q: Which power supplies and fan trays does the 96-port platform use?
A: The 96-port platform uses PWR-747AC (100-240V AC) or PWR-1900DC (40-72V DC) power supplies and the FAN-7130-2U fan tray.

Q: How is the switch managed?
A: Management is Linux based, with an industry-standard CLI and a JSON RPC API.

Q: What is the latency of this switch?
A: Layer 1 latency on the 96-port 7130 platform is 6 ns with less than 100 ps of jitter.
