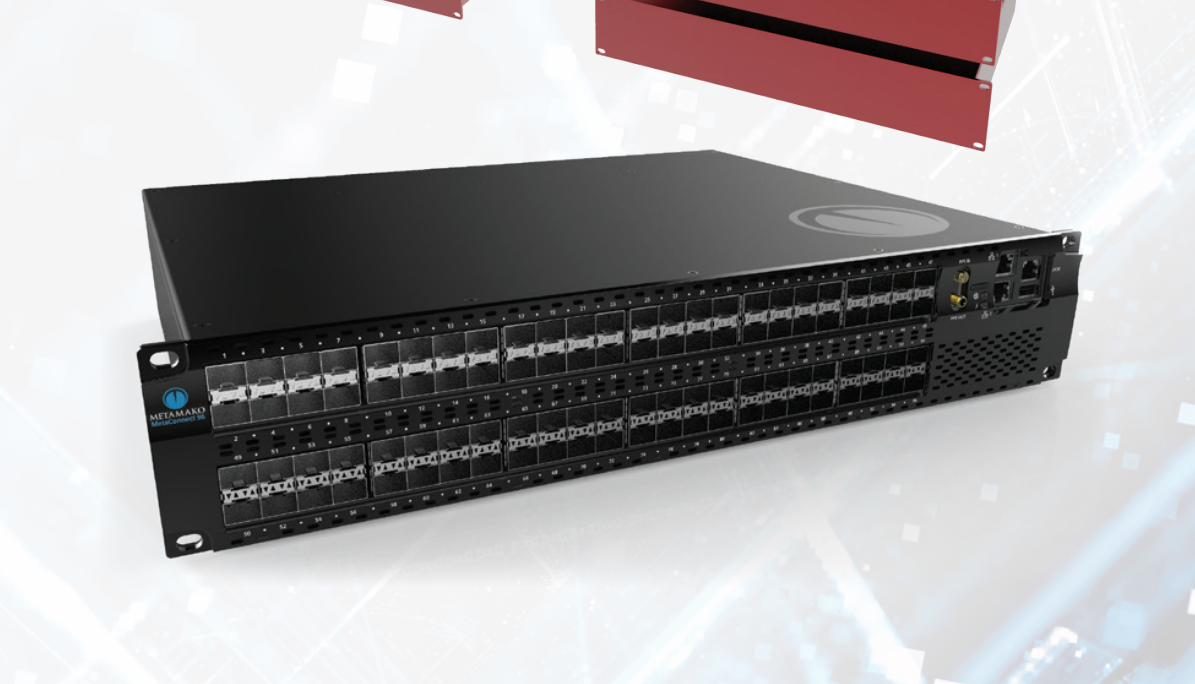

Arista DCS-7130-48LS-F | 7130LS 48-Port 10G SFP+ FPGA Switch, VU7P-2, Front-to-Rear

SKU:DCS-7130-48LS-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7130LS Series 48-port switch is a Layer 1+ FPGA platform built for ultra-low-latency trading, market data distribution and high-precision network monitoring. It combines a Xilinx Virtex UltraScale+ VU7P Speed Grade 2 FPGA with an onboard quad-core x86 server, so Arista, partner or custom applications can run alongside deterministic Layer 1 forwarding.

This SKU provides 48 SFP+ ports supporting 100M to 11.3Gbps, plus 2 x RJ45 ports. Layer 1 forwarding latency is 5 ns, with MetaMux latency of 43 ns and MultiAccess latency of 55 ns. It carries 32GB DDR, 8GB system RAM, a 64GB onboard SSD and an OCXO clock. The 1U chassis uses front-to-rear airflow, with 2 x AC hot-swap power supplies and 2 x hot-swap fan trays, both in 1+1 redundancy, and a maximum power draw of 430W.

The SFP+ ports accept 10GBASE-CR DAC cables, SR, LR, ER and DWDM optics, and 1000BASE-T RJ45 SFP modules. MetaWatch, ExchangeApp, MetaProtect and the FPGA Dev Kit are supported on this model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Deterministic nanosecond-level Layer 1 forwarding with less than 100 ps jitter
- Non-blocking architecture with the same latency for 1:N port mirroring
- Full signal recovery and regeneration with bit-for-bit forwarding for any protocol
- Media conversion between different media types running at the same rate
- Dynamic patching and ad-hoc tapping without rewiring
- Layer 1+ packet statistics on every port with an embedded influxdb database
- Eye diagram monitoring, tcpdump on every port and LLDP topology discovery
- Linux-based platform with industry-standard CLI and JSON RPC API
- Integrated FPGA available to Arista, partner and custom applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP+, 2 x RJ45
- Port speed: 100M to 11.3Gbps
- FPGA: Xilinx Virtex UltraScale+ VU7P Speed Grade 2
- Layer 1 latency: 5 ns
- MetaMux latency: 43 ns
- MultiAccess latency: 55 ns
- DRAM: 32GB DDR
- System memory: 8GB RAM
- On-board SSD: 64GB
- CPU: Quad-core x86
- Clock: OCXO
- Internal 10G ports: 2
- Management ports: 2 x 100/1000
- USB ports: 1
- PPS input: 1 (5V TTL, 50 ohm)
- PPS output: 1 (5V TTL)
- Serial console: 1 x RS-232 (RJ-45)
- Power supplies: 2 x AC hot-swap (1+1 redundant)
- Fan trays: 2 hot-swappable (1+1 redundant)
- Airflow: Front-to-rear
- Maximum power draw: 430W
- Rack units: 1U
- Dimensions (WxHxD): 44.8 x 4.3 x 37.9 cm
- Weight: 9kg
- Operating temperature: 0 to 40 C
- Relative humidity: 10% to 85% non-condensing
- Maximum altitude: 2,000m

FAQs

Q: Which Arista applications does this model support?
A: MetaWatch, ExchangeApp, MetaProtect and the FPGA Dev Kit (FDK) are supported. SwitchApp and the Vitis Dev Kit (VDK) are not supported on the 7130-48LS.

Q: Which optics and cables work in the SFP+ ports?
A: The ports support 10GBASE-CR DAC cables from 0.5m to 5m, plus 10GBASE-SR, LR, ER and DWDM optics and 1000BASE-T RJ45 SFP modules. Genuine SRL and LRL optics are also listed.

Q: What airflow and power configuration is this SKU?
A: It uses front-to-rear airflow with 2 x AC hot-swap power supplies in a 1+1 redundant arrangement. Maximum power draw is 430W.

Q: What spare parts match this airflow direction?
A: The matching spare fan module is FAN-7130-1U-F. Matching spare power supplies are PWR-500AC-F (AC) and PWR-500-DC-F (DC).

Q: What is the Layer 1 forwarding latency?
A: Layer 1 forwarding latency is 5 ns. MetaMux adds 43 ns and MultiAccess 55 ns.
