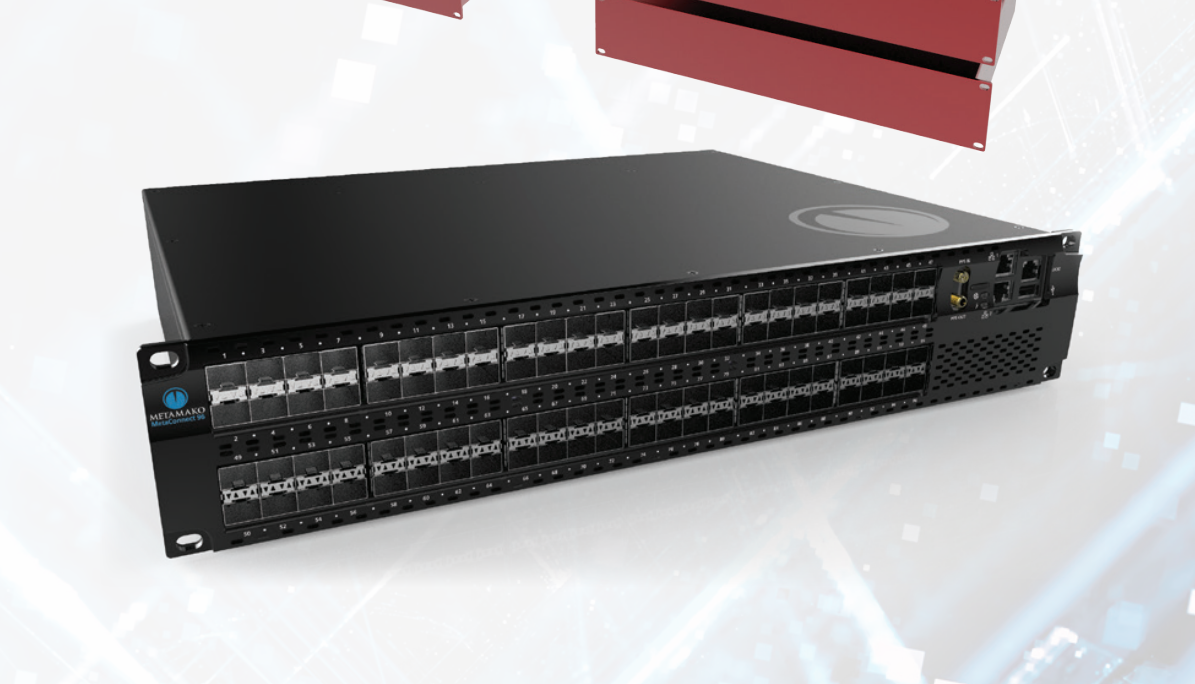

Arista DCS-7130-48LAS-F | 7130 48-Port 10G SFP+ FPGA Switch, VU7P-2, Atomic Clock

SKU:DCS-7130-48LAS-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7130LS Series is a Layer 1+ FPGA switch built for ultra-low-latency trading, market data fan-out and aggregation, network monitoring with precise timestamping, and custom FPGA application development. This 48LAS model carries a Xilinx Virtex UltraScale+ VU7P Speed Grade 2 FPGA and an atomic clock in a 1U chassis.

It provides 48 SFP+ ports supporting 100M to 11.3Gbps, plus 2 RJ45 ports. Layer 1 latency is 5 ns with jitter under 100 ps, MetaMux latency is 43 ns and MultiAccess latency is 55 ns. The platform has 32GB DDR, 8GB system RAM, a 64GB on-board SSD and a quad-core x86 CPU. This SKU uses front-to-rear airflow with two hot-swap AC power supplies and two hot-swap fan trays, both in 1+1 redundancy, with a maximum power draw of 430W. MetaWatch, MetaMux, MultiAccess, MetaProtect Firewall and ExchangeApp are supported, along with the FPGA Dev Kit.

The SFP+ ports accept 1000BASE-T, 10GBASE-CR, SR, SRL, LR, LRL, ER and DWDM optics, as well as 40GBASE-CR4 cabling. The switch runs Arista MOS and/or EOS.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 1+ switching with 5 ns deterministic latency
- Signal regeneration and media conversion
- Port mirroring with the same latency for 1:N replication
- Dynamic patching and link management, with ad-hoc tapping without rewiring
- Layer 1+ packet statistics on every port
- Embedded influxdb database, eye diagram, tcpdump on every port and LLDP
- Full SFP+ diagnostics including light levels, temperature and voltage
- Linux-based platform with industry-standard CLI and JSON RPC API
- Built-in application framework for deploying custom FPGA applications
- Non-blocking, bit-for-bit forwarding for any protocol

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP+ (100M to 11.3Gbps), 2 x RJ45
- FPGA: Xilinx Virtex UltraScale+ VU7P Speed Grade 2
- Clock: Atomic
- Layer 1 latency: 5 ns
- Jitter: less than 100 ps
- MetaMux latency: 43 ns
- MultiAccess latency: 55 ns
- DRAM: 32GB DDR
- System memory: 8GB RAM
- On-board SSD: 64GB
- CPU: Quad-core x86
- Internal 10G ports: 2
- Management ports: 2 x 100/1000
- USB ports: 1
- PPS input: 1 (5V TTL, 50 ohm)
- PPS output: 1 (5V TTL)
- Serial console: 1 x RS-232 (RJ-45)
- Power supplies: 2 x hot-swap AC (1+1 redundant)
- Fan trays: 2 x hot-swap (1+1 redundant)
- Airflow: Front-to-rear
- Maximum power draw: 430W
- Rack units: 1U
- Dimensions (W x H x D): 44.8 x 4.3 x 37.9 cm
- Weight: 9 kg
- Operating temperature: 0 to 40 C
- Relative humidity: 10% to 85% non-condensing
- Maximum altitude: 2,000m

FAQs

Q: Which Arista FPGA applications does this model support?
A: MetaWatch, MetaMux, MultiAccess, MetaProtect Firewall and ExchangeApp are supported, along with the FPGA Dev Kit. SwitchApp and the Vitis Dev Kit are not supported on this model.

Q: What power supplies does it use?
A: It uses two hot-swap AC power supplies in a 1+1 redundant arrangement, with a maximum power draw of 430W. The 7130-48 models use the PWR-460AC (100-240V AC) power supply, and a DC variant, the PWR-460DC, is also available.

Q: Which optics and cables work in the SFP+ ports?
A: The ports support 1000BASE-T, 10GBASE-CR, SR, SRL, LR, LRL, ER and DWDM optics, as well as 40GBASE-CR4 cabling. Range runs from 0.5m for copper twinax up to 80km for DWDM.

Q: What is the airflow direction on this SKU?
A: This SKU uses front-to-rear airflow, matched by the FAN-7130-1U-F fan module.

Q: Which operating system does it run?
A: It is a Linux-based platform running Arista MOS and/or EOS, with an industry-standard CLI and a JSON RPC API for automation.
