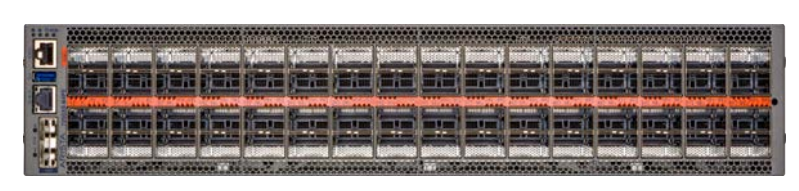

Arista DCS-7060X6-64PE-F | 7060X6 64-Port 800G OSFP Switch, 2RU, Front-to-Rear

SKU:DCS-7060X6-64PE-F

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7060X6 is a fixed-configuration 2RU data centre switch built for AI/ML back-end and front-end fabrics and large leaf and spine networks. It runs Arista EOS and delivers wire-speed Layer 2 and Layer 3 forwarding across 64 x 800GbE OSFP ports plus 2 SFP+ ports.

This DCS-7060X6-64PE-F variant provides 51.2 Tbps of switching capacity and up to 21.2 billion packets per second, with latency from 700 ns and a 165 MB shared packet buffer. Each OSFP port supports 800, 400, 200 or 100GbE, and breakout gives up to 320 interfaces. Power comes from 2 x 2400W AC hot-swap supplies in a 1+1 configuration, with N+1 hot-swap fans and front-to-rear airflow. Typical power draw is under 16 W per 800G port.

The OSFP ports accept industry-standard OSFP optics and cables, including Linear Pluggable Optics (LPO), and support 2x400G and 800G optics for GPU connectivity. The removable, field-replaceable supervisor uses DCS-7001-SUP-A, and the switch can sit alongside the Arista 7800R3 modular portfolio under a common EOS.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- AI/ML features including RoCEv2, packet spraying, Dynamic Load Balancing, Cluster Load Balancing and advanced DCQCN
- PFC/ECN congestion control with AI Analyzer and LANZ microburst detection
- Flow-aware traffic scheduling
- DirectFlow and eAPI programmability
- Workload and NIC integration
- Tool-less rails for simple installation
- Automation of optimised designs through CloudVision
- Can be deployed alongside the Arista 7800R3 modular portfolio under a single consistent EOS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 64 x OSFP 800G + 2 x SFP+
- Port speeds: 800 GbE, 400 GbE, 200 GbE or 100 GbE
- Maximum interfaces: up to 320 via breakout
- Switching capacity: 51.2 Tbps
- Forwarding rate: up to 21.2 billion packets per second
- Latency: from 700 ns
- Packet buffer: 165 MB shared
- MAC addresses: up to 136K
- IPv4 routes: over 860K
- IPv6 routes: over 500K
- ECMP: 128-way
- Typical power per 800G port: under 16 W
- Power supplies: 2 x 2400W AC, 1+1 redundant, hot-swappable, over 96% efficient
- Fans: N+1 redundant, hot-swappable
- Airflow: front-to-rear
- Form factor: 2RU
- Supervisor: removable and field-replaceable (DCS-7001-SUP-A)
- Operating system: Arista EOS
- Optics support: includes Linear Pluggable Optics (LPO)

FAQs

Q: What operating system does the 7060X6 run?
A: It runs Arista EOS, the same operating system used across the Arista 7800R3 modular portfolio, so the two can be deployed together under one consistent software image.

Q: What power and airflow does the DCS-7060X6-64PE-F use?
A: It has 2 x 2400W AC hot-swap power supplies in a 1+1 redundant configuration, with N+1 hot-swap fans. The -F suffix denotes front-to-rear airflow.

Q: What optics and modules does it work with?
A: The 64 OSFP ports accept industry-standard OSFP optics and cables, including Linear Pluggable Optics (LPO), and support 2x400G and 800G optics for GPU connectivity. The 2 SFP+ ports take SFP+ modules.

Q: Can the ports run at speeds below 800G?
A: Yes. Each OSFP port supports 800, 400, 200 or 100GbE, and breakout gives up to 320 interfaces in total.

Q: Is the supervisor replaceable?
A: Yes. The supervisor is removable and field-replaceable, and the ordering SKU is DCS-7001-SUP-A. It is reached by removing the two right-most fan units.
