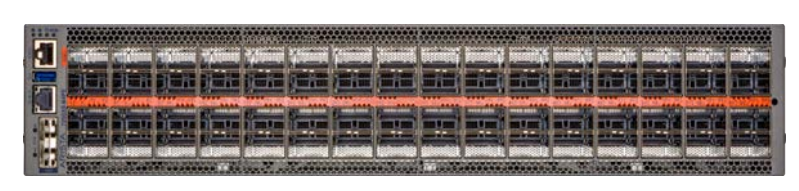

• Gray arista dcs-7060x6-64pe-b-n-f 7060x6 switch with orange stripe and multiple ports on front panel
1 1

Arista

Arista DCS-7060X6-64PE-B-F | 7060X6 64-Port 800G Data Center Switch, 51.2 Tbps, 2RU

DCS-7060X6-64PE-B-F

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Arista DCS-7060X6-64PE-B-F is a high-density 800G data center switch delivering 64 OSFP ports and 51.2 Tbps non-blocking switching capacity in a 2RU form factor. Engineered for AI/ML clusters, hyperscale leaf-spine architectures, and high-performance storage networks, it features 165 MB shared packet buffer, 700 ns ultra-low latency, and a field-replaceable supervisor card for extended platform lifecycle. Powered by Arista EOS, it supports dynamic buffer allocation, advanced DCQCN for lossless Ethernet, and flexible breakout configurations down to 100G.

Features

64 x 800GbE OSFP ports delivering 51.2 Tbps non-blocking, line-rate switching across all ports simultaneously
- 165 MB shared packet buffer with Dynamic Buffer Allocation for superior burst absorption in AI/ML and storage workloads
- 700 ns cut-through latency for consistent, low-jitter performance at 800G line rate
- Flexible port breakout: 512 x 100G, 512 x 50G, 256 x 200G, or 128 x 400G via breakout cables
- Removable and field-replaceable supervisor card (DCS-7001-SUP-A) for extended platform lifecycle without chassis replacement
- Advanced DCQCN (Data Center Quantized Congestion Notification) for lossless Ethernet under congestion
- Packet Spraying for load-aware traffic steering and improved ECMP utilization in AI clusters
- AI Analyzer with 100 µs ECMP utilization tracking for real-time network visibility
- Arista EOS: modular switch operating system with state-sharing architecture for in-service software upgrades
- Full Layer 2 and Layer 3 feature set: VLANs (4,000+), VRF-lite, large-scale MAC/FIB tables, VXLAN gateway
- VXLAN routing and bridging with wire-speed gateway between VXLAN and traditional L2/L3 environments
- Advanced management: SSH-2, Telnet, CLI, SNMP, RESTful API, Zero Touch Provisioning (ZTP)
- CloudVision integration for network-wide orchestration, workflow automation, and telemetry streaming
- Hot-swappable redundant power supplies (1+1 redundancy) and fans (N+1 redundancy) for continuous uptime
- Support for load balancing, port mirroring, Quality of Service (QoS), and priority flow control
- Linear Pluggable Optics (LPO) ready for future-proof optics compatibility and reduced power consumption

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

64 x 800GbE OSFP ports + 2 x SFP+ (1/10GbE) data plane ports
- Switching capacity: 51.2 Tbps full-duplex, non-blocking / 102.4 Tbps aggregate
- Forwarding rate: 21.2 billion packets per second (Bpps)
- Packet buffer: 165 MB shared with Dynamic Buffer Allocation
- Latency: 700 ns cut-through at 800G
- Port breakout support: up to 512 x 100G, 256 x 200G, 128 x 400G
- MAC address table: 500,000 entries
- Form factor: 2RU rackmount, 44 x 8.79 x 60.7 cm (17.32 x 3.46 x 23.9 inches)
- Weight: 20.86 kg (46 lbs)
- Dual redundant hot-swappable power supplies: 2400W each (PWR-2421 HV-AC/DC-RED or PWR-2411-MC-RED)
- Power consumption: 640W typical / 2218W maximum
- Front-to-rear airflow (B-F designation)
- 4 x FAN-7021H-RED hot-swappable fans (N+1 redundant)
- Removable supervisor card: DCS-7001-SUP-A (field-replaceable)
- Operating temperature: 0°C to 40°C
- Management: CLI, SSH-2, Telnet, 1 x 10/100/1000 Ethernet, RS-232 serial console (RJ-45), USB
- Optics support: 800GBASE-SR8, DR8, XDR, FR8, OSFP DAC/AOC, Linear Pluggable Optics (LPO) ready

FAQs

Q: What is the difference between the DCS-7060X6-64PE-B-F and DCS-7060X6-64PE-F models?
A: The B revision designates an enhanced variant with improved port breakout capabilities, offering up to 512 x 100G or 512 x 50G breakout compared to 320 ports in the standard F model. Both feature front-to-rear airflow and identical switching capacity of 51.2 Tbps. The B-F model is optimized for deployments requiring maximum flexibility in port density and speed configurations.

Q: Is this switch suitable for AI/ML and GPU cluster deployments?
A: Yes, the DCS-7060X6-64PE-B-F is purpose-built for AI/ML workloads. It features a 165 MB shared packet buffer with Dynamic Buffer Allocation for burst absorption, Advanced DCQCN for lossless Ethernet under congestion, packet spraying for load-aware traffic steering, and 700 ns ultra-low latency to maximize GPU cluster efficiency. The 51.2 Tbps throughput supports high-density back-end AI cluster interconnects and storage networks.

Q: What is the benefit of the removable supervisor card architecture?
A: The field-replaceable supervisor card (DCS-7001-SUP-A) allows hardware upgrades and repairs without replacing the entire chassis, reducing capital expenditure and extending the platform lifecycle. This modular design lowers total cost of ownership and minimizes downtime for maintenance, as the supervisor can be accessed by removing the two right-most fan units.

Q: What optics and cables are compatible with the 800G OSFP ports?
A: The DCS-7060X6-64PE-B-F supports industry-standard 800GBASE-SR8, DR8, XDR, FR8 optics, proprietary 800G OSFP DAC and AOC cables, and is Linear Pluggable Optics (LPO) ready for future compatibility. It also supports flexible breakout configurations to 400G, 200G, 100G, and 50G speeds via appropriate breakout cables and optics. A full compatibility list is available at arista.com/transceivers-cables.

Q: Does the DCS-7060X6-64PE-B-F require additional software licenses?
A: The Arista 7060X6 series runs Arista EOS software. License requirements depend on the features and subscription services required for your deployment, such as CloudVision integration, advanced Layer 3 features, and support contracts. Contact an authorized Arista partner or distributor for detailed licensing information specific to your use case.
