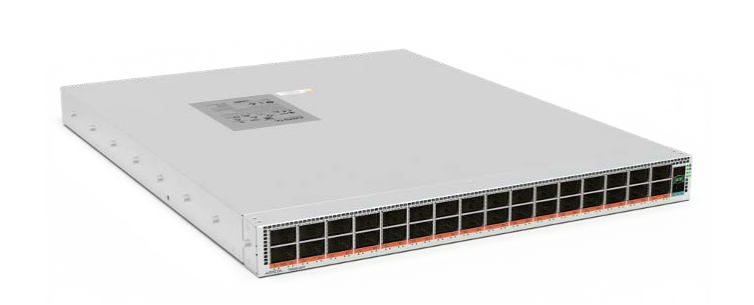

• Arista dcs-7060x6-32pe-f silver metal 32-port 800g data center switch with black ethernet ports and orange indicator lights
1 1

Arista

Arista DCS-7060X6-32PE-F | 7060X6 32-Port 800G Data Center Switch, 25.6 Tbps

DCS-7060X6-32PE-F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista DCS-7060X6-32PE-F is a high-performance 1RU data center switch with 32 native 800GbE OSFP ports delivering 25.6 Tbps of non-blocking throughput. Purpose-built for AI/ML clusters, high-performance computing, and storage network aggregation, it features an 84 MB shared packet buffer, 700 ns cut-through latency, and a field-removable supervisor card for enhanced serviceability. The -F suffix indicates front-to-rear airflow for standard hot-aisle/cold-aisle deployments.

Features

Arista EOS modular operating system with state-sharing architecture and Linux kernel foundation
- Layer 2 features: IEEE 802.1Q VLAN tagging, IEEE 802.1ad Q-in-Q, STP/RSTP/MSTP, IGMP snooping, link aggregation (LACP)
- Layer 3 features: BGP, OSPF, IS-IS, static routing, ECMP, VRF-Lite, policy-based routing
- VXLAN routing and bridging with wire-speed gateway functionality between VXLAN and traditional L2/L3 environments
- Dynamic Load Balancing (DLB): Real-time ECMP path selection based on port and queue utilization for AI workloads
- Cluster Load Balancing (CLB): Coordinated switch-level load distribution optimized for NVIDIA NCCL and OpenMPI frameworks
- Advanced DCQCN congestion control for RoCEv2 preventing PFC back-pressure cascades
- Multi-chassis Link Aggregation (MLAG) for redundancy and enhanced availability
- Hot-swappable redundant power supplies and N+1 fan redundancy
- Comprehensive telemetry and monitoring: sFlow, NetFlow, LANZ (Latency Analyzer), advanced event logging
- Zero Touch Provisioning (ZTP) for automated deployment
- Management protocols: CLI, SNMP v1/v2c/v3, SSH-2, Telnet, RESTCONF, gRPC, gNMI, OpenConfig
- CloudVision integration for network-wide orchestration, workload automation, and template-driven configuration
- Arista Validated Designs (AVD) support for best-practice configuration deployment
- Linear Pluggable Optics (LPO) support for simplified optics management and lower power consumption
- Field-removable supervisor card architecture for extended platform lifecycle and reduced downtime

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1RU rackmount
- Port Configuration: 32 × 800GbE OSFP ports + 2 × SFP+ (1/10GbE data plane)
- Management Ports: 1 × 10/100/1000 Ethernet, 1 × RS-232 serial console (RJ-45), 1 × USB
- Port Flexibility: Supports 800G, 400G (64 ports via breakout), 200G (128 ports), 100G (160 ports), 50G, 40G, 25G, and 10GbE modes
- Switching Capacity: 25.6 Tbps full-duplex non-blocking / 51.2 Tbps aggregate
- Forwarding Rate: 10.6 billion packets per second (Bpps)
- Latency: 700 ns cut-through
- Packet Buffer: 84 MB shared dynamic buffer
- System Memory: 32 GB
- Flash Storage: 240 GB
- Dimensions (W × H × D): 48.3 × 4.4 × 55.2 cm (19 × 1.7 × 21.7 inches)
- Weight: 13.2 kg (29.2 lbs)
- Power Supply: PWR-2011-AC-RED (redundant, hot-swappable)
- Cooling: FAN-7011H-F (front-to-rear airflow), N+1 fan redundancy
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Humidity: 5% to 90% non-condensing
- Optics Support: 800GBASE-SR8, DR8, XDR, FR8, 800G OSFP DAC/AOC, Linear Pluggable Optics (LPO)
- MAC Address Table: 500,000 entries
- ACLs: 256,000 entries

FAQs

Q: What is the primary use case for the DCS-7060X6-32PE-F?
A: This switch is purpose-built for AI/ML cluster deployments, high-performance computing (HPC) environments, storage network aggregation, and data center spine/leaf architectures requiring 800G native connectivity. Its 84 MB shared buffer and low 700 ns latency make it ideal for synchronized GPU all-reduce operations and burst-heavy AI workloads.

Q: What does the -F suffix indicate in the model number?
A: The -F suffix denotes front-to-rear (forward) airflow, which is the standard configuration for traditional hot-aisle/cold-aisle data center designs where cool air is supplied from the front of the rack and exhausted to the rear.

Q: Can this switch support lower-speed interfaces for migration scenarios?
A: Yes, each OSFP port supports flexible breakout configurations allowing speeds from 800G down to 10G per port. This enables gradual migration from legacy 100G/200G/400G infrastructure to 800G while maintaining consistent switching platforms across the network.

Q: What is the field-removable supervisor card feature?
A: The 7060X6-32PE features a removable supervisor card (DCS-7001-SUP-A) that can be field-replaced without swapping the entire switch chassis. This extends platform lifecycle, reduces downtime during upgrades, and lowers total cost of ownership by allowing hardware refresh of the control plane independently.

Q: Is licensing required for core switching features?
A: The base Arista EOS feature set comes bundled with the switch, including Layer 2/Layer 3 forwarding, VXLAN, BGP, OSPF, and standard management protocols. Advanced features such as CloudVision integration and specialized software capabilities may require optional feature licenses or subscription-based CloudVision access.
